一、环境准备

①服务器要求：

• 建议最小硬件配置：4核CPU、4G内存、50G硬盘

• 服务器最好可以访问外网，需要从网上拉取镜像需求

②软件环境：

软件	版本
操作系统	CentOS7.6_x64
Docker	23.0.3
Kubernetes	1.25以上

③服务器规划：

角色	IP	组件
Master	192.168.137.101	docker，etcd，nginx，keepalived
node1	192.168.137.102	docker，etcd，nginx，keepalived
node1	192.168.137.103	docker，etcd
负载均衡器对外IP	192.168.137.88 (VIP)

④操作系统初始化配置 ：

# 关闭防火墙

systemctl stop firewalld

systemctl disable firewalld

# 关闭selinux

sed -i 's/enforcing/disabled/' /etc/selinux/config#

setenforce 0# 临时

# 关闭swap

swapoff -a# 临时

sed -ri 's/.*swap.*/#&/' /etc/fstab#

# 根据规划设置主机名

hostnamectl set-hostname

# 在master添加hosts

cat >> /etc/hosts << EOF

192.168.137.101 master

192.168.137.102 node1

192.168.137.103 node2

EOF

# 将桥接的IPv4流量传递到iptables的链

cat > /etc/sysctl.d/k8s.conf << EOF

net.bridge.bridge-nf-call-ip6tables = 1

net.bridge.bridge-nf-call-iptables = 1

EOF

sysctl --system# 生效

# 时间同步

yum install ntpdate -y

ntpdate time.windows.com

二、部署Keepalived负载均衡器

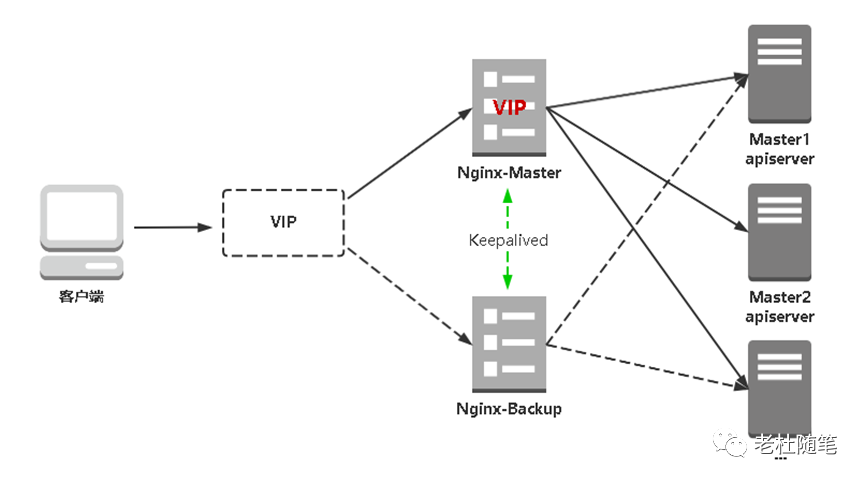

①架构图：

②安装软件包（主/备）：--master node1

yum install epel-release -y
 yum install nginx keepalived –y

yum -y install nginx-all-modules.noarch

yum  search  stream

③Nginx配置文件（主/备一样）：

cat > /etc/nginx/nginx.conf << "EOF"

user nginx;

worker_processes auto;

error_log /var/log/nginx/error.log;

pid /run/nginx.pid;

include /usr/share/nginx/modules/*.conf;

events {

worker_connections 1024;

}

# 四层负载均衡，为两台Master apiserver组件提供负载均衡

stream {

log_format main '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';

access_log /var/log/nginx/k8s-access.log main;

upstream k8s-apiserver {

server 192.168.137.101:6443; # master APISERVER IP:PORT

server 192.168.137.102:6443; # node1 APISERVER IP:PORT

}

server {

listen 16443; # 由于nginx与master节点复用，这个监听端口不能是6443，否则会冲突

proxy_pass k8s-apiserver;

}

http {

log_format main '$remote_addr - $remote_user [$time_local] "$request" '

'$status $body_bytes_sent "$http_referer" '

'"$http_user_agent" "$http_x_forwarded_for"';

access_log /var/log/nginx/access.log main;

sendfile on;

tcp_nopush on;

tcp_nodelay on;

keepalive_timeout 65;

types_hash_max_size 2048;

include /etc/nginx/mime.types;

default_type application/octet-stream;

server {

listen 80 default_server;

server_name _;

location / {

}

EOF

④keepalived配置文件（Nginx Master）

cat > /etc/keepalived/keepalived.conf << EOF

global_defs {

notification_email {

acassen@firewall.loc

failover@firewall.loc

sysadmin@firewall.loc

}

notification_email_from Alexandre.Cassen@firewall.loc

smtp_server 127.0.0.1

smtp_connect_timeout 30

router_id NGINX_MASTER

}

vrrp_script check_nginx {

script "/etc/keepalived/check_nginx.sh"

}

vrrp_instance VI_1 {

state MASTER

interface ens33 # 修改为实际网卡名

virtual_router_id 51 # VRRP 路由 ID实例，每个实例是唯的

priority 100 # 优先级，备服务器设置 90 80

advert_int 1 # 指定VRRP 心跳包通告间隔时间，默认1秒

authentication {

auth_type PASS

auth_pass 1111

}

# 虚拟IP

virtual_ipaddress {

192.168.137.88/24

}

track_script {

check_nginx

}

EOF

准备上述配置文件中检查nginx运行状态的脚本：

cat > /etc/keepalived/check_nginx.sh<< "EOF"

#!/bin/bash

count=$(ss -antp |grep 16443 |egrep -cv "grep|$$")

if [ "$count" -eq 0 ];then

exit 1

else

exit 0

fi

EOF





chmod +x /etc/keepalived/check_nginx.sh

⑤keepalived配置文件（Nginx Backup node1）

cat > /etc/keepalived/keepalived.conf << EOF

global_defs {

notification_email {

acassen@firewall.loc

failover@firewall.loc

sysadmin@firewall.loc

}

notification_email_from Alexandre.Cassen@firewall.loc

smtp_server 127.0.0.1

smtp_connect_timeout 30

router_id NGINX_BACKUP

}

vrrp_script check_nginx {

script "/etc/keepalived/check_nginx.sh"

}

vrrp_instance VI_1 {

state BACKUP

interface ens33

virtual_router_id 51

priority 90 #注意优先级

advert_int 1

authentication {

auth_type PASS

auth_pass 1111

}

virtual_ipaddress {

192.168.137.88/24

}

track_script {

check_nginx

}

EOF

准备上述配置文件中检查nginx运行状态的脚本：

cat > /etc/keepalived/check_nginx.sh << "EOF"

#!/bin/bash

count=$(ss -antp |grep 16443 |egrep -cv "grep|$$")

if [ "$count" -eq 0 ];then

exit 1

else

exit 0

fi

EOF

chmod +x /etc/keepalived/check_nginx.sh

注：keepalived根据脚本返回状态码（0为工作正常，非0不正常）判断是否故障转移。

⑥启动并设置开机启动

systemctl daemon-reload

systemctl start nginx ; systemctl enable nginx

systemctl status nginx

systemctl start keepalived ; systemctl enable keepalived

systemctl status keepalived

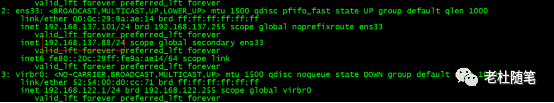

⑦查看keepalived工作状态

三、部署ETCD

Etcd 是一个分布式键值存储系统， Kubernetes使用Etcd进行数据存储，存在单点故障，生成环境建议不用，所以使用3台服务器组建集群，可容忍1台机器故障，生产环境建议使用5台组建集群，可容忍2台机器故障。

节点名称	IP
etcd-1	192.168.137.101
etcd-2	192.168.137.102
etcd-3	192.168.137.103

注：为了节省机器，这里与K8s节点机器复用。也可以独立于k8s集群之外部署，只要apiserver能连接到就行。

① 准备cfssl证书生成工具

cfssl是一个开源的证书管理工具，使用json文件生成证书，相比openssl更方便使用。

找任意一台服务器操作，这里用Master节点

wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
chmod +x cfssl_linux-amd64 cfssljson_linux-amd64 cfssl-certinfo_linux-amd64

cp cfssl_linux-amd64 /usr/local/bin/cfssl
cp cfssljson_linux-amd64 /usr/local/bin/cfssljson
cp cfssl-certinfo_linux-amd64 /usr/bin/cfssl-certinfo

②生成Etcd证书

1. 自签证书颁发机构（CA）

创建工作目录：

mkdir -p ~/etcd_tls
cd ~/etcd_tls

自签CA：

cat > ca-config.json << EOF



{



  "signing": {



    "default": {



      "expiry": "87600h"



    },



    "profiles": {



      "www": {



         "expiry": "87600h",



         "usages": [



            "signing",



            "key encipherment",



            "server auth",



            "client auth"



        ]



      }



    }



  }



}



EOF



cat > ca-csr.json << EOF



{



    "CN": "etcd CA",



    "key": {



        "algo": "rsa",



        "size": 2048



    },



    "names": [



        {



            "C": "CN",



            "L": "Beijing",



            "ST": "Beijing"



        }



    ]



}



EOF

生成证书：

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

会生成ca.pem和ca-key.pem文件。

2. 使用自签CA签发Etcd HTTPS证书

创建证书申请文件：

cat > server-csr.json << EOF



{



    "CN": "etcd",



    "hosts": [



    "192.168.137.101",



    "192.168.137.102",



    "192.168.137.103"，

"192.168.137.108"



    ],



    "key": {



        "algo": "rsa",



        "size": 2048



    },



    "names": [



        {



            "C": "CN",



            "L": "BeiJing",



            "ST": "BeiJing"



        }



    ]



}



EOF

注：上述文件hosts字段中IP为所有etcd节点的集群内部通信IP，一个都不能少！为了方便后期扩容可以多写几个预留的IP。

生成证书：

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=www server-csr.json | cfssljson -bare server

[root@master etcd_tls]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=www server-csr.json | cfssljson -bare server

2023/04/11 15:33:11 [INFO] generate received request

2023/04/11 15:33:11 [INFO] received CSR

2023/04/11 15:33:11 [INFO] generating key: rsa-2048

2023/04/11 15:33:11 [INFO] encoded CSR

2023/04/11 15:33:11 [INFO] signed certificate with serial number 235546312759917573050767132915661129942079532969

2023/04/11 15:33:11 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for

websites. For more information see the Baseline Requirements for the Issuance and Management

of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);

specifically, section 10.2.3 ("Information Requirements").

会生成server.pem和server-key.pem文件。

③ 部署Etcd集群

下载地址： https://github.com/etcd-io/etcd/releases/download/v3.4.9/etcd-v3.4.9-linux-amd64.tar.gz

以下在节点1上操作，为简化操作，待会将节点1生成的所有文件拷贝到节点2和节点3。

1. 创建工作目录并解压二进制包

mkdir /opt/etcd/{bin,cfg,ssl} -p
tar zxvf etcd-v3.4.9-linux-amd64.tar.gz
mv etcd-v3.4.9-linux-amd64/{etcd,etcdctl} /opt/etcd/bin/

2. 创建etcd配置文件

cat > /opt/etcd/cfg/etcd.conf << EOF



#[Member]



ETCD_NAME="etcd-1"



ETCD_DATA_DIR="/var/lib/etcd/default.etcd"



ETCD_LISTEN_PEER_URLS="https://192.168.137.101:2380"



ETCD_LISTEN_CLIENT_URLS="https://192.168.1.101:2379"







#[Clustering]



ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.137.101:2380"



ETCD_ADVERTISE_CLIENT_URLS="https://192.168.137.101:2379"



ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.137.101:2380,etcd-2=https://192.168.137.102:2380,etcd-3=https://192.168.137.103:2380"



ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"



ETCD_INITIAL_CLUSTER_STATE="new"



EOF

•ETCD_NAME：节点名称，集群中（注意）

•ETCD_INITIAL_CLUSTER_STATE：加入集群的当前状态，new是新集群，existing表示加入已有集群

3. systemd管理etcd

cat > /usr/lib/systemd/system/etcd.service << EOF



[Unit]



Description=Etcd Server



After=network.target



After=network-online.target



Wants=network-online.target







[Service]



Type=notify



EnvironmentFile=/opt/etcd/cfg/etcd.conf



ExecStart=/opt/etcd/bin/etcd \



--cert-file=/opt/etcd/ssl/server.pem \



--key-file=/opt/etcd/ssl/server-key.pem \

--trusted-ca-file=/opt/etcd/ssl/ca.pem \



--peer-cert-file=/opt/etcd/ssl/server.pem \



--peer-key-file=/opt/etcd/ssl/server-key.pem \



--peer-trusted-ca-file=/opt/etcd/ssl/ca.pem \



--logger=zap



Restart=on-failure



LimitNOFILE=65536








[Install]



WantedBy=multi-user.target



EOF

4. 拷贝刚才生成的证书

把刚才生成的证书拷贝到配置文件中的路径：

cp ~/etcd_tls/ca*pem ~/etcd_tls/server*pem /opt/etcd/ssl/

5. 启动并设置开机启动

systemctl daemon-reload
systemctl start etcd
systemctl enable etcd

6. 将上面节点1所有生成的文件拷贝到节点2和节点3

scp -r /opt/etcd/ root@192.168.137.102:/opt/
scp /usr/lib/systemd/system/etcd.service root@192.168.137.102:/usr/lib/systemd/system/

scp -r /opt/etcd/ root@192.168.137.103:/opt/
scp /usr/lib/systemd/system/etcd.service root@192.168.1.103:/usr/lib/systemd/system/

然后在节点2和节点3分别修改etcd.conf配置文件中的节点名称和当前服务器IP：

vi /opt/etcd/cfg/etcd.conf



#[Member]



ETCD_NAME="etcd-1"   # 修改此处，节点2改为etcd-2，节点3改为etcd-3



ETCD_DATA_DIR="/var/lib/etcd/default.etcd"



ETCD_LISTEN_PEER_URLS="https://192.168.137.101:2380"   # 修改此处为当前服务器IP



ETCD_LISTEN_CLIENT_URLS="https://192.168.137.101:2379" # 修改此处为当前服务器IP







#[Clustering]



ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.137.101:2380" # 修改此处为当前服务器IP



ETCD_ADVERTISE_CLIENT_URLS="https://192.168.137.101:2379" # 修改此处为当前服务器IP



ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.137.101:2380,etcd-2=https://192.168.137.102:2380,etcd-3=https://192.168.137.103:2380"



ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"



ETCD_INITIAL_CLUSTER_STATE="new"

最后启动etcd并设置开机启动。

7. 查看集群状态

[root@master etcd_tls]#

[root@master etcd_tls]# ETCDCTL_API=3 /opt/etcd/bin/etcdctl --cacert=/opt/etcd/ssl/ca.pem --cert=/opt/etcd/ssl/server.pem --key=/opt/etcd/ssl/server-key.pem --endpoints="https://192.168.137.101:2379,https://192.168.137.102:2379,https://192.168.137.103:2379" endpoint health --write-out=table

+------------------------------+--------+-------------+-------+

+------------------------------+--------+-------------+-------+

+------------------------------+--------+-------------+-------+

如果有问题第一步先看日志：/var/log/message 或 journalctl -u etcd

四、部署docker、kubelet等组件（所有节点）

①安装Docker

wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
yum -y install docker-ce
systemctl enable docker && systemctl start docker

配置镜像下载加速器：

cat > /etc/docker/daemon.json << EOF

  "registry-mirrors": ["https://b9pmyelo.mirror.aliyuncs.com"],

  "exec-opts": ["native.cgroupdriver=systemd"]

}
EOF

systemctl restart docker
docker info

② 安装cri-dockerd

k8s从1.24版本开始移除了dockershim，所以需要安装cri-docker插件才能使用docker

https://github.com/Mirantis/cri-dockerd/releases/tag/v0.3.1

rpm -ivh cri-dockerd-0.3.1-3.el7.x86_64.rpm

指定依赖镜像地址：

vi /usr/lib/systemd/system/cri-docker.service

ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd:// --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.7

systemctl daemon-reload

systemctl enable cri-docker && systemctl start cri-docker

③添加阿里云YUM软件源

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

④ 安装kubeadm，kubelet和kubectl

由于版本更新频繁，这里指定版本号部署：

yum install -y kubelet-1.25.0 kubeadm-1.25.0 kubectl-1.25.0
systemctl enable kubelet

五、部署master

① 初始化Master1

生成初始化配置文件：

cat > kubeadm-config.yaml << EOF
apiVersion: kubeadm.k8s.io/v1beta3

bootstrapTokens:

- groups:

- system:bootstrappers:kubeadm:default-node-token

token: abcdef.0123456789abcdef

ttl: 24h0m0s

usages:

- signing

- authentication

kind: InitConfiguration

localAPIEndpoint:

advertiseAddress: 192.168.137.101

bindPort: 6443

nodeRegistration:

criSocket: unix:///var/run/cri-dockerd.sock

name: master

taints:

- effect: NoSchedule

key: node-role.kubernetes.io/master

---

apiServer:

certSANs:

- master

- node1

- node2

- 192.168.137.101

- 192.168.137.102

- 192.168.137.103

- 192.168.137.88

- 127.0.0.1

extraArgs:

authorization-mode: Node,RBAC

timeoutForControlPlane: 4m0s

apiVersion: kubeadm.k8s.io/v1beta3

certificatesDir: /etc/kubernetes/pki

clusterName: kubernetes

controlPlaneEndpoint: 192.168.137.88:16443

controllerManager: {}

dns: {}

etcd:

external:

endpoints:

- https://192.168.137.101:2379

- https://192.168.137.102:2379

- https://192.168.137.103:2379

caFile: /opt/etcd/ssl/ca.pem

certFile: /opt/etcd/ssl/server.pem

keyFile: /opt/etcd/ssl/server-key.pem

imageRepository: registry.aliyuncs.com/google_containers

kind: ClusterConfiguration

kubernetesVersion: 1.25.0

networking:

dnsDomain: cluster.local

podSubnet: 10.244.0.0/16

serviceSubnet: 10.96.0.0/12

scheduler: {}

EOF

kubeadm init --config kubeadm-config.yaml
...
Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

mkdir -p $HOME/.kube

sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config

sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.

Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:

https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of control-plane nodes by copying certificate authorities

and service account keys on each node and then running the following as root:

kubeadm join 192.168.137.88:16443 --token abcdef.0123456789abcdef \

--discovery-token-ca-cert-hash sha256:8a300ce8e8b5969d574c6d82fd199880eb60147a559bc08118636b0f0dde3b70 \

--control-plane

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.137.88:16443 --token abcdef.0123456789abcdef \

--discovery-token-ca-cert-hash sha256:8a300ce8e8b5969d574c6d82fd199880eb60147a559bc08118636b0f0dde3b70

初始化完成后，会有两个join的命令，带有 --control-plane 是用于加入组建多master集群的，不带的是加入节点的。

拷贝kubectl使用的连接k8s认证文件到默认路径：

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

kubectl get node

②初始化node1

将Master节点生成的证书拷贝到node1：

 scp -r /etc/kubernetes/pki/ 192.168.137.102:/etc/kubernetes/

复制加入master join命令在node1执行：

  kubeadm join 192.168.137.88:16443 --token abcdef.0123456789abcdef \

        --discovery-token-ca-cert-hash sha256:8a300ce8e8b5969d574c6d82fd199880eb60147a559bc08118636b0f0dde3b70 \

        --control-plane  --cri-socket=unix:///var/run/cri-dockerd.sock

拷贝kubectl使用的连接k8s认证文件到默认路径：

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

kubectl get node

注：由于网络插件还没有部署，还没有准备就绪 NotReady

③初始化node2

在192.168.137.103（Node2）执行。

向集群添加新节点，执行在kubeadm init输出的kubeadm join命令：

kubeadm join 192.168.137.88:16443 --token abcdef.0123456789abcdef \

        --discovery-token-ca-cert-hash sha256:8a300ce8e8b5969d574c6d82fd199880eb60147a559bc08118636b0f0dde3b70  --cri-socket=unix:///var/run/cri-dockerd.sock

后续其他节点也是这样加入。

注：默认token有效期为24小时，当过期之后，该token就不可用了。这时就需要重新创建token，可以直接使用命令快捷生成：kubeadm token create --print-join-command

六、部署网络组件

Calico是一个纯三层的数据中心网络方案，是目前Kubernetes主流的网络方案。

下载YAML：

wget https://docs.projectcalico.org/manifests/calico.yaml

下载完后还需要修改里面定义Pod网络（CALICO_IPV4POOL_CIDR），与前面kubeadm init的 --pod-network-cidr指定的一样。

修改完后文件后，部署：

kubectl apply -f calico.yaml

kubectl get pods -n kube-system

等Calico Pod都Running，节点也会准备就绪。

[root@master k8s]# kubectl get pods -n kube-system -o wide

NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES

calico-kube-controllers-566654d67d-zr7cp1/1 Running 3 (28m ago) 22h 10.244.104.5 node2

calico-node-gwx4m1/1 Running 2 (29m ago) 22h 192.168.137.102 node1

calico-node-l6vzb1/1 Running 1 (22h ago) 22h 192.168.137.101 master

calico-node-zbltl1/1 Running 3 (29m ago) 22h 192.168.137.103 node2

coredns-c676cc86f-c5trx1/1 Running 1 (29m ago) 23h 10.244.104.4 node2

coredns-c676cc86f-phmsn1/1 Running 1 (29m ago) 23h 10.244.104.6 node2

kube-apiserver-master1/1 Running 2 (20h ago) 23h 192.168.137.101 master

kube-apiserver-node11/1 Running 2 (29m ago) 23h 192.168.137.102 node1

kube-controller-manager-master1/1 Running 10 (15h ago) 23h 192.168.137.101 master

kube-controller-manager-node11/1 Running 13 (10m ago) 23h 192.168.137.102 node1

kube-proxy-4bv451/1 Running 2 (29m ago) 23h 192.168.137.102 node1

kube-proxy-7b2nq1/1 Running 2 (29m ago) 23h 192.168.137.103 node2

kube-proxy-rczp71/1 Running 1 (23h ago) 23h 192.168.137.101 master

kube-scheduler-master1/1 Running 10 (13h ago) 23h 192.168.137.101 master

kube-scheduler-node11/1 Running 12 (10m ago) 23h 192.168.137.102 node1

[root@master k8s]# kubectl get node

NAMESTATUS ROLES AGE VERSION

masterNotReady control-plane 23h v1.25.0

node1Ready control-plane 23h v1.25.0

node2Ready 23h v1.25.0

到此k8s部署完成。但是正常的企业生成环境中，一般k8s的部署基本都是基于二进制的部署。此文章只提供了解K8S的组件及架构。如需要脚本和word文档可私信我。

部署一套完整的企业级K8s集群

① 准备cfssl证书生成工具

②生成Etcd证书

1. 自签证书颁发机构（CA）

2. 使用自签CA签发Etcd HTTPS证书

③ 部署Etcd集群

1. 创建工作目录并解压二进制包

2. 创建etcd配置文件

3. systemd管理etcd

4. 拷贝刚才生成的证书

5. 启动并设置开机启动

6. 将上面节点1所有生成的文件拷贝到节点2和节点3

7. 查看集群状态

①安装Docker

② 安装cri-dockerd

③添加阿里云YUM软件源

④ 安装kubeadm，kubelet和kubectl

① 初始化Master1

②初始化node1

③初始化node2
