在数据库运维中，用户抱怨他们的应用程序速度较慢。他们没有提供具体细节，但他们“感觉”它运行得更慢了。听起来很熟悉？

每隔一段时间，我就会收到这样的请求：“我如何才能发现我的数据库中的某些SQL是否随着时间的推移而变得更糟？”

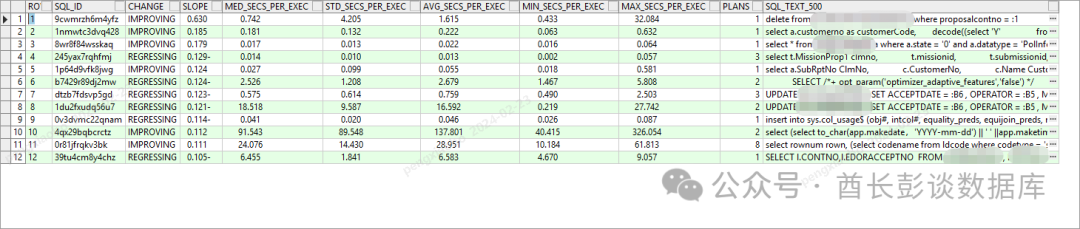

很难处理一些模糊的问题，比如“随着时间的推移，找到性能更差或更好的SQL”。如果我们简化该问题，其实就是在数据库中找到记录每一个sql 每次的执行时间，“每次执行的运行时间”，那么我们可以利用下面的sql很容易地生成如下脚本，该脚本返回的SQL语句就是随着时间的推移而经历了退化或改进。它对“每次执行的运行时间”与其历史执行SQL的中位数之间的比率使用线性回归。

然后，如果你怀疑你有一些SQL可能已经退化，需要一个人来识别它们，你可以试试下面的脚本。

----------------------------------------------------------------------------------------

--

-- File name:   sql_performance_changed.sql

--

-- Purpose:    列出随时间SQL语句性能变化的SQL语句

--

---------------------------------------------------------------------------------------

--

SPO sql_performance_changed.txt;

DEF days_of_history_accessed =
'31'
;

DEF captured_at_least_x_times =
'10'
;

DEF captured_at_least_x_days_apart =
'5'
;

DEF med_elap_microsecs_threshold =
'1e4'
;

DEF min_slope_threshold =
'0.1'
;

DEF max_num_rows =
'20'
;

SET
lin 200 ver
OFF
;

COL row_n
FOR
A2 HEA
'#'
;

COL med_secs_per_exec HEA
'Median Secs|Per Exec'
;

COL std_secs_per_exec HEA
'Std Dev Secs|Per Exec'
;

COL avg_secs_per_exec HEA
'Avg Secs|Per Exec'
;

COL min_secs_per_exec HEA
'Min Secs|Per Exec'
;

COL max_secs_per_exec HEA
'Max Secs|Per Exec'
;

COL plans
FOR
9999;

COL sql_text_80
FOR
A80;

PRO SQL Statements
with
"Elapsed Time per Execution"
changing over
time

WITH

per_time
AS
(

SELECT
h.dbid,


h.sql_id,


SYSDATE -
CAST
(s.end_interval_time
AS
DATE
) days_ago,


SUM
(h.elapsed_time_total) /
SUM
(h.executions_total) time_per_exec


FROM
dba_hist_sqlstat h,


dba_hist_snapshot s


WHERE
h.executions_total > 0


AND
s.snap_id = h.snap_id


AND
s.dbid = h.dbid


AND
s.instance_number = h.instance_number


AND
CAST
(s.end_interval_time
AS
DATE
) > SYSDATE - &&days_of_history_accessed.


GROUP
BY


h.dbid,


h.sql_id,


SYSDATE -
CAST
(s.end_interval_time
AS
DATE
)

),

avg_time
AS
(

SELECT
dbid,


sql_id,


MEDIAN(time_per_exec) med_time_per_exec,


STDDEV(time_per_exec) std_time_per_exec,


AVG
(time_per_exec)    avg_time_per_exec,


MIN
(time_per_exec)    min_time_per_exec,


MAX
(time_per_exec)    max_time_per_exec


FROM
per_time


GROUP
BY


dbid,


sql_id

HAVING
COUNT
(*) >= &&captured_at_least_x_times.


AND
MAX
(days_ago) -
MIN
(days_ago) >= &&captured_at_least_x_days_apart.


AND
MEDIAN(time_per_exec) > &&med_elap_microsecs_threshold.

),

time_over_median
AS
(

SELECT
h.dbid,


h.sql_id,


h.days_ago,


(h.time_per_exec / a.med_time_per_exec) time_per_exec_over_med,


a.med_time_per_exec,


a.std_time_per_exec,


a.avg_time_per_exec,


a.min_time_per_exec,


a.max_time_per_exec


FROM
per_time h, avg_time a


WHERE
a.sql_id = h.sql_id

),

ranked
AS
(

SELECT
RANK () OVER (
ORDER
BY
ABS
(REGR_SLOPE(t.time_per_exec_over_med, t.days_ago))
DESC
) rank_num,


t.dbid,


t.sql_id,


CASE
WHEN
REGR_SLOPE(t.time_per_exec_over_med, t.days_ago) > 0
THEN
'IMPROVING'
ELSE
'REGRESSING'
END
change,


ROUND(REGR_SLOPE(t.time_per_exec_over_med, t.days_ago), 3) slope,


ROUND(
AVG
(t.med_time_per_exec)/1e6, 3) med_secs_per_exec,


ROUND(
AVG
(t.std_time_per_exec)/1e6, 3) std_secs_per_exec,


ROUND(
AVG
(t.avg_time_per_exec)/1e6, 3) avg_secs_per_exec,


ROUND(
MIN
(t.min_time_per_exec)/1e6, 3) min_secs_per_exec,


ROUND(
MAX
(t.max_time_per_exec)/1e6, 3) max_secs_per_exec


FROM
time_over_median t


GROUP
BY


t.dbid,


t.sql_id

HAVING
ABS
(REGR_SLOPE(t.time_per_exec_over_med, t.days_ago)) > &&min_slope_threshold.

)

SELECT
LPAD(ROWNUM, 2) row_n,


r.sql_id,


r.change,


TO_CHAR(r.slope,
'990.000MI'
) slope,


TO_CHAR(r.med_secs_per_exec,
'999,990.000'
) med_secs_per_exec,


TO_CHAR(r.std_secs_per_exec,
'999,990.000'
) std_secs_per_exec,


TO_CHAR(r.avg_secs_per_exec,
'999,990.000'
) avg_secs_per_exec,


TO_CHAR(r.min_secs_per_exec,
'999,990.000'
) min_secs_per_exec,


TO_CHAR(r.max_secs_per_exec,
'999,990.000'
) max_secs_per_exec,


(
SELECT
COUNT
(
DISTINCT
p.plan_hash_value)
FROM
dba_hist_sql_plan p
WHERE
p.dbid = r.dbid
AND
p.sql_id = r.sql_id) plans,


REPLACE
((
SELECT
DBMS_LOB.SUBSTR(s.sql_text, 80)
FROM
dba_hist_sqltext s
WHERE
s.dbid = r.dbid
AND
s.sql_id = r.sql_id), CHR(10)) sql_text_80


FROM
ranked r


WHERE
r.rank_num <= &&max_num_rows.


ORDER
BY


r.rank_num

/

SPO
OFF
;

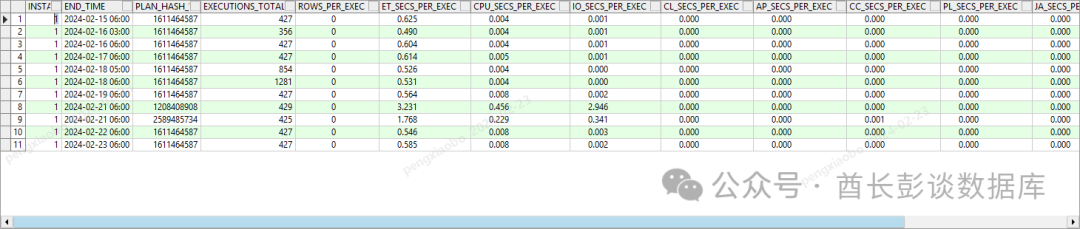

一旦您获得了上面这个脚本的输出，您就可以使用下面的脚本来实际列出感兴趣的SQL语句之一的时间序列：

----------------------------------------------------------------------------------------

--

-- File name:   one_sql_time_series.sql

--

-- Purpose:     Performance History for one SQL

--

--

-- Parameters:  SQL_ID

--

---------------------------------------------------------------------------------------

--

SPO one_sql_time_series.txt;

SET
lin 200 ver
OFF
;

COL instance_number
FOR
9999 HEA
'Inst'
;

COL end_time HEA
'End Time'
;

COL plan_hash_value HEA
'Plan|Hash Value'
;

COL executions_total
FOR
999,999 HEA
'Execs|Total'
;

COL rows_per_exec HEA
'Rows Per Exec'
;

COL et_secs_per_exec HEA
'Elap Secs|Per Exec'
;

COL cpu_secs_per_exec HEA
'CPU Secs|Per Exec'
;

COL io_secs_per_exec HEA
'IO Secs|Per Exec'
;

COL cl_secs_per_exec HEA
'Clus Secs|Per Exec'
;

COL ap_secs_per_exec HEA
'App Secs|Per Exec'
;

COL cc_secs_per_exec HEA
'Conc Secs|Per Exec'
;

COL pl_secs_per_exec HEA
'PLSQL Secs|Per Exec'
;

COL ja_secs_per_exec HEA
'Java Secs|Per Exec'
;

SELECT
h.instance_number,


TO_CHAR(
CAST
(s.end_interval_time
AS
DATE
),
'YYYY-MM-DD HH24:MI'
) end_time,


h.plan_hash_value,


h.executions_total,


TO_CHAR(ROUND(h.rows_processed_total / h.executions_total),
'999,999,999,999'
) rows_per_exec,


TO_CHAR(ROUND(h.elapsed_time_total / h.executions_total / 1e6, 3),
'999,990.000'
) et_secs_per_exec,


TO_CHAR(ROUND(h.cpu_time_total / h.executions_total / 1e6, 3),
'999,990.000'
) cpu_secs_per_exec,


TO_CHAR(ROUND(h.iowait_total / h.executions_total / 1e6, 3),
'999,990.000'
) io_secs_per_exec,


TO_CHAR(ROUND(h.clwait_total / h.executions_total / 1e6, 3),
'999,990.000'
) cl_secs_per_exec,


TO_CHAR(ROUND(h.apwait_total / h.executions_total / 1e6, 3),
'999,990.000'
) ap_secs_per_exec,


TO_CHAR(ROUND(h.ccwait_total / h.executions_total / 1e6, 3),
'999,990.000'
) cc_secs_per_exec,


TO_CHAR(ROUND(h.plsexec_time_total / h.executions_total / 1e6, 3),
'999,990.000'
) pl_secs_per_exec,


TO_CHAR(ROUND(h.javexec_time_total / h.executions_total / 1e6, 3),
'999,990.000'
) ja_secs_per_exec


FROM
dba_hist_sqlstat h,


dba_hist_snapshot s


WHERE
h.sql_id =
'&sql_id.'


AND
h.executions_total > 0


AND
s.snap_id = h.snap_id


AND
s.dbid = h.dbid


AND
s.instance_number = h.instance_number


ORDER
BY


h.sql_id,


h.instance_number,


s.end_interval_time,


h.plan_hash_value

/

SPO
OFF
;
