In my blog CRM One Order statistic tool I develop a small tool to print out the statistics of number of assigned line item for all business documents in the system.

The tool has the following three sections of output in SAPGUI.

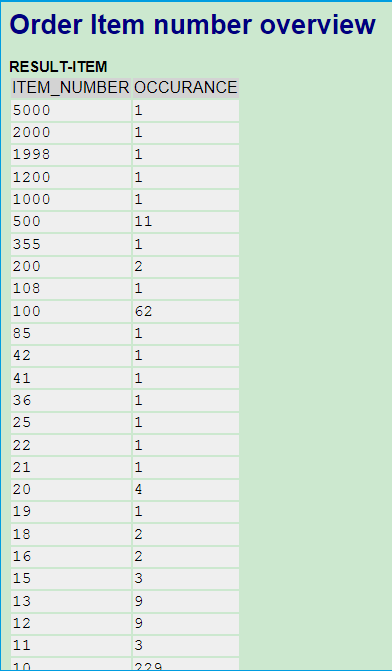

This section means there are 1 order which has 5000 line items, 1 order has 2000 items, 1 order has 1998 items …

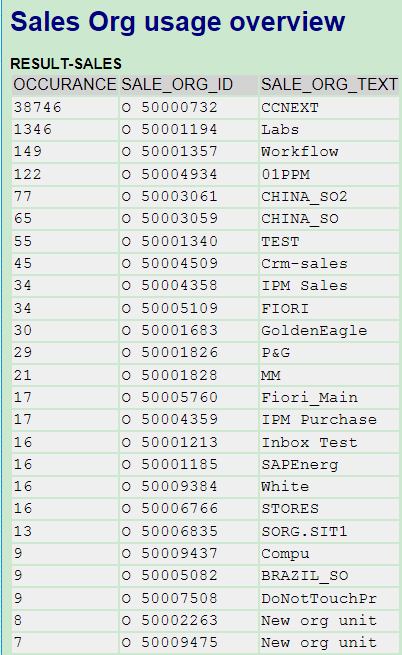

Accordingly, this section below means Sales Organization 50000732 has been used in 38746 Business document, Organization 50001194 used in 1346 Business document.

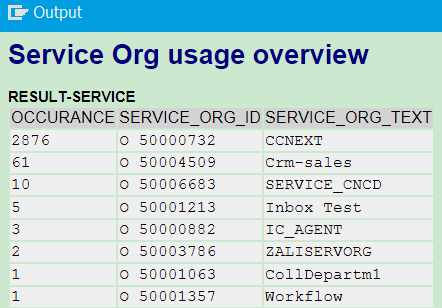

And this is for Service Organization unit.

In this blog, I will introduce how to display the output in browser instead, using a chart library jChartFX.

You can refer to final achievement below:

Here below is detail step to build this tool. Step1. Create a new BSP application in SE80, and create a new page index.htm.

Paste the following source code to index.htm:

<%@page language="abap" %>


















        .jchartfx .AxisY_Text {
            fill: #FEFEFE;
    }
    .jchartfx .AxisX_Text {
        fill: #FEFEFE;
    }
    .jchartfx .Title {
        fill: #FEFEFE;
    }
    .jchartfx .LegendItem {
        fill: #FEFEFE;
    }
    }
