AM设置：

为了防止钝化，需要在Propertis属性中填加控制：

Name：RENETION_LEVEL　　　Value：MANAGE_STATE

oracle.apps.Application.scheme.server 　保存EO对象

oracle.apps.Application.webui 　保存PG和CO对象

oracle.apps.Application.server 　保存AM、VO、VL等对象

oracle.apps.Application.lov.server 保存Lov的AM和VO对象

oracle.apps.Application.lov.webui 保存Lov的PG和CO对象

oracle.apps.Application.poplist.server 保存Poplist的VO对象

Application一般指应用简称，例如：oracle.apps.sie.webui

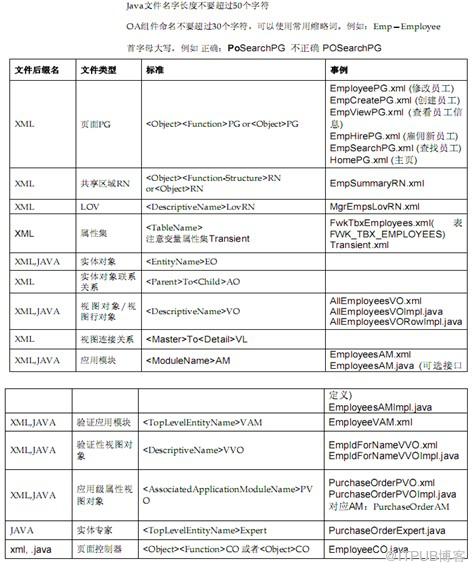

2 文件命名：

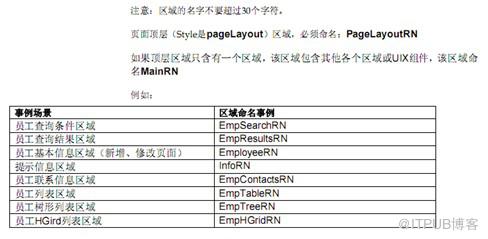

3 区域命名规范：

4 获取DBC:

http://sietest.chinasie.com:8017/OA_HTML/jsp/fnd/aoljtest.jsp

以下是登陆数据库

apps

se12test

192.168.175.20

1538

复制保存为8017.dbc并用'#'号注释最长的那句（也就是连接数据库的语）

5 导入PG:

E:\oraceldeveloper\Jdev_R12_GENERIC\jdevbin\oaext\bin\import E:\oraceldeveloper\Jdev_R12_GENERIC\jdevhome\jdev\myprojects\oracle\apps\pos\onboard\webui -includeSubpackages -rootdir E:\oraceldeveloper\Jdev_R12_GENERIC\jdevhome\jdev\myprojects -mmddir E:\oraceldeveloper\Jdev_R12_GENERIC\jdevbin\oaext\config\mmd -username apps -password apps -dbconnection "(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=192.168.175.20)(PORT=1538)))(CONNECT_DATA=(SID=se12test)))" -jdk13

导出PG:

E:\oraceldeveloper\Jdev_R12_GENERIC\jdevbin\oaext\bin\export.bat /oracle/apps/pos/onboard/webui/FlexRegPSRequestRN -rootdir D:\export1 -username apps -password apps -dbconnection "(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.175.20)(PORT=1538))(CONNECT_DATA=(SID=se12test)))"

重启服务器：

telnet 192.168.175.20

applse5l

cd $INST_TOP/admin/scripts

adapcctl.sh stop

adoacorectl.sh stop

adapcctl.sh start

adoacorectl.sh start

6 查看二次开发的修改信息：

查看PG

SELECT path_name, path_docid, path_owner_docid, path_type

FROM jdr_paths

START WITH path_name = 'CsfDashBoardPG'

CONNECT BY PRIOR path_owner_docid = path_docid;

--查看二次开发的修改版本

select * from jdr_paths a where a.path_name='FlexRegAM';

--查看二次开发过的修改内容

BEGIN

jdr_utils.listcustomizations('/oracle/apps/pos/onboard/server/FlexRegAM');

END;

--删除二次开发过的修改内容

BEGIN

jdr_utils.deleteDocument('/oracle/apps/pos/onboard/server/customizations/site/0/FlexRegAM');

END;

7 常用语句：

7.1 页面提示：

String userContent =pageContext.getParameter("HelloName");
String message = "Hello," + userContent + "!";

throw new OAException(message, OAException.INFORMATION);

7.2 中文乱码：

　try {

retStr = new String(str.getBytes("ISO-8859-1"), "gb2312");

} catch (UnsupportedEncodingException e) {

OAException.wrapperException(e);

}

7.3 String转换为Number注意要引进：

import oracle.jbo.domain.Number;

new Number(Integer.parseInt(String));

7.4 动态增加样式：

   CSSStyle style = new CSSStyle();
    style.setProperty("font-color", "#FFFFCC;");
    webBean.findChildRecursive("DemandQty").setAttributeValue(INLINE_STYL   E_ATTR, style);

7.5 增加删除时的对话框提示：

AImageBean delAptitude = (OAImageBean)webBean.findChildRecursive("delAptitude");

String str =null;

String javaStr =null;

if(delAptitude!=null){

try {

str = new String("是否要删除该条认证信息？备注为：");

str = new String(str.getBytes("ISO-8859-1"), "gb2312");

} catch (UnsupportedEncodingException e) {}

//假设图标列控件的ID为：Y_REMARK 备注列控件的ID为：delAptitude

delAptitude.setOnClick("javascript.:var idStr = this.id;

var remarkidStr = idStr.replace('delAptitude','Y_REMARK');

var remarktext = document.getElementById(remarkidStr);

if(remarktext == undefined){remarkidStr = idStr.replace('delAptitude','N_REMARK'); remarktext = document.getElementById(remarkidStr);}

var str ='"+str+"';var str2=remarktext.innerText;

var str3=str.concat(str2);

if(!confirm(str3)){ return false ;}"); //注意在此处要返回flase

}

7.6 远程调用的参数传递：

Serializable[] Parameters = {SearchLogonName,SearchUserName}; //创建变量数组

am.invokeMethod("UserQuery",Parameters); //调用AM方法UserQuery

7.7 条件拼凑：

public void initQuery(String SearchLogonName,String SearchUserName)

{

StringBuffer WhereCluse = new StringBuffer(); //新定义一个WHERE条件的对象

Vector Parameters = new Vector(2);

int CluseCount = 0;

int BindCount = 0;

this.setWhereClauseParams(null);//以上是给对象初始化

//保存LOGONNAME

if ((SearchLogonName != null) && (!("".equals(SearchLogonName.trim()))))

{

WhereCluse.append("LOGON_NAME = :"); //增加一个字符串

WhereCluse.append(++BindCount);

Parameters.addElement(SearchLogonName);// 给BindCount赋值用于判断

CluseCount++;

}

//保存USER_NAME

if ((SearchUserName != null) && (!("".equals(SearchUserName.trim()))))

{

if (CluseCount > 0)

{

WhereCluse.append(" AND "); //拼SQL语句

}

WhereCluse.append("USER_NAME = :");

WhereCluse.append(++BindCount);

Parameters.addElement(SearchUserName);

CluseCount++;

}

this.setWhereClause(WhereCluse.toString());

if (BindCount>0)

{

Object[] Params = new Object[BindCount];

Parameters.copyInto(Params);

setWhereClauseParams(Params);//给WHERE条件赋值

}

7.8 页面跳转：

String userid = pageContext.getParameter("userid");//获取UserId

HashMap params = new HashMap(1);//创建HashMap对象

params.put("userid",userid);//给参数赋值

//跳转到修改页面，同时传递参数过去

pageContext.setForwardURL("OA.jsp?page=/oracle/apps/sie/lesson/update/webui/UpdateUserPG",

null,

OAWebBeanConstants.KEEP_MENU_CONTEXT,

null,

params,

true, // Retain AM

OAWebBeanConstants.ADD_BREAD_CRUMB_YES,

OAWebBeanConstants.IGNORE_MESSAGES);

7.9 新建时序列赋值：

public void create(AttributeList attributeList)

{

super.create(attributeList);

//修改给UserId赋值，获取序列号

Number new_user_id = this.getOADBTransaction()

.getSequenceValue("OAF_EXM_USER_S");

setUserId(new_user_id);

}

7.10 删除遍历：

------------------------版本一-----------------------------

public void deleteUser()

{

OAViewObjectImpl vo =getUserSummaryVO1();

UserSummaryVORowImpl row = null;

int fetchedRowCount = vo.getFetchedRowCount(); //可用getRowCount();

RowSetIterator deleteIter = null;

try

{

deleteIter = vo.createRowSetIterator("deleteIter");

if (fetchedRowCount > 0)

{

deleteIter.setRangeStart(0);

deleteIter.setRangeSize(fetchedRowCount);

while (deleteIter.hasNext())

{

row = (UserSummaryVORowImpl)deleteIter.next();

System.out.print(row.getSelectFlag());

if (“Y”. equals(row.getSelectFlag()))

{

row.remove();

}

getTransaction().commit();

}

finally

{

if (deleteIter!=null)

{

deleteIter.closeRowSetIterator();

}

---------------------版本二-----------------------------------

private void deleteComment(int article_id)

{

CommentVOImpl vo=(CommentVOImpl)getCommentVO1();

CommentVORowImpl row = null;

row=(CommentVORowImpl)vo.first();

while(row!=null){

Number primaryKey = row.getArticleId();

if (primaryKey.compareTo(article_id) == 0) {

row.remove();

getTransaction().commit();

}

if(vo.hasNext()) row=(CommentVORowImpl)vo.next();

else break;

}

7.11 事务开和关：

――事务新建

TransactionUnitHelper.startTransactionUnit(pageContext, "createPlanTxn"); //开启事务

――事务关闭

if (TransactionUnitHelper.isTransactionUnitInProgress(pageContext, "createUserTxn", false)) //这里是用到一个令牌效果，如果执行了从新建页面回退到此页面，才执行如下操作。判断是否有令牌

{

am.invokeMethod("cancel"); //调用AM 的cancel方法

TransactionUnitHelper.endTransactionUnit(pageContext, " createUserTxn "); //撤消创建事务

}

－－处理浏览器回退

//初始化加载页面，检查是否通过浏览器回退按钮进入本页面，如果是，则报警提示用户

if (!pageContext.isBackNavigationFired(false))

{

//正常进入创建用户页面，申明创建用户事务

TransactionUnitHelper.startTransactionUnit(pageContext, " createUserTxn ");

//注册一个“createUserTxn”事务

if (!pageContext.isFormSubmission())//判断是否提交

{

OAApplicationModule am = pageContext.getApplicationModule(webBean);

am.invokeMethod("newUser");//调用AM的“newUser”方法

}

else

{

//浏览器回退钮进入，报异常信息

if (!TransactionUnitHelper.isTransactionUnitInProgress(pageContext, " createUserTxn ", true))

{

OADialogPage dialogPage = new OADialogPage(NAVIGATION_ERROR);

pageContext.redirectToDialogPage(dialogPage); //显示错误信息

}

7.12 取消，应用，增加：

//数据库的回滚

public void cancel ()

{

Transaction Txn = getTransaction();//创建对象

if (Txn.isDirty())//检查是否脏数据

{

Txn.rollback();//执行回滚

}

//数据库提交

public void apply () {

this.getDBTransaction().commit();//执行提交操作

}

//创建新用户

public void createNewUser()

{

UserVOImpl vo = (UserVOImpl)getUserVO1();//获取VO

vo.setMaxFetchSize(0);

vo.executeQuery();//首先必须执行VO

Row row = vo.createRow();//创建一个新行

vo.insertRow(row);//将新创建的行加入到VO里

row.setNewRowState(Row.STATUS_INITIALIZED);//给创建的新行赋类型

}

7.13 删除跳转页面提示：

String ctmCode = pageContext.getParameter("ctmcode");

String ctmName = pageContext.getParameter("ctmname");

String str=new String("是否确定要删除此客户信息(");

String str2=new String(")?");

try{

str=new String(str.getBytes("ISO-8859-1"),"gb2312");

str=str+ctmCode+" "+ctmName+new String(str2.getBytes("ISO-8859-1"),"gb2312");

}catch(Exception e){}

OAException mainMessage = new OAException(str);

OADialogPage dialogPage = new OADialogPage(OAException.WARNING, mainMessage, null, "", "");

String yes = pageContext.getMessage("AK", "FWK_TBX_T_YES", null);

String no = pageContext.getMessage("AK", "FWK_TBX_T_NO", null);

dialogPage.setOkButtonItemName("DeleteYesButton");

dialogPage.setOkButtonToPost(true);

dialogPage.setNoButtonToPost(true);

dialogPage.setPostToCallingPage(true);

dialogPage.setOkButtonLabel(yes);

dialogPage.setNoButtonLabel(no);

java.util.Hashtable formParams = new java.util.Hashtable(1);

formParams.put("id", id);

formParams.put("ctmcode", ctmCode);

formParams.put("ctmname", ctmName);

dialogPage.setFormParameters(formParams);

pageContext.redirectToDialogPage(dialogPage);

}

else if (pageContext.getParameter("DeleteYesButton") != null)

{

String id = pageContext.getParameter("id");

String ctmCode = pageContext.getParameter("ctmcode");

String ctmName = pageContext.getParameter("ctmname");

Serializable[] parameters = { id };

am.invokeMethod("DeleteCtmId",parameters);//调用AM方法删除

String str=new String("已删除客户信息(");

String str2=new String(")");

try{

str=new String(str.getBytes("ISO-8859-1"),"gb2312");

str=str+ctmCode+" "+ctmName+new String(str2.getBytes("ISO-8859-1"),"gb2312");

}catch(Exception e){}

OAException message = new OAException(str,OAException.WARNING);

pageContext.putDialogMessage(message);

}

7.14 调用存储过程：

int user_id = Integer.valueOf(pageContext.getParameter("user_id"));

int org_id = Integer.valueOf(pageContext.getParameter("org_id"));

int mfg_org_id = Integer.valueOf(pageContext.getParameter("mfg_org_id"));

int po_line_id = Integer.valueOf(pageContext.getParameter("po_line_id"));

int po_head_id = Integer.valueOf(pageContext.getParameter("po_head_id"));

int resp_Id = Integer.valueOf(pageContext.getParameter("resp_Id"));

int resp_appl_id = Integer.valueOf(pageContext.getParameter("resp_appl_id"));

System.out.println("--start----");

String result =null;

OAApplicationModule am = (OAApplicationModule)pageContext.getApplicationModule(webBean);

OADBTransaction transaction = null;

CallableStatement stm =null;

try{

transaction = am.getOADBTransaction();

String sql ="Begin oaf_receive_inv_pg.receive_inv( p_user_id => :1, "

+"org_id => :2 ,"

+"p_mfg_org_id=> :3,"

+"p_po_line_id=> :4,"

+"p_po_head_id=> :5,"

+"p_resp_Id=> :6,"

+"p_resp_appl_id=> :7,"

+"o_result =>:8 ); end;";

stm = transaction.createCallableStatement(sql,1);

stm.setInt(1,user_id);

stm.setInt(2,org_id);

stm.setInt(3,mfg_org_id);

stm.setInt(4,po_line_id);

stm.setInt(5,po_head_id);

stm.setInt(6,resp_Id);

stm.setInt(7,resp_appl_id);

stm.registerOutParameter(8, 12);

stm.execute();

result = stm.getString(8);

System.out.println("end:"+result);

}catch(Exception exception){

exception.printStackTrace();

} finally {

try {

if (stm != null) stm.close();

} catch (Exception exception) {

exception.printStackTrace();

}

7.15 绑定下载控件，实现文件名动态改变：

OAMessageFileUploadBean ubean = (OAMessageFileUploadBean)webBean.findChildRecursive("N_ARRACH");

if(ubean != null){

OADataBoundValueViewObject kk = new OADataBoundValueViewObject(ubean,"AttachmentFilename");

ubean.setAttributeValue(DOWNLOAD_FILE_NAME,kk);

}

7.16 日期转换：

public String paseDate(String needByDate) {

SimpleDateFormat formatter = new SimpleDateFormat("yyyy-MM-dd");

String mDateTime ="";

if(!"".equals(needByDate.trim())){

mDateTime = formatter.format(new java.util.Date(needByDate));

}

return mDateTime;

}

8 常见错误处理：

9.1 VO的SQL找不到字段：

9.2 钝化（后退，新建）

9.3 返回时要验证
