介绍
DM 共享存储数据库集群的英文全称 DM Data Shared Cluster ，简称 DMDSC 。
DM 共享存储数据库集群，允许多个数据库实例同时访问、操作同一数据库，具有高可用、高性能、负载均衡等特性。 DMDSC 支持故障自动切换和故障自动重加入，某一个数据库实例故障后，不会导致数据库服务无法提供。

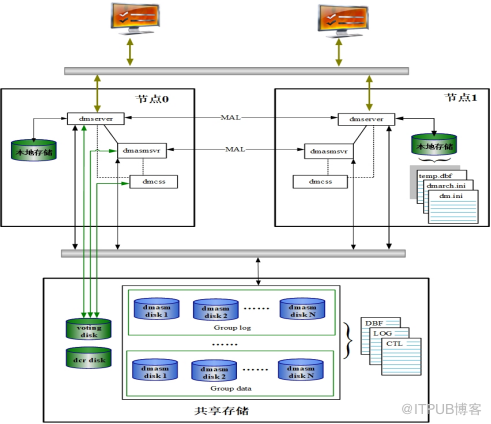

系统结构图：
前期准备
两台服务器、每台服务器至少 2 块网卡、内存至少 2GB 、三块共享存储磁盘、提前安装 dm 软件。
网络配置
###public 192.168.31.200 dsc01 192.168.31.58 dsc02 ###priv 192.168.33.200 dsc01-priv 192.168.33.58 dsc02-priv
存储配置
fdisk -l Disk /dev/sde: 2147 MB, 2147483648 bytes, 4194304 sectors Disk /dev/sdf: 2147 MB, 2147483648 bytes, 4194304 sectors Disk /dev/sdg: 2147 MB, 2147483648 bytes, 4194304 sectors Disk /dev/sdh: 10.7 GB, 10737418240 bytes, 20971520 sectors
存储规划
VOTE 2G /dev/sde---/dev/dm/asm-diske DCR 2G /dev/sdf---/dev/dm/asm-diskf ARCH 2G /dev/sdg---/dev/dm/asm-diskg DATA 10G /dev/sdh---/dev/dm/asm-diskh
磁盘绑定
如没有配置多路径，采用 UUID 绑定多个 LUN 存储，可以通过 fdisk -l 命令查看 LUN 设备，这里以共享存储盘为 sde ， sdf ， sdg ， sdh 为例。
绑定设备的 UUID 。创建 uuid.sh 文件，使用脚本生成配置文件。
ls /etc/udev/rules.d/88-dm-asmdevices.rules
for i in e f g h; do echo "KERNEL==\"sd?\",SUBSYSTEM==\"block\", PROGRAM==\"/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/\$name\",RESULT==\"`/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i`\", SYMLINK+=\"dm/asm-disk$i\",OWNER=\"dmdba\", GROUP=\"dinstall\",MODE=\"0660\"" >> /etc/udev/rules.d/88-dm-asmdevices.rules done
脚本执行成功后，会生成绑定配置文件 88-dm-asmdevices.rules ，可以根据自己的需求进行修改别名 SYMLINK ，本文档修改如下：
cat /etc/udev/rules.d/88-dm-asmdevices.rules KERNEL=="sd?",SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name",RESULT=="1ATA_VBOX_HARDDISK_VB4bbc185c-adebce47", SYMLINK+="dm/asm-diske",OWNER="dmdba", GROUP="dinstall",MODE="0660" KERNEL=="sd?",SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name",RESULT=="1ATA_VBOX_HARDDISK_VB5286a6b0-e686bf8e", SYMLINK+="dm/asm-diskf",OWNER="dmdba", GROUP="dinstall",MODE="0660" KERNEL=="sd?",SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name",RESULT=="1ATA_VBOX_HARDDISK_VB45416f69-4a1e1728", SYMLINK+="dm/asm-diskg",OWNER="dmdba", GROUP="dinstall",MODE="0660" KERNEL=="sd?",SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name",RESULT=="1ATA_VBOX_HARDDISK_VBc8102a7b-c9fec5b3", SYMLINK+="dm/asm-diskh",OWNER="dmdba", GROUP="dinstall",MODE="0660"
配置部署文件。生成配置文件后，把 88-dm-asmdevices.rules 配置文件 cp 到 DSC 的每个节点上。
检查生效。
（ 1 ）重启服务器，建议使用该方法。
（ 2 ）如果无法重启，执行下述命令。
udevadm control --reload-rules systemctl restart systemd-udev-trigger.service
[root@dsc01 ~]# ls -lrth /dev/dm/asm-disk* lrwxrwxrwx 1 root root 6 Dec 8 15:01 /dev/dm/asm-diske -> ../sde lrwxrwxrwx 1 root root 6 Dec 8 15:01 /dev/dm/asm-diskh -> ../sdh lrwxrwxrwx 1 root root 6 Dec 8 15:01 /dev/dm/asm-diskf -> ../sdf lrwxrwxrwx 1 root root 6 Dec 8 15:01 /dev/dm/asm-diskg -> ../sdg
（ 3 ）授权
chown dmdba:dinstall /dev/dm/asm-* -R
（ 4 ）检查生效
blockdev --getsize64 /dev/dm/asm-diske blockdev --getsize64 /dev/dm/asm-diskh blockdev --getsize64 /dev/dm/asm-diskf blockdev --getsize64 /dev/dm/asm-diskg
结果如下
[root@dsc01 ~]# blockdev --getsize64 /dev/dm/asm-diske 2147483648 [root@dsc01 ~]# blockdev --getsize64 /dev/dm/asm-diskh 10737418240 [root@dsc01 ~]# blockdev --getsize64 /dev/dm/asm-diskf 2147483648 [root@dsc01 ~]# blockdev --getsize64 /dev/dm/asm-diskg 2147483648
配置 dmdcr_cfg.ini
dsc01 和 dsc02 机器配置相同。
[dmdba@dsc01 ~]$ mkdir /dm/dmdbms/dsc_config vi /dm/dmdbms/dsc_config/dmdcr_cfg.ini DCR_N_GRP = 3 ##集群环境有多少个 GROUP，范围：1~16 DCR_VTD_PATH = /dev/dm/asm-diske ##规划为 vote 的磁盘 DCR_OGUID = 210715 ## 消息标识，一个组里面只有一个。 [GRP] #新建一个 GROUP DCR_GRP_TYPE = CSS ##组类型（CSS/ASM/DB） DCR_GRP_NAME = GRP_CSS ##组名 DCR_GRP_N_EP = 2 ##组内节点个数 DCR_GRP_DSKCHK_CNT = 65 ##磁盘心跳容错时间，单位:秒 [GRP_CSS] DCR_EP_NAME = CSS0 ##CSS 节点名 DCR_EP_HOST = 192.168.33.200 ##心跳地址 DCR_EP_PORT = 11286 ##CSS 端口 [GRP_CSS] DCR_EP_NAME = CSS1 DCR_EP_HOST = 192.168.33.58 DCR_EP_PORT = 11286 [GRP] DCR_GRP_TYPE = ASM DCR_GRP_NAME = GRP_ASM DCR_GRP_N_EP = 2 DCR_GRP_DSKCHK_CNT = 61 [GRP_ASM] DCR_EP_NAME = ASM0 ##ASM 节点名，和 dmasvrmal 的 MAL_INST_NAME 一致 DCR_EP_SHM_KEY = 42424 ##共享内存标识 DCR_EP_SHM_SIZE = 1024 ##共享内存大小 DCR_EP_HOST = 192.168.33.200 ##心跳地址 DCR_EP_PORT = 11276 ##ASM 端口 DCR_EP_ASM_LOAD_PATH = /dev/dm [GRP_ASM] DCR_EP_NAME = ASM1 DCR_EP_SHM_KEY = 42425 DCR_EP_SHM_SIZE = 1024 DCR_EP_HOST = 192.168.33.58 DCR_EP_PORT = 11277 DCR_EP_ASM_LOAD_PATH = /dev/dm [GRP] DCR_GRP_TYPE = DB DCR_GRP_NAME = GRP_DSC DCR_GRP_N_EP = 2 DCR_GRP_DSKCHK_CNT = 57 [GRP_DSC] DCR_EP_NAME = DSC0 ##实例名，和 dm.ini 的 INSTANCE_NAME 一致 DCR_EP_SEQNO = 0 ##组内序号，不能重复 DCR_EP_PORT = 5237 ##实例端口，和 dm.ini 的 PORT_NUM 一致 DCR_CHECK_PORT = 11256 ##DCR 检查端口 [GRP_DSC] DCR_EP_NAME = DSC1 DCR_EP_SEQNO = 1 DCR_EP_PORT = 5237 DCR_CHECK_PORT = 11257
初始化磁盘组
在 dsc01 机器上进行如下操作。
/dm/dmdbms/bin/dmasmcmd ASM>create votedisk '/dev/dm/asm-diske' 'vote' ASM>create dcrdisk '/dev/dm/asm-diskf' 'dcr' ASM>init dcrdisk '/dev/dm/asm-diskf' from '/dm/dmdbms/dsc_config/dmdcr_cfg.ini' identified by 'hust4400' ASM>init votedisk '/dev/dm/asm-diske' from '/dm/dmdbms/dsc_config/dmdcr_cfg.ini' ASM>create asmdisk '/dev/dm/asm-diskh' 'DATA0' ASM>create asmdisk '/dev/dm/asm-diskg' 'ARCH0'
配置 dmasvrmal.ini
vi /dm/dmdbms/dsc_config/dmasvrmal.ini [MAL_INST0] MAL_INST_NAME = ASM0 MAL_HOST = 192.168.33.200 #心跳地址 MAL_PORT = 11266 #MAL 监听端口 [MAL_INST1] MAL_INST_NAME = ASM1 MAL_HOST = 192.168.33.58 MAL_PORT = 11266
配置 dmdcr.ini 文件
dsc01 机器配置 dmdcr.ini ， dmdcr_seqo 为 0
vi /dm/dmdbms/dsc_config/dmdcr.ini DMDCR_PATH = /dev/dm/asm-diskf DMDCR_MAL_PATH = /dm/dmdbms/dsc_config/dmasvrmal.ini DMDCR_SEQNO = 0 DMDCR_AUTO_OPEN_CHECK = 111 DMDCR_ASM_TRACE_LEVEL = 2 ##DMDCR_ASM_RESTART_INTERVAL = 60 #CSS 认定 ASM 故障重启的时间 ##DMDCR_ASM_STARTUP_CMD = /dm/dmdbms/dsc_config/DmAsmService_DSC0 start ##DMDCR_DB_RESTART_INTERVAL = 60 ##CSS 认定 DSC 故障重启的时间，设置为 0 不自动拉起 ##DMDCR_DB_STARTUP_CMD = /dm/dmdbms/dsc_config/DmService_DSC0 start
dsc02 机器配置 dmdcr.ini， dmdcr_seqo 为 1
vi /dm/dmdbms/dsc_config/dmdcr.ini DMDCR_PATH = /dev/dm/asm-diskf DMDCR_MAL_PATH = /dm/dmdbms/dsc_config/dmasvrmal.ini DMDCR_SEQNO = 1 DMDCR_AUTO_OPEN_CHECK = 111 DMDCR_ASM_TRACE_LEVEL = 2 ##DMDCR_ASM_RESTART_INTERVAL = 60 ##DMDCR_ASM_STARTUP_CMD = /dm/dmdbms/dsc_config/DmAsmServiceDSC1 start ##DMDCR_DB_RESTART_INTERVAL = 60 ##DMDCR_DB_STARTUP_CMD = /dm/dmdbms/dsc_config/DmServiceDSC1 start
注意
当前为手动拉起 dsc01 机器和 dsc02 机器的 ASM 和 DMSERVER 服务。待集群配置完成后，再修改为自动拉起（删除 dmdcr.ini 中的“ ## ”号即可）。
启动 DMCSS 、 DMASM 服务
在 2 个节点分别启动 dmcss 命令：
前台启动，执行 ctrl+c 后服务会退出
/dm/dmdbms/bin/dmcss DCR_INI=/dm/dmdbms/dsc_config/dmdcr.ini
在 2 个节点分别启动 dmasmsvr 命令：
前台启动，执行 ctrl+c 后服务会退出
/dm/dmdbms/bin/dmasmsvr DCR_INI=/dm/dmdbms/dsc_config/dmdcr.ini
创建 ASM
## 在 dsc01 节点启动 dmasmtool 工具
/dm/dmdbms/bin/dmasmtool DCR_INI=/dm/dmdbms/dsc_config/dmdcr.ini
## 输入下列语句创建 DMASM 磁盘组
## 创建数据磁盘组
ASM> create diskgroup 'DMDATA' asmdisk '/dev/dm/asm-diskh'
## 创建归档磁盘组
ASM> create diskgroup 'DMARCH' asmdisk '/dev/dm/asm-diskg'
初始化 DB 环境
dsc01 和 dsc02 机器配置相同。
创建 dminit.ini 文件
[dmdba@~]# vi /dm/dmdbms/dsc_config/dminit.ini DB_NAME = DSC SYSDBA_PWD = 1 SYSTEM_PATH = +DMDATA/data SYSTEM = +DMDATA/data/SYSTEM.dbf SYSTEM_SIZE = 300 ROLL = +DMDATA/data/ROLL.dbf ROLL_SIZE = 300 MAIN = +DMDATA/data/MAIN.dbf MAIN_SIZE = 300 CTL_PATH = +DMDATA/data/dm.ctl CTL_SIZE = 8 LOG_SIZE = 300 DCR_PATH = /dev/dm/asm-diskf DCR_SEQNO = 0 AUTO_OVERWRITE = 1 PAGE_SIZE = 32 EXTENT_SIZE = 16 BLANK_PAD_MODE = 1 [DSC0] CONFIG_PATH = /dm/dmdbms/dsc_config/DCS0 PORT_NUM = 5237 MAL_HOST = 192.168.33.200 MAL_PORT = 11246 LOG_PATH = +DMDATA/DSC0_LOG01.log LOG_PATH = +DMDATA/DSC0_LOG02.log [DSC1] CONFIG_PATH = /dm/dmdbms/dsc_config/DCS1 PORT_NUM = 5237 MAL_HOST = 192.168.33.58 MAL_PORT = 11246 LOG_PATH = +DMDATA/DSC1_LOG01.log LOG_PATH = +DMDATA/DSC1_LOG02.log
在 dsc01 节点执行初始化 db 命令
[dmdba@dsc01 dsc_config]$ /dm/dmdbms/bin/dminit control=/dm/dmdbms/dsc_config/dminit.ini initdb V8 db version: 0x7000c file dm.key not found, use default license! License will expire on 2023-07-20 Normal of FAST Normal of DEFAULT Normal of RECYCLE Normal of KEEP Normal of ROLL log file path: +DMDATA/DSC0_LOG01.log log file path: +DMDATA/DSC0_LOG02.log log file path: +DMDATA/DSC1_LOG01.log log file path: +DMDATA/DSC1_LOG02.log FILE "/dm/dmdbms/dsc_config/DCS0/dm.ini" has already existed FILE "/dm/dmdbms/dsc_config/DCS0/sqllog.ini" has already existed FILE "/dm/dmdbms/dsc_config/DCS1/dm.ini" has already existed FILE "/dm/dmdbms/dsc_config/DCS1/sqllog.ini" has already existed FILE "+DMDATA/data/SYSTEM.dbf" has already existed FILE "+DMDATA/data/dm.ctl" has already existed FILE "+DMDATA/DSC0_LOG01.log" has already existed FILE "+DMDATA/DSC0_LOG02.log" has already existed FILE "+DMDATA/DSC1_LOG01.log" has already existed FILE "+DMDATA/DSC1_LOG02.log" has already existed write to dir [+DMDATA/data/DSC]. create dm database success. 2022-12-08 17:52:12
拷贝文件到 dsc02 节点
scp -r /dm/dmdbms/dsc_config/DCS1 dmdba@192.168.33.58:/dm/dmdbms/dsc_config/
启动数据库
##dsc01 机器 /dm/dmdbms/bin/dmserver /dm/dmdbms/dsc_config/DCS0/dm.ini dcr_ini=/dm/dmdbms/dsc_config/dmdcr.ini ##dsc02 机器 /dm/dmdbms/bin/dmserver /dm/dmdbms/dsc_config/DCS1/dm.ini dcr_ini=/dm/dmdbms/dsc_config/dmdcr.ini
检查数据库
[dmdba@dsc01 ~]$ disql SYSDBA/Dameng123:5237 Server[LOCALHOST:5237]:mode is normal, state is open login used time : 95.307(ms) disql V8
检查集群
SQL> select * from V$dsc_ep_info; LINEID EP_NAME EP_SEQNO EP_GUID EP_TIMESTAMP EP_MODE EP_STATUS ---------- ------- ----------- -------------------- -------------------- ------------ --------- 1 DSC0 0 9684163 9684477 Control Node OK 2 DSC1 1 9725549 9725768 Normal Node OK used time: 468.386(ms). Execute id is 55000.
检查文件路径
SQL> select path from v$datafile; LINEID PATH ---------- -------------------------- 1 +DMDATA/data/SYSTEM.dbf 2 +DMDATA/data/ROLL.dbf 3 +DMDATA/data/DSC/TEMP0.DBF 4 +DMDATA/data/MAIN.dbf used time: 233.157(ms). Execute id is 55002. SQL> select path from v$rlogfile; LINEID PATH ---------- ---------------------- 1 +DMDATA/DSC0_LOG01.log 2 +DMDATA/DSC0_LOG02.log used time: 272.908(ms). Execute id is 55005.
检查 实例
SQL> select name,instance_name,host_name from v$instance; LINEID NAME INSTANCE_NAME HOST_NAME ---------- ---- ------------- --------- 1 DSC0 DSC0 dsc01 used time: 822.051(ms). Execute id is 55100. SQL> select name,instance_name,host_name from v$instance; LINEID NAME INSTANCE_NAME HOST_NAME ---------- ---- ------------- --------- 1 DSC1 DSC1 dsc02 used time: 17.985(ms). Execute id is 7.
检查 ASM
SQL> select group_id,group_name,TOTAL_SIZE from v$asmgroup; LINEID GROUP_ID GROUP_NAME TOTAL_SIZE ---------- ----------- ---------- ----------- 1 0 DMDATA 10239 2 1 DMARCH 2047 3 125 VOTE 2048 4 126 DCR 2048 used time: 907.805(ms). Execute id is 55007. SQL> select disk_name,disk_path from v$asmdisk; LINEID DISK_NAME DISK_PATH ---------- ---------- ----------------- 1 DMASMDATA0 /dev/dm/asm-diskh 2 DMASMARCH0 /dev/dm/asm-diskg 3 DMASMvote /dev/dm/asm-diske 4 DMASMdcr /dev/dm/asm-diskf used time: 433.907(ms). Execute id is 55008. SQL> select * from V$ASMATTR; LINEID AU_SIZE EXTENT_SIZE LOCAL_CODE LOCAL_LANG USE_SHM EXTENT_ARR_SIZE ---------- ----------- ----------- ---------- ---------- ------- --------------- 1 1048576 4 PG_GB18030 EN TRUE 12351936 used time: 77.872(ms). Execute id is 55013. SQL> select file_id,type,path from v$asmfile; LINEID FILE_ID TYPE PATH ---------- -------------------- --------- ------------------------ 1 2147483649 DIRECTORY +DMDATA 2 2147483650 DIRECTORY +DMDATA/data 3 2147483651 DIRECTORY +DMDATA/data/DSC 4 2147483652 DIRECTORY +DMDATA/data/DSC/bak 5 2147483653 FILE +DMDATA/data/dm.ctl 6 2147483679 FILE +DMDATA/DSC0_LOG01.log 7 2147483680 FILE +DMDATA/DSC0_LOG02.log 8 2147483681 FILE +DMDATA/DSC1_LOG01.log 9 2147483682 FILE +DMDATA/DSC1_LOG02.log 10 2147483661 FILE +DMDATA/data/SYSTEM.dbf 11 2147483659 DIRECTORY +DMDATA/data/DSC/ctl_bak 12 2147483685 FILE +DMDATA/data/MAIN.dbf 13 2147483662 FILE +DMDATA/data/DSC/dm_service.prikey 14 2147483684 FILE +DMDATA/data/DSC/ctl_bak/dm_20221208175156_758750.ctl 15 2147483686 FILE +DMDATA/data/ROLL.dbf 16 2147483687 DIRECTORY +DMDATA/data/DSC/HMAIN 17 2147483688 FILE +DMDATA/data/DSC/TEMP0.DBF 18 2147483689 FILE +DMDATA/data/DSC/TEMP1.DBF 19 2147483692 FILE +DMDATA/data/DSC/rep_conflict.log 20 2147483691 FILE +DMDATA/data/DSC/ctl_bak/dm_20221208180445_380829.ctl 21 2147483694 FILE +DMDATA/data/DSC/ctl_bak/dm_20221208180608_533426.ctl 22 2164260865 DIRECTORY +DMARCH 23 4244635649 DIRECTORY +VOTE 24 4244635650 FILE +VOTE/VOTE 25 4261412865 DIRECTORY +DCR 26 4261412866 FILE +DCR/DCR 26 rows got used time: 485.758(ms). Execute id is 55009.
检查 DCR
SQL> select * from V$DCR_INFO; LINEID VERSION N_GROUP VTD_PATH UDP_FLAG UDP_OGUID DCR_PATH ---------- ----------- ----------- ----------------- ----------- -------------------- ----------------- 1 259 3 /dev/dm/asm-diske 0 210715 /dev/dm/asm-diskf used time: 923.717(ms). Execute id is 55010. SQL> select * from V$DCR_GROUP; LINEID GROUP_TYPE GROUP_NAME N_EP DSKCHK_CNT NETCHK_TIME ---------- ---------- ---------- ----------- ----------- ----------- 1 CSS GRP_CSS 2 65 0 2 ASM GRP_ASM 2 61 0 3 DB GRP_DSC 2 57 0 used time: 903.076(ms). Execute id is 55011. SQL> select * from V$DCR_EP; LINEID GROUP_NAME EP_NAME EP_SEQNO EP_HOST EP_PORT UDP_PORT SHM_KEY SHM_SIZE ASM_LOAD_PATH ---------- ---------- ------- ----------- -------------- ----------- ----------- ----------- ----------- ------------- 1 GRP_CSS CSS0 0 192.168.33.200 11286 0 0 0 NULL 2 GRP_CSS CSS1 1 192.168.33.58 11286 0 0 0 NULL 3 GRP_ASM ASM0 0 192.168.33.200 11276 0 42424 1024 /dev/dm 4 GRP_ASM ASM1 1 192.168.33.58 11277 0 42425 1024 /dev/dm 5 GRP_DSC DSC0 0 5237 0 0 0 NULL 6 GRP_DSC DSC1 1 5237 0 0 0 NULL 6 rows got
创建测试数据
SQL> create table t1(id int,time datetime); executed successfully used time: 535.329(ms). Execute id is 55016. SQL> insert into t1 values(1,now()); affect rows 1 used time: 0.908(ms). Execute id is 55017. SQL> commit; executed successfully used time: 502.314(ms). Execute id is 55019. SQL> select * from t1; LINEID ID TIME ---------- ----------- -------------------------- 1 1 2022-12-08 18:24:26.540339 used time: 00:00:01.008. Execute id is 55018.
登录另一个节点，可以正常查到数据
[dmdba@dsc02 ~]$ disql SYSDBA/Dameng123:5237 SQL> select * from t1; LINEID ID TIME ---------- ----------- -------------------------- 1 1 2022-12-08 18:24:26.540339 used time: 00:00:03.320. Execute id is 2.
注册服务
注册 CSS 、 ASM 、 DMSERVER 后台服务，必须 root 用户执行
##dsc01 机器
/dm/dmdbms/script/root/dm_service_installer.sh -t dmcss -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -p CSS /dm/dmdbms/script/root/dm_service_installer.sh -t dmasmsvr -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -y DmCSSServiceCSS.service -p ASM /dm/dmdbms/script/root/dm_service_installer.sh -t dmserver -dm_ini /dm/dmdbms/dsc_config/DCS0/dm.ini -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -y DmASMSvrServiceASM.service -m open -p DSC
##dsc02 机器
/dm/dmdbms/script/root/dm_service_installer.sh -t dmcss -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -p CSS /dm/dmdbms/script/root/dm_service_installer.sh -t dmasmsvr -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -y DmCSSServiceCSS.service -p ASM /dm/dmdbms/script/root/dm_service_installer.sh -t dmserver -dm_ini /dm/dmdbms/dsc_config/DCS1/dm.ini -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -y DmASMSvrServiceASM.service -m open -p DSC
查看服务
[root@dsc01 ~]# systemctl list-unit-files |grep -E "DmA|DmCSS|DmS" DmAPService.service enabled DmASMSvrServiceASM.service enabled DmCSSServiceCSS.service enabled DmServiceDSC.service enabled
集群启动和关闭
启动集群
启动 CSS
[root@dsc01 ~]# systemctl start DmCSSServiceCSS.service [root@dsc02 ~]# systemctl start DmCSSServiceCSS.service
对应进程
[root@dsc01 ~]# ps -ef|grep -i dmc dmdba 25475 1 0 18:51 ? 00:00:00 /dm/dmdbms/bin/dmcss dcr_ini=/dm/dmdbms/dsc_config/dmdcr.ini -noconsole
启动 ASM
[root@dsc01 ~]# systemctl start DmASMSvrServiceASM.service [root@dsc02 ~]# systemctl start DmASMSvrServiceASM.service
对应进程
[root@dsc01 ~]# ps -ef|grep -i dmasm dmdba 25612 1 2 18:53 ? 00:00:01 /dm/dmdbms/bin/dmasmsvr dcr_ini=/dm/dmdbms/dsc_config/dmdcr.ini -noconsole
启动数据库
[root@dsc01 ~]# systemctl start DmServiceDSC [root@dsc02 ~]# systemctl start DmServiceDSC
对应进程
[root@dsc01 ~]# ps -ef|grep -i dms dmdba 25875 1 1 18:55 ? 00:00:00 /dm/dmdbms/bin/dmserver path=/dm/dmdbms/dsc_config/DCS0/dm.ini dcr_ini=/dm/dmdbms/dsc_config/dmdcr.ini -noconsole
关闭集群
关闭数据库
[root@dsc01 ~]# systemctl stop DmServiceDSC [root@dsc02 ~]# systemctl stop DmServiceDSC
关闭 ASM
[root@dsc01 ~]# systemctl stop DmASMSvrServiceASM.service [root@dsc02 ~]# systemctl stop DmASMSvrServiceASM.service
关闭 CSS
[root@dsc01 ~]# systemctl stop DmCSSServiceCSS.service [root@dsc02 ~]# systemctl stop DmCSSServiceCSS.service
其他操作
关闭服务自动启动
systemctl disable DmCSSServiceCSS.service systemctl disable DmASMSvrServiceASM.service systemctl disable DmServiceDSC systemctl disable DmAPService.service [root@dsc01 ~]# systemctl list-unit-files |grep -E "DmA|DmCSS|DmS" DmAPService.service disabled DmASMSvrServiceASM.service disabled DmCSSServiceCSS.service disabled DmServiceDSC.service disabled
删除服务
/dm/dmdbms/script/root/dm_service_uninstaller.sh -n DmCSSServiceCSS /dm/dmdbms/script/root/dm_service_uninstaller.sh -n DmASMSvrServiceASM /dm/dmdbms/script/root/dm_service_uninstaller.sh -n DmServiceDSC
故障处理
错误一：启动 CSS 服务失败
报错如下：
[dmdba@dsc01 ~]$ /dm/dmdbms/bin/dmcss DCR_INI=/dm/dmdbms/dsc_config/dmdcr.ini /dm/dmdbms/bin/dmcss: error while loading shared libraries: libdmcalc.so: cannot open shared object file: No such file or directory
需要进到 /dm/dmdbms/bin/ 目录下执行，不能直接使用绝对路径
[dmdba@dsc01 bin]$ ./dmcss DCR_INI=/dm/dmdbms/dsc_config/dmdcr.ini DMCSS V8 DMCSS IS READY [2022-12-08 16:21:47:027] [CSS]: Set EP CSS0[0] as Control node
错误二：启动 ASM服务失败
报错如下：
[dmdba@dsc01 bin]$ /dm/dmdbms/bin/dmasmsvr DCR_INI=/dm/dmdbms/dsc_config/dmdcr.ini ASM SELF EPNO:0 DMASMSVR V8 dmasmsvr task worker thread startup shmget: Invalid argument create share memory failed[code: -9728], please check shm config and try again, errno:[22]
需要调大 kernel.shmmax 值
[root@dsc01 mnt]# vi /etc/sysctl.conf #kernel.shmmax = 858783744
调大 kernel.shmmax
[root@dsc01 mnt]# sysctl -p
错误三：创建数据库失败
报错如下：
[dmdba@dsc01 dsc_config]$ /dm/dmdbms/bin/dminit control=/dm/dmdbms/dsc_config/dminit.ini ...... write to dir [+DMDATA/data/DSC]. fsm_file_add group_id 4, file_id 0, size_in_pages 32768, path +DMDATA/data/MAIN.dbf failed, code -7004 Please check whether exist file or directory with the same name, code:[-7014] You may get more details in file ../log/dm_DSC0_202212.log fail to init db.
查看日志 ../log/dm_DSC0_202212.log ，空间不足了 , 减小参数文件里配置的数据文件大小，重新执行
2022-12-08 17:48:55.401 [ERROR] dminit P0000020632 T0000000000000020632 os_file_create_ex->os_asm_file_create: [path: +DMDATA/data/MAIN.dbf]: [CODE:-523] Out of space
错误四：达梦官方文档存在部分错误
1.2.8 初始化 DB 环境
## 在 db0 节点执行初始化 db 命令
[dmdba@~]# vi /dm/dmdbms/bin/dminit control=/dm/dmdbms/dsc_config/init/dminit.ini
没有 vi 。
1.2.11 注册 CSS 、 ASM 、 DMSERVER 后台服务
[root@~]# /dm/dmdbms/script/root/dm_service_installer.sh -t dmserver -dm_ini /dm/dmdbms/dsc_config/DSC0/dm.ini -dcr_ini /dm/dmdbms/dsc_config/dmdcr.ini -y DmASMSvrServiceASM.service -m -p DSC
这里的 -m 后需要接 mount 或 open 。
参考文档
https://eco.dameng.com/document/dm/zh-cn/ops/DSC-installation-cluster.html https://eco.dameng.com/document/dm/zh-cn/pm/dsc-monitor.html
###chenjuchao 20221208 20:25###
