从mongodb3.2开始mongodb默认支持WiredTiger存储引擎，对于3.2之前的版本可以使用参数指定存储引擎。 mongo目前4.0+版本的默认存储引擎使用的wiredTiger存储引擎。
storage:
engine: wiredTiger
wireTiger:
[存储引擎的参数设置]WiredTiger是各种操作应用的理想选择，因此是MongoDB的默认存储引擎。它应该是所有新应用程序的起点，除了您需要内存或加密存储引擎的特定功能的情况。
WiredTiger存储引擎的主要优势：
最大化可用缓存： WiredTiger最大限度地利用可用内存作为缓存来减少I / O瓶颈。使用了两个缓存：WiredTiger缓存和文件系统缓存。WiredTiger缓存存储未压缩的数据并提供类似内存的性能。操作系统的文件系统缓存存储压缩数据。当在WiredTiger缓存中找不到数据时，WiredTiger将在文件系统缓存中查找数据。
MONGODB 的版本与 wiredTiger 之间的版本关系
MONGODB 6.0 --- WiredTiger 11.0.1 2022.June.24
MONGODB 5.0 --- WiredTiger 10.0.2 2021.November.30
MONGODB 4.4 --- WiredTiger 10.0.2 2021.November.30
MONGODB 4.2 --- WiredTiger 3.3.0 2020, March ,20
所以如果从wiredTiger 的版本上看 4.4 和 5.0 使用的数据库引擎的版本是一致的。

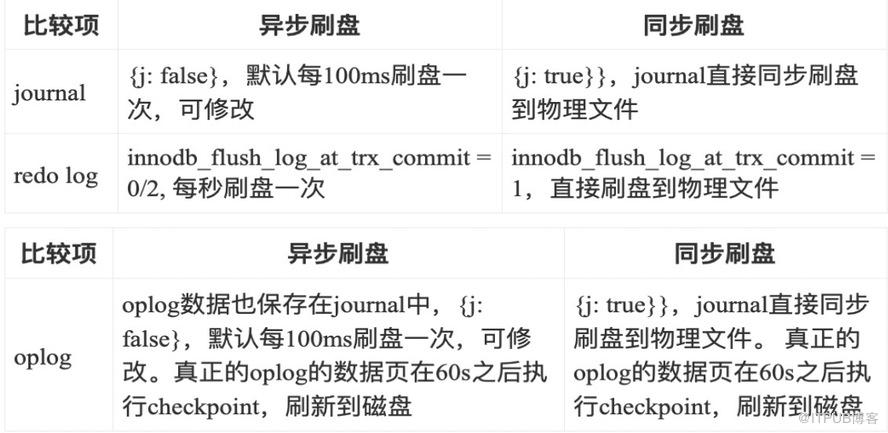

1.oplog server层，类似于binlog
2.journal log 引擎层，WAL，类似redo log 默认100ms刷盘一次，storage.journal.enabled 决定是否开启journal，storage.journal.commitInternalMs 决定 journal 刷盘的间隔，默认为100ms，用户也可以通过写入时指定 writeConcern 为 {j: ture} 来每次写入时都确保 journal 刷盘.
Starting in MongoDB 4.0, you cannot specify
--nojournal
option or
storage.journal.enabled: false
for replica set members that use the WiredTiger storage engine.
3.checkpoint 默认1分钟一次，调整可以参考下面参数
在mongodb启动参数里面可以修改wiredtiger的配置 –wiredTigerEngineConfigString "checkpoint=(wait=10,log_size=2GB)"
mongodb 3.0 2017-08-20T13:51:13.516+0000 I STORAGE [initandlisten] wiredtiger_open config: create,cache_size=2G, session_max=20000,eviction=(threads_max=4),statistics=(fast),log=(enabled=true,archive=true,path=journal, compressor=snappy),file_manager=(close_idle_time=100000),checkpoint=(wait=60,log_size=2GB),statistics_log=(wait=0), mongodb 3.4 2017-10-20T09:26:55.931+0000 I STORAGE [initandlisten] wiredtiger_open config: create,cache_size=30720M, session_max=20000,eviction=(threads_min=4,threads_max=4),config_base=false,statistics=(fast),log=(enabled=true, archive=true,path=journal,compressor=snappy),file_manager=(close_idle_time=100000),checkpoint=(wait=60, log_size=2GB),statistics_log=(wait=0),
checkpoint = ( |
periodically checkpoint the database. Enabling the checkpoint server uses a session from the configured session_max. | a set of related configuration options defined below. |
log_size |
wait for this amount of log record bytes to be written to the log between each checkpoint. If non-zero, this value will use a minimum of the log file size. A database can configure both log_size and wait to set an upper bound for checkpoints; setting this value above 0 configures periodic checkpoints. | an integer between 0 and 2GB; default
0. |
wait |
seconds to wait between each checkpoint; setting this value above 0 configures periodic checkpoints. | an integer between 0 and 100000; default
0. |
) |
|
|
4.内存相关
mongodb从3.4版本开始默认使用内存为下面两个中的最大一个：
- 50% of (RAM - 1 GB)
- 256MB
cacheSizeGB 可根据脏数据比例适当调整,mongodb 默认使用内存的50%作为cache，因为这里类似postgresql还有Linux系统缓存机制的参数，如果是双缓存。
与内存相关的参数 eviction_trigger ，保证内存使用达到多少比例，开始将内存刷出， eviction_target 则是当内存占比大于默认值，则一直刷出。系统写入压力过大时，可适当调整改参数。
db.adminCommand( { "setParameter": 1, "wiredTigerEngineRuntimeConfig": "eviction=(threads_min=3,threads_max=6),checkpoint=(wait=120),eviction_trigger=80,eviction_target=50"})
eviction = ( |
eviction configuration options. | a set of related configuration options defined below. |
threads_max |
maximum number of threads WiredTiger will start to help evict pages from cache. The number of threads started will vary depending on the current eviction load. | an integer between 1 and 20; default
1. |
threads_min |
minimum number of threads WiredTiger will start to help evict pages from cache. The number of threads currently running will vary depending on the current eviction load. | an integer between 1 and 20; default
1. |
) |
|
|
eviction_dirty_target |
continue evicting until the cache has less dirty memory than the value, as a percentage of the total cache size. Dirty pages will only be evicted if the cache is full enough to trigger eviction. | an integer between 10 and 99; default
80. |
eviction_target |
continue evicting until the cache has less total memory than the value, as a percentage of the total cache size. Must be less than
eviction_trigger. |
an integer between 10 and 99; default
80. |
eviction_trigger |
trigger eviction when the cache is using this much memory, as a percentage of the total cache size. | an integer between 10 and 99; default
95. |
shared_cache = ( |
shared cache configuration options. A database should configure either a cache_size or a shared_cache not both. | a set of related configuration options defined below. |
chunk |
the granularity that a shared cache is redistributed. | an integer between 1MB and 10TB; default
10MB. |
name |
name of a cache that is shared between databases. | a string; default empty. |
reserve |
amount of cache this database is guaranteed to have available from the shared cache. This setting is per database. Defaults to the chunk size. | an integer; default
0. |
size |
maximum memory to allocate for the shared cache. Setting this will update the value if one is already set. | an integer between 1MB and 10TB; default
500MB. |
) |
|
|
cache_size |
maximum heap memory to allocate for the cache. A database should configure either a cache_size or a shared_cache not both. | an integer between 1MB and 10TB; default
100MB. |
- wiredTiger cacheSize
通过db.serverStatus().wiredTiger.cache 查看maximum bytes configured字段，为当前服务器的cachesize。如果需要调整，动态不重启调整
db.adminCommand({setParameter:1, wiredTigerEngineRuntimeConfig:'cache_size=600M'}) ，重启时失效. 也可以在mongo的配置文件修改，然后重启永久生效。
5.并发
- wiredTigerConcurrentReadTransactions
允许并发读取的最大值，默认128，当压力大时，可以设置调大，一般不调节。
db.adminCommand( { setParameter: 1, wiredTigerConcurrentReadTransactions:} ) -
wiredTigerConcurrentWriteTransactions
并发写最大数，默认128可以查看： db.serverStatus().wiredTiger.concurrentTransactions
6.内存释放
-
wiredTiger的tcmalloc
wiredTiger使用tcmalloc作为申请内存的组件。tcmalloc申请内存会在主机内部缓存起来，类似与内部维护一个内存池，不必每次从操作系统申请内存，开销小。但是问题是tcmalloc内存的释放的速度不可控，容易造成内存内存的free buffer过大，却没有还给操作系统。导致oom,mongo被kill。
可以通过db.serverStatus().tcmalloc查看tcmalloc内存的使用情况。
tcmalloc提供了释放速度字段来调节缓存的释放速度tcmallocReleaseRate，从0-9，0表示永不释放，默认是1，也不是越大越好释放越快，也就和原始的malloc没有什么区别了。如果可以设置为中间值，然后观察性能吧。
mongo命令 ： db.adminCommand({setParameter:1, tcmallocReleaseRate:4})
6. 副本集的flowControl机制
mongodb副本集写入时默认是写入majority，(1 + 节点数的一半。 3个节点时，majority=2)，如果P (primary) -- S (secondary) --A (arbiter)， P ,S有一个节点挂掉或者从节点性能问题，严重落后主节点，会导致写入不足2个节点。然后新的P节点就会触发flowcontrol机制，限制写入，等待从节点赶上。有时为了让mongo先恢复写速度，可以调节参数。
db.adminCommand({setParameter:1, flowControlMinTicketsPerSecond:10000}) // 可以调大flowcontrol的漏洞的ticket的数目，
db.adminCommand({setParameter:1, enableFlowControl: false}) // 不行就直接关闭flowControl。
关于w:majority. 按道理说，服务器默认的写入是majority(rs.conf() 查看)，那么为什么没有触发客户端的等待呢？在客户端强制设置w:majority时，客户完全hang请求（达不到w:majority时）。rs.conf()
"getLastErrorDefaults" : {
"w" : 1, "wtimeout" : 0 }
"writeConcernMajorityJournalDefault" : true, 这个字段表示的是，如果客户端写入为majority但是没有设置journal.那么默认也要等待写入journal。
getLastErrorDefaults 表示写入的确认个数，和等待时间。
{ w:
