MT6765 Design Notice

节选部分资料内容：

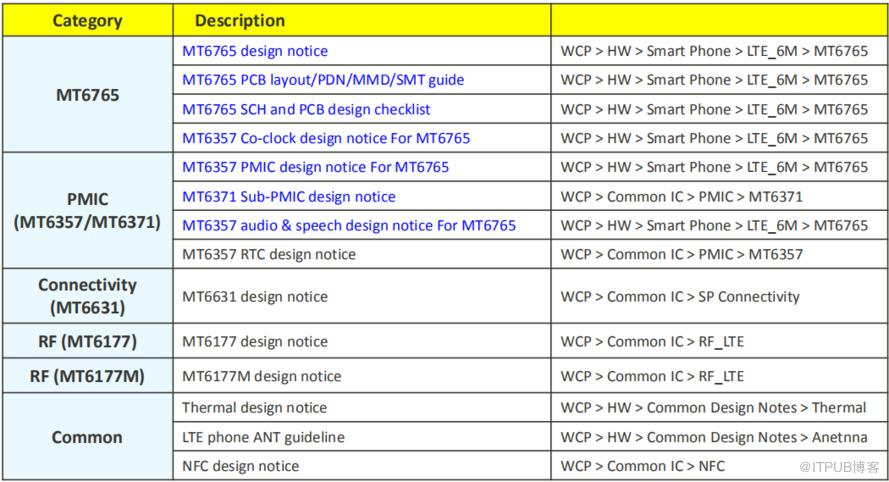

MT6765 Platform Design Notice

MT6765 Turnkey solution design notice

MT6765平台芯片组:

http://bbs.16rd.com/thread-456076-1-1.html

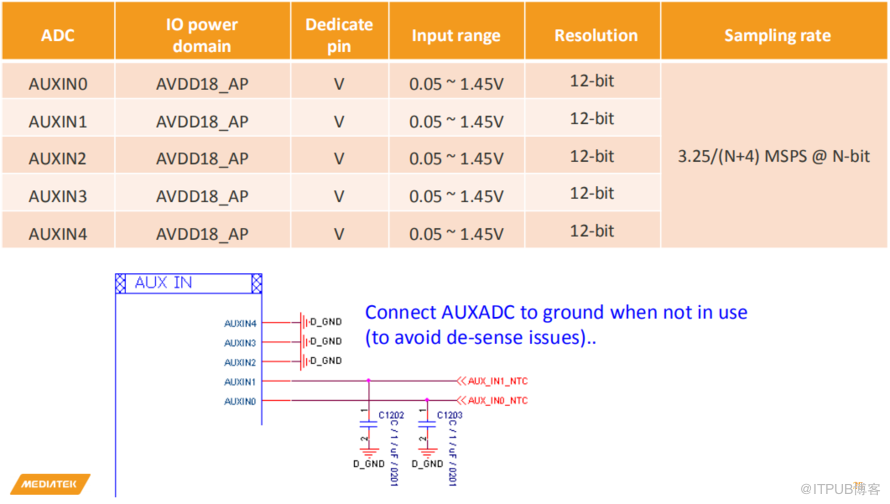

Design Notice: Auxiliary ADC (1/2)

MT6765 has x5 AUXADC channels

• 5 auxiliary ADC channels (AUXIN[4:0])

• Supports max. 1.45V input range

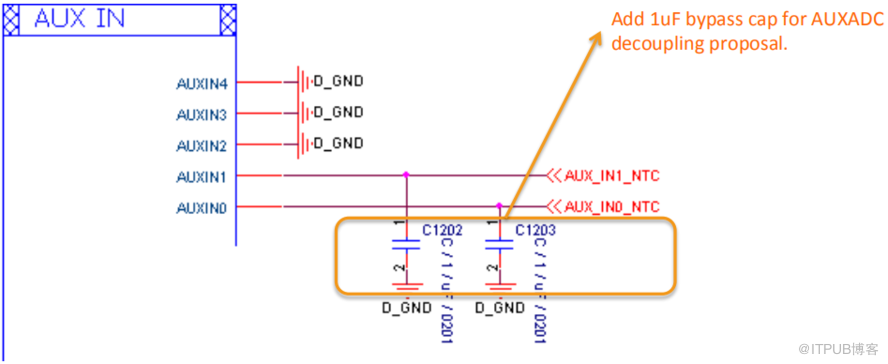

Design Notice: Auxiliary ADC (2/2)

AUXADC suggest to add decouple cap.

• Add bypass cap near AP when using the AUX_ADC pin for decoupling RF noise

• If all AUX_ADC ports are not used as ADC, you can not use all of them as GPI or EINT function
