1.前言

1.1 sms4j是什么？

sms4j：让发送短信变得更简单，是一款开源、优雅、开箱即用、切换灵活。功能丰富等特性的发短信的开源好用开源好用的轮子，支持的短信提供商也比较的多，支持的短信提供厂商有：阿里云、容联云、天翼云、亿美软通、华为云短信、京东云短信、 网易云信、腾讯云短信、合一短信、云片短信、助通短信、鼎众短信、联麓短信、七牛云短信 、创蓝短信、极光短信、布丁云V2 、中国移动 云MAS 、百度云短信、螺丝帽短信、SUBMAIL短信、 单米短信；官网上也有详细的说明，本文以华为云短信为例。

1.2 缘由

由于最近项目需要一个发送短信的功能，所以我就选择想集成sms4j这个开源的轮子，其实有其他同事写好的接口可以调用，然后我一对比一看，还是集成sms4j实现比较优雅一点，毕竟不用去调用其他的服务接口，本项目中就直接实现了这个功能，避免了网路接口调用，做到了服务自己的高内聚低耦合，然后就看了下sms4j的官网，也看了sms4j的源码，华为云短信写的还是优雅的，就是不支持不带短信模版id的实现，所以我决定修改sms4j的源码来实现，sms4j的厂商yaml配置差异化的配置都是一个map注入的，具体的可以去看下它的源码，写的还是可以的，每一个短信厂商都有一个单列的工厂类，然后会给每个单列的工厂类生成一个SmsBlend 动态代理类(jdk的动态代理类，代理的对象是具体的短信厂商实现类，比如：HuaweiSmsImpl)，然后在短信方法调用之前和之后会有一系列的处理器类，具体的可以去看源码。

1.3 官方地址

https://sms4j.com/https://gitee.com/dromara/sms4jhttps://github.com/dromara/SMS4J

sms4j官方提供了两个版本：2.x和3.x，具体可以参看官方文档，本文使用3.x的版本。

1.4 华为短信接口响应码文档地址

https://support.huaweicloud.com/api-msgsms/sms_05_0050.html#toTop

2.配置

2.1 依赖配置

<dependency>   <groupId>org.dromara.sms4jgroupId>   <artifactId>sms4j-spring-boot-starterartifactId>   <version>3.2.1version>dependency>

版本可以看如下官方说明：

https://sms4j.com/title/log.html

2.2 yaml配置

nacos项目yaml配置如下：

sms:  # 标注从yml读取配置  config-type: yaml  blends:    # 自定义的标识，也就是configId这里可以是任意值（最好不要是中文）    hw1:      # 接入地址      url: https://smsapi.cn-north-4.myhuaweicloud.com:443      # 国内短信签名通道号      sender: xxxxx      # 厂商标识，标定此配置是哪个厂商，详细请看厂商标识介绍部分      supplier: huawei      # 您的accessKey      access-key-id: xxxxx      # 您的accessKeySecret      access-key-secret: xxxxxxx      # 您的短信签名      signature: xxxxxx      # 模板ID 非必须配置，如果使用sendMessage的快速发送需此配置      #template-id: xxxxxxxx      # 您的sdkAppId      sdk-app-id: hw1      # 自定义的标识，也就是configId这里可以是任意值（最好不要是中文）

3.重写

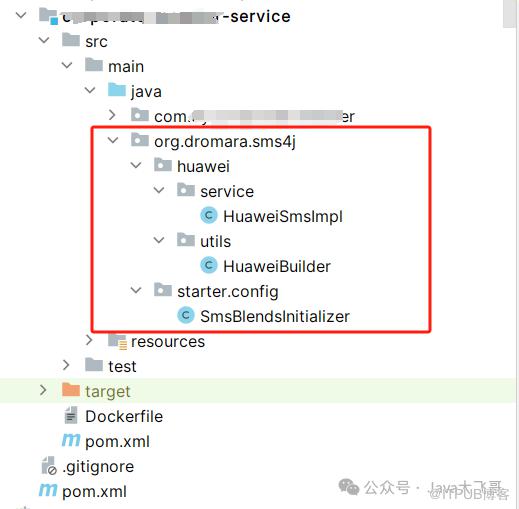

3.1项目中重写如下类

3.2 HuaweiSmsImpl类

package org.dromara.sms4j.huawei.service;
import cn.hutool.core.collection.CollUtil;import cn.hutool.core.map.MapUtil;import cn.hutool.json.JSONObject;import lombok.extern.slf4j.Slf4j;import org.apache.commons.lang3.StringUtils;import org.dromara.sms4j.api.entity.SmsResponse;import org.dromara.sms4j.comm.constant.Constant;import org.dromara.sms4j.comm.constant.SupplierConstant;import org.dromara.sms4j.comm.delayedTime.DelayedTime;import org.dromara.sms4j.comm.exception.SmsBlendException;import org.dromara.sms4j.huawei.config.HuaweiConfig;import org.dromara.sms4j.huawei.utils.HuaweiBuilder;import org.dromara.sms4j.provider.service.AbstractSmsBlend;
import java.util.ArrayList;import java.util.LinkedHashMap;import java.util.List;import java.util.Map;import java.util.Objects;import java.util.UUID;import java.util.concurrent.Executor;import java.util.stream.Collectors;
import static org.dromara.sms4j.huawei.utils.HuaweiBuilder.listToString;
@Slf4jpublic class HuaweiSmsImpl extends AbstractSmsBlend {
    private int retry = 0;
    public HuaweiSmsImpl(HuaweiConfig config, Executor pool, DelayedTime delayed) {        super(config, pool, delayed);    }
    public HuaweiSmsImpl(HuaweiConfig config) {        super(config);    }
    @Override    public String getSupplier() {        return SupplierConstant.HUAWEI;    }
    @Override    public SmsResponse sendMessage(String phone, String message) {        LinkedHashMap<String, String> mes = new LinkedHashMap<>();        mes.put(UUID.randomUUID().toString().replaceAll("-", ""), message);        return sendMessage(phone, getConfig().getTemplateId(), mes);    }
    @Override    public SmsResponse sendMessage(String phone, LinkedHashMap<String, String> messages) {        if (Objects.isNull(messages)) {            messages = new LinkedHashMap<>();        }        return sendMessage(phone, getConfig().getTemplateId(), messages);    }
    @Override    public SmsResponse sendMessage(String phone, String templateId, LinkedHashMap<String, String> messages) {        if (Objects.isNull(messages)) {            messages = new LinkedHashMap<>();        }        String url = getConfig().getUrl() + Constant.HUAWEI_REQUEST_URL;        List<String> list = new ArrayList<>();        for (Map.Entry<String, String> entry : messages.entrySet()) {            list.add(entry.getValue());        }        String mess = "";        if (StringUtils.isNotEmpty(templateId)) {            mess = listToString(list);        } else {            if (list.size() == 1) {                mess = list.stream().collect(Collectors.joining(""));            } else {                mess = list.stream().collect(Collectors.joining(","));            }        }        if (StringUtils.isEmpty(mess)) {            throw new RuntimeException("华为发送短信消息不为空!");        }
        String requestBody = HuaweiBuilder.buildRequestBody(getConfig().getSender(), phone, templateId, mess, getConfig().getStatusCallBack(), getConfig().getSignature());
        Map<String, String> headers = MapUtil.newHashMap(3, true);        headers.put("Authorization", Constant.HUAWEI_AUTH_HEADER_VALUE);        headers.put("X-WSSE", HuaweiBuilder.buildWsseHeader(getConfig().getAccessKeyId(), getConfig().getAccessKeySecret()));        headers.put("Content-Type", Constant.FROM_URLENCODED);        SmsResponse smsResponse;        try {            smsResponse = getResponse(http.postJson(url, headers, requestBody));        } catch (SmsBlendException e) {            smsResponse = new SmsResponse();            smsResponse.setSuccess(false);            smsResponse.setData(e.getMessage());        }        if (smsResponse.isSuccess() || retry == getConfig().getMaxRetries()) {            retry = 0;            return smsResponse;        }        return requestRetry(phone, templateId, messages);    }
    private SmsResponse requestRetry(String phone, String templateId, LinkedHashMap<String, String> messages) {        http.safeSleep(getConfig().getRetryInterval());        retry++;        log.warn("短信第 {} 次重新发送", retry);        return sendMessage(phone, templateId, messages);    }
    @Override    public SmsResponse massTexting(List<String> phones, String message) {        return sendMessage(CollUtil.join(phones, ","), message);    }
    @Override    public SmsResponse massTexting(List<String> phones, String templateId, LinkedHashMap<String, String> messages) {        if (Objects.isNull(messages)) {            messages = new LinkedHashMap<>();        }        return sendMessage(CollUtil.join(phones, ","), templateId, messages);    }
    private SmsResponse getResponse(JSONObject resJson) {        SmsResponse smsResponse = new SmsResponse();        smsResponse.setSuccess("000000".equals(resJson.getStr("code")));        smsResponse.setData(resJson);        smsResponse.setConfigId(getConfigId());        return smsResponse;    }
}

3.3 HuaweiBuilder类

package org.dromara.sms4j.huawei.utils;
import cn.hutool.core.codec.Base64;import cn.hutool.core.date.DateUtil;import org.apache.commons.lang3.StringUtils;import org.dromara.sms4j.comm.constant.Constant;import org.dromara.sms4j.comm.exception.SmsBlendException;
import javax.net.ssl.HttpsURLConnection;import javax.net.ssl.SSLContext;import javax.net.ssl.TrustManager;import javax.net.ssl.X509TrustManager;import java.io.UnsupportedEncodingException;import java.net.URLEncoder;import java.security.MessageDigest;import java.security.NoSuchAlgorithmException;import java.security.cert.X509Certificate;import java.util.Date;import java.util.HashMap;import java.util.List;import java.util.Map;import java.util.UUID;
public class HuaweiBuilder {        private HuaweiBuilder() {    }
    /**     * buildWsseHeader     * 构造X-WSSE参数值     *     * @author :Wind     */    public static String buildWsseHeader(String appKey, String appSecret) {        if (null == appKey || null == appSecret || appKey.isEmpty() || appSecret.isEmpty()) {            System.out.println("buildWsseHeader(): appKey or appSecret is null.");            return null;        }        String time = dateFormat(new Date());        // Nonce        String nonce = UUID.randomUUID().toString().replace("-", "");        MessageDigest md;        byte[] passwordDigest;
        try {            md = MessageDigest.getInstance("SHA-256");            md.update((nonce + time + appSecret).getBytes());            passwordDigest = md.digest();        } catch (NoSuchAlgorithmException e) {            throw new SmsBlendException(e);        }        // PasswordDigest        String passwordDigestBase64Str = Base64.encode(passwordDigest);        //若passwordDigestBase64Str中包含换行符,请执行如下代码进行修正        //passwordDigestBase64Str = passwordDigestBase64Str.replaceAll("[\\s*\t\n\r]", "");        return String.format(Constant.HUAWEI_WSSE_HEADER_FORMAT, appKey, passwordDigestBase64Str, nonce, time);    }
    static void trustAllHttpsCertificates() throws Exception {        TrustManager[] trustAllCerts = new TrustManager[]{                new X509TrustManager() {                    @Override                    public void checkClientTrusted(X509Certificate[] chain, String authType) {                    }
                    @Override                    public void checkServerTrusted(X509Certificate[] chain, String authType) {                    }
                    @Override                    public X509Certificate[] getAcceptedIssuers() {                        return null;                    }                }        };        SSLContext sc = SSLContext.getInstance("SSL");        sc.init(null, trustAllCerts, null);        HttpsURLConnection.setDefaultSSLSocketFactory(sc.getSocketFactory());    }
    /**     * buildRequestBody     *
构造请求Body体     *     * @param sender         国内短信签名通道号     * @param receiver       短信接收者     * @param templateId     短信模板id     * @param templateParas  模板参数     * @param statusCallBack 短信状态报告接收地     * @param signature      | 签名名称,使用国内短信通用模板时填写     * @author :Wind     */    public static String buildRequestBody(String sender, String receiver, String templateId, String templateParas,                                          String statusCallBack, String signature) {        if (null == sender || null == receiver || sender.isEmpty() || receiver.isEmpty()) {            System.out.println("buildRequestBody(): sender, receiver is null.");            return null;        }        Map<String, String> map = new HashMap<>();
        map.put("from", sender);        map.put("to", receiver);        if (StringUtils.isNotEmpty(templateId)) {            map.put("templateId", templateId);            if (null != templateParas && !templateParas.isEmpty()) {                map.put("templateParas", templateParas);            }        }else {            map.put("body", templateParas);        }        if (null != statusCallBack && !statusCallBack.isEmpty()) {            map.put("statusCallback", statusCallBack);        }        if (null != signature && !signature.isEmpty()) {            map.put("signature", signature);        }
        StringBuilder sb = new StringBuilder();        String temp;
        for (String s : map.keySet()) {            try {                temp = URLEncoder.encode(map.get(s), "UTF-8");            } catch (UnsupportedEncodingException e) {                throw new SmsBlendException(e);            }            sb.append(s).append("=").append(temp).append("&");        }
        return sb.deleteCharAt(sb.length() - 1).toString();    }
    public static String listToString(List<String> list) {        if (null == list || list.isEmpty()) {            return null;        }        StringBuilder stringBuffer = new StringBuilder();        stringBuffer.append("[\"");        for (String s : list) {            stringBuffer.append(s);            stringBuffer.append("\"");            stringBuffer.append(",");            stringBuffer.append("\"");        }        stringBuffer.delete(stringBuffer.length() - 3, stringBuffer.length() - 1);        stringBuffer.append("]");        return stringBuffer.toString();    }
    private static String dateFormat(Date date) {        return DateUtil.format(date, Constant.HUAWEI_JAVA_DATE);    }
}

3.4 SmsBlendsInitializer类

package org.dromara.sms4j.starter.config;
import cn.hutool.core.util.StrUtil;import cn.hutool.json.JSONObject;import cn.hutool.json.JSONUtil;import lombok.extern.slf4j.Slf4j;import org.dromara.sms4j.aliyun.config.AlibabaFactory;import org.dromara.sms4j.api.SmsBlend;import org.dromara.sms4j.api.universal.SupplierConfig;import org.dromara.sms4j.api.verify.PhoneVerify;import org.dromara.sms4j.cloopen.config.CloopenFactory;import org.dromara.sms4j.comm.constant.Constant;import org.dromara.sms4j.comm.enumerate.ConfigType;import org.dromara.sms4j.comm.utils.SmsUtils;import org.dromara.sms4j.core.datainterface.SmsReadConfig;import org.dromara.sms4j.core.factory.SmsFactory;import org.dromara.sms4j.core.proxy.EnvirmentHolder;import org.dromara.sms4j.core.proxy.SmsProxyFactory;import org.dromara.sms4j.core.proxy.processor.BlackListProcessor;import org.dromara.sms4j.core.proxy.processor.BlackListRecordingProcessor;import org.dromara.sms4j.core.proxy.processor.CoreMethodParamValidateProcessor;import org.dromara.sms4j.core.proxy.processor.RestrictedProcessor;import org.dromara.sms4j.core.proxy.processor.SingleBlendRestrictedProcessor;import org.dromara.sms4j.ctyun.config.CtyunFactory;import org.dromara.sms4j.dingzhong.config.DingZhongFactory;import org.dromara.sms4j.emay.config.EmayFactory;import org.dromara.sms4j.huawei.config.HuaweiFactory;import org.dromara.sms4j.jdcloud.config.JdCloudFactory;import org.dromara.sms4j.lianlu.config.LianLuFactory;import org.dromara.sms4j.netease.config.NeteaseFactory;import org.dromara.sms4j.provider.config.SmsConfig;import org.dromara.sms4j.provider.factory.BaseProviderFactory;import org.dromara.sms4j.provider.factory.ProviderFactoryHolder;import org.dromara.sms4j.qiniu.config.QiNiuFactory;import org.dromara.sms4j.starter.adepter.ConfigCombineMapAdeptor;import org.dromara.sms4j.tencent.config.TencentFactory;import org.dromara.sms4j.unisms.config.UniFactory;import org.dromara.sms4j.yunpian.config.YunPianFactory;import org.dromara.sms4j.zhutong.config.ZhutongFactory;import org.springframework.beans.factory.ObjectProvider;
import java.util.HashMap;import java.util.List;import java.util.Map;import java.util.ServiceLoader;

@Slf4jpublic class SmsBlendsInitializer {    private final List<BaseProviderFactorySmsBlend, ? extends SupplierConfig>> factoryList;
    private final SmsConfig smsConfig;    private final Map<String, Map<String, Object>> blends;    private final ObjectProvider<SmsReadConfig> extendsSmsConfigs;
    public SmsBlendsInitializer(List<BaseProviderFactorySmsBlend, ? extends SupplierConfig>> factoryList,                                SmsConfig smsConfig,                                Map<String, Map<String, Object>> blends,                                ObjectProvider<SmsReadConfig> extendsSmsConfigs) {        this.factoryList = factoryList;        this.smsConfig = smsConfig;        this.blends = blends;        this.extendsSmsConfigs = extendsSmsConfigs;        onApplicationEvent();    }
    public void onApplicationEvent() {        this.registerDefaultFactory();        // 注册短信对象工厂        ProviderFactoryHolder.registerFactory(factoryList);
        if (ConfigType.YAML.equals(this.smsConfig.getConfigType())) {            //持有初始化配置信息            Map<String, Map<String, Object>> blendsInclude = new ConfigCombineMapAdeptor<String, Map<String, Object>>();            blendsInclude.putAll(this.blends);            int num = 0;            for (SmsReadConfig smsReadConfig : extendsSmsConfigs) {                String key = SmsReadConfig.class.getSimpleName() + num;                Map<String, Object> insideMap = new HashMap<>();                insideMap.put(key, smsReadConfig);                blendsInclude.put(key, insideMap);                num++;            }            EnvirmentHolder.frozenEnvirmet(smsConfig, blendsInclude);            //注册执行器实现            SmsProxyFactory.addProcessor(new RestrictedProcessor());            SmsProxyFactory.addProcessor(new BlackListProcessor());            SmsProxyFactory.addProcessor(new BlackListRecordingProcessor());            SmsProxyFactory.addProcessor(new SingleBlendRestrictedProcessor());            //如果手机号校验器存在实现，则注册手机号校验器            ServiceLoader<PhoneVerify> loader = ServiceLoader.load(PhoneVerify.class);            if (loader.iterator().hasNext()) {                loader.forEach(f -> {                    SmsProxyFactory.addProcessor(new CoreMethodParamValidateProcessor(f));                });            } else {                //这里需要把处理器注释掉,否则smsBlend.massTexting(phones, msg)接口调用会抛异常：cant send message to null!，这里改造就不需要这些前置和后置的处理器了                //SmsProxyFactory.addProcessor(new CoreMethodParamValidateProcessor(null));            }
            // 解析供应商配置            for (String configId : blends.keySet()) {                Map<String, Object> configMap = blends.get(configId);                Object supplierObj = configMap.get(Constant.SUPPLIER_KEY);                String supplier = supplierObj == null ? "" : String.valueOf(supplierObj);                supplier = StrUtil.isEmpty(supplier) ? configId : supplier;                BaseProviderFactory<SmsBlend, SupplierConfig> providerFactory = (BaseProviderFactory<SmsBlend, org.dromara.sms4j.api.universal.SupplierConfig>) ProviderFactoryHolder.requireForSupplier(supplier);                if (providerFactory == null) {                    log.warn("创建\"{}\"的短信服务失败，未找到供应商为\"{}\"的服务", configId, supplier);                    continue;                }                configMap.put("config-id", configId);                SmsUtils.replaceKeysSeperator(configMap, "-", "_");                JSONObject configJson = new JSONObject(configMap);                org.dromara.sms4j.api.universal.SupplierConfig supplierConfig = JSONUtil.toBean(configJson, providerFactory.getConfigClass());                SmsFactory.createSmsBlend(supplierConfig);            }        }

    }
    /**     * 注册默认工厂实例     */    private void registerDefaultFactory() {        ProviderFactoryHolder.registerFactory(AlibabaFactory.instance());        ProviderFactoryHolder.registerFactory(CloopenFactory.instance());        ProviderFactoryHolder.registerFactory(CtyunFactory.instance());        ProviderFactoryHolder.registerFactory(EmayFactory.instance());        ProviderFactoryHolder.registerFactory(HuaweiFactory.instance());        ProviderFactoryHolder.registerFactory(NeteaseFactory.instance());        ProviderFactoryHolder.registerFactory(TencentFactory.instance());        ProviderFactoryHolder.registerFactory(UniFactory.instance());        ProviderFactoryHolder.registerFactory(YunPianFactory.instance());        ProviderFactoryHolder.registerFactory(ZhutongFactory.instance());        ProviderFactoryHolder.registerFactory(LianLuFactory.instance());        ProviderFactoryHolder.registerFactory(DingZhongFactory.instance());        ProviderFactoryHolder.registerFactory(QiNiuFactory.instance());        if (SmsUtils.isClassExists("com.jdcloud.sdk.auth.CredentialsProvider")) {            ProviderFactoryHolder.registerFactory(JdCloudFactory.instance());        }        log.debug("加载内置运营商完成！");    }
}

4.测试

4.1 HwSmsService类

package xxxxx.service.impl;
import com.alibaba.fastjson.JSON;import lombok.extern.slf4j.Slf4j;import org.dromara.sms4j.api.SmsBlend;import org.dromara.sms4j.api.entity.SmsResponse;import org.dromara.sms4j.core.factory.SmsFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;
import java.util.List;import java.util.Objects;
@Slf4j@Servicepublic class HwSmsService {

    public SmsBlend getSmsBlend() {        SmsBlend hw1 = SmsFactory.getSmsBlend("hw1");        return hw1;    }

    public Boolean sendMsg(List phones, String msg) {        SmsBlend smsBlend = this.getSmsBlend();        SmsResponse smsResponse = smsBlend.massTexting(phones, msg);        log.info("HwSmsService.smsResponse:{}", JSON.toJSONString(smsResponse));        if (smsResponse.isSuccess()) {            return Boolean.TRUE;        }        return Boolean.FALSE;    }
}

4.2 TestController测试类

package xxxxx.controller;
import com.alibaba.fastjson.JSON;import com.xxxxx.impl.HwSmsService;import com.xxl.job.core.biz.model.ReturnT;import lombok.extern.slf4j.Slf4j;import org.dromara.sms4j.api.SmsBlend;import org.dromara.sms4j.api.entity.SmsResponse;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;
import java.util.Collections;import java.util.List;
@Slf4j@RestController@RequestMapping("/test")public class TestController {        @Autowired    private HwSmsService hwSmsService;
    @GetMapping("/test3")    public SmsResponse test3() {        SmsBlend smsBlend = hwSmsService.getSmsBlend();        SmsResponse response = smsBlend.sendMessage("xxxxxxx手机号码", "【短信签名xxxx】 测试短信发送");        log.info("smsResponse:{}", JSON.toJSONString(response));        return response;   }
    @GetMapping("/test8")    public SmsResponse test8() {       SmsBlend smsBlend = hwSmsService.getSmsBlend();       SmsResponse response = smsBlend.massTexting(Collections.singletonList("xxxxxxx手机号码"), "【短信签名xxxx】测试短信发送");       log.info("smsResponse:{}", JSON.toJSONString(response));       return response;    }    }

经过上面源码的修改，输入正确的手机号和正确的短信内容(注意这里需要注意的是短信内容里面需要带有短信签名信息【短信签名xxxx】+ 文本字符串(注意不要有-，如果有-会被转换替换为_,具体可以去看源码，不符合你的需求可以改源码实现))，经过上面的修改，这两个接口就可以正常调用了，这两个接口亲测是可以收到短信的，至于项目中使用这两个接口只需要准备手机号和构造文本短信，例如：文本短信模版是：【短信签名xxxx】您的订单：orderNo已经支付，然后使用String的replace("orderNo",202407300000018)替换就可构造好短信内容，具体的根据自己的业务来搞一个短信模版，然后替换参数就得到一个文本的字符串，不使用短信模版id也可以发送短信，只需要短信内容里面包含短信签名即可。

5.总结

经过以上对sms4j的源码改造，实现了华为云发送不带短信模版id的短信，可以去把sms4j的源码拉下来，趴一趴看一看，集成到项目中，然后debug打断点跟一波源码，其实也还是简单的，华为云发短信是这种玩的，其他厂商的也是同样的道理，举一反三，触类旁通，从开源的轮子中可以学习到优秀的设计思想和设计实现，而不是CRUD，就算是写CRUD也要写了优雅、干净、整洁、帅气、复用性-可拓展性-鲁棒性-可读性-可维护性都好一点，这种bug自然是没有啥bug的，养成良好的编码习惯和编码风格可以降低很多的bug，我的分享到此结束了，希望我的分享对你有所启发和帮助，创作不易，都是亲身实践经验总结，不吝分享，还请不要照抄过去就成了你自己的原创，转发请标注原文及作者出处，发现抄袭(不带思考的原模原样的抄袭，没有多大意义，全成为千篇一律的文章，写文章还是要有一点思考、实践的，否则就是坑文水文，没有一点深度，过于肤浅)，则直接举报（或者可以联系本人来举报），请一键三连，么么么哒！
