决策引擎系统，是构建于规则引擎和流程引擎基础上，满足复杂业务决策的一套系统，可用于反欺诈、信用评估、风险决策、推荐系统、精准营销、内容审核、数据清洗等领域场景。

风控是决策引擎的一个重要应用场景，在金融、保险、电商、支付、游戏、社交等领域皆有应用，凡是和钱相关的业务都离不开风控决策引擎系统的支持保障。

目前流行的“智能风控”，即是以决策引擎为核心驱动，以机器学习 / AI 为大脑，在大数据基础上构建的通用风控能力。而决策引擎作为风控的核心系统，承担着复杂规则和多样化决策需求，今天要介绍的这款开源的“天网决策引擎”即满足了这样的诉求。

▌功能列表

规则、决策
规则集
决策树
决策表
决策矩阵
评分卡
决策流
冠军挑战者
条件分流
支持特征类型：int、string、bool、date、array、map
支持多种操作：==、!=、>、<、>=、<=、like、in、contain、before、after

▌快速开始

环境准备：go version go1.13 +
代码下载：

https://github.com/skyhackvip/risk_engine

Make 编译启动

cd risk_engine/#编译make build#启动make run#停止make stop

Golang 编译启动

cd risk_engine/mkdir -p dist/conf dist/bincp cmd/risk_engine/config.yaml dist/confcp demo dist/demo -rGO111MODULE=on CGO_ENABLED=0 go build -o dist/bin/risk_engine cmd/risk_engine/engine.go#启动cd dist/nohup bin/risk_engine -c conf/config.yaml >nohup.out 2>nohup.out &#停止pkill -f bin/risk_engine

Docker 镜像制作启动

cd risk_engine/#制作镜像docker build -t risk_engine:v1 .#启动镜像docker run -d --name risk_engine -p 8889:8889 risk_engine:v1#进入容器docker exec -it risk_engine /bin/sh#停止容器docker stop risk_engine

▌支持 HTTP API

查看当前决策流列表

GET http://HOST/engine/list

curl http://localhost:8889/engine/list

{  "code": 200,  "error": "",  "result": [{    "key": "flow_ruleset",    "version": "1.0",    "md5": "46ef45be94e2f3c1ca23cc4ce9fe8947"  }, {    "key": "flow_abtest",    "version": "1.0",    "md5": "886ac3943749e9cf27b5033aad84a9b9"  }, {    "key": "flow_conditional",    "version": "1.0",    "md5": "df7a8a9431e38f1729d8d6788987df23"  }, {    "key": "flow_matrix",    "version": "1.0",    "md5": "37a47768ccb2b48d8585a16693d2279f"  }]}

请求执行决策流

POST http://HOST/engine/run

curl -XPOST http://localhost:8889/engine/run -d '{"key":"flow_abtest", "version":"1.0", "req_id":"123456", "uid":1,"features":{"feature_1":5,"feature_2":3,"feature_3":55,"feature_4":32,"feature_5":33,"feature_6":231,"feature_7":2,"feature_8":4}}'

请求参数

参数名	必选	类型	说明
key	true	string	决策流唯一标识
version	true	string	决策流版本
req_id	true	string	本次请求 id
uid	true	string	用户 id
features	true	json	依赖特征值列表 {"feature_1":5,"feature_2":3,"feature_3":55}

返回结果

*****成功*****{    "code":200,    "error":"",    "result":{      "key": "flow_ruleset",      "req_id": "123456789",      "uid": 1,      "features": [{        "isDefault": false,        "name": "feature_2",        "value": true      }, {        "isDefault": false,        "name": "feature_y",        "value": "yyy"      }, {        "isDefault": false,        "name": "feature_x",        "value": "xxx"      }, {        "isDefault": false,        "name": "feature_3",        "value": "a"      }, {        "isDefault": false,        "name": "feature_1",        "value": 55      }],      "tracks": [{        "index": 1,        "label": "",        "name": "start_1"      }, {        "index": 2,        "label": "规则集1",        "name": "ruleset_1"      }],      "hit_rules": [{        "id": "2",        "label": "规则2",        "name": "rule_2"      }, {        "id": "1",        "label": "规则1",        "name": "rule_1"      }],      "node_results": [{        "IsBlock": true,        "Kind": "ruleset",        "Score": 101,        "Value": "reject",        "id": 1,        "label": "规则集1",        "name": "ruleset_1",        "tag": "internal"      }, {        "IsBlock": false,        "Kind": "start",        "Score": 0,        "Value": null,        "id": 0,        "label": "",        "name": "start_1",        "tag": ""      }],      "start_time": "2022-08-27 21:54:04",      "end_time": "2022-08-27 21:54:04",      "run_time": 0  }}****失败****{    "code":400,    "error":"入参错误",    "result":""}

features 所有特征值，包括执行过程中产生的衍生特征和赋值特征
hit_rules 命中的规则列表
tracks 流执行轨迹
node_results 各节点执行情况和产生值

▌支持 Demo 决策流案例

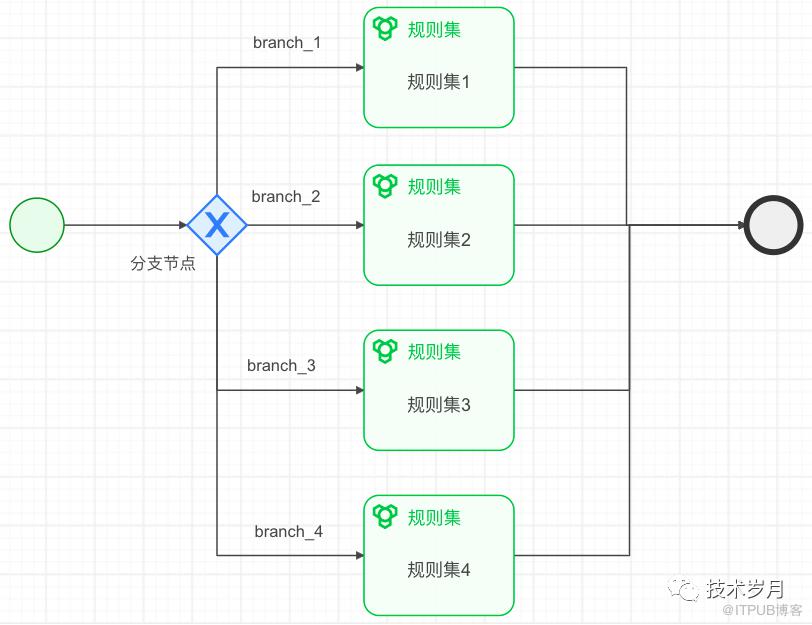

条件分流+规则集案例

yaml 源文件: demo/flow_conditional
key: flow_conditional
version: 1.0

curl -XPOST http://localhost:8889/engine/run -d '{"key":"flow_conditional", "version":"1.0", "req_id":"123456789", "uid":1,"features":{"feature_1":20,"feature_3":"xyzab","feature_4":55,"feature_5":44,"feature_6":"a","feature_a":false,"feature_b":1}}'

执行结果：

{  "code": 200,  "error": "",  "result": {    "key": "flow_conditional",    "req_id": "123456789",    "uid": 1,    "features": [{      "isDefault": false,      "name": "feature_4",      "value": 55    }, {      "isDefault": false,      "name": "feature_5",      "value": 44    }, {      "isDefault": false,      "name": "feature_6",      "value": "a"    }, {      "isDefault": false,      "name": "feature_a",      "value": false    }, {      "isDefault": false,      "name": "feature_b",      "value": 1    }, {      "isDefault": false,      "name": "feature_1",      "value": 20    }, {      "isDefault": false,      "name": "feature_3",      "value": "xyzab"    }],    "tracks": [{      "index": 1,      "label": "",      "name": "start_1"    }, {      "index": 2,      "label": "分支节点",      "name": "conditional_1"    }, {      "index": 3,      "label": "规则集3",      "name": "ruleset_3"    }, {      "index": 4,      "label": "",      "name": "end_1"    }],    "hit_rules": [{      "id": "5",      "label": "规则5",      "name": "rule_5"    }],    "node_results": [{      "IsBlock": true,      "Kind": "end",      "Score": 0,      "Value": null,      "id": 0,      "label": "",      "name": "end_1",      "tag": ""    }, {      "IsBlock": false,      "Kind": "start",      "Score": 0,      "Value": null,      "id": 0,      "label": "",      "name": "start_1",      "tag": ""    }, {      "IsBlock": false,      "Kind": "conditional",      "Score": 0,      "Value": "branch_3",      "id": 1,      "label": "分支节点",      "name": "conditional_1",      "tag": "ab"    }, {      "IsBlock": false,      "Kind": "ruleset",      "Score": 1,      "Value": "record",      "id": 3,      "label": "规则集3",      "name": "ruleset_3",      "tag": "internal"    }],    "start_time": "2022-08-27 22:04:11",    "end_time": "2022-08-27 22:04:11",    "run_time": 1  }}

执行过程分析：从开始节点 start_1，执行到条件分流节点 conditional_1，分流节点依赖feature_a（值为 false）、feature_b （值为 1），条件满足分支3，走到规则集3。

规则集3 中有一个规则5，对应 feature_3 （值为 xyzabc）LIKE xyz，满足条件并命中规则。输出 record 值，并记录规则命中列表，未阻断继续执行到结束 end。

更多案例列表可参考：

https://github.com/skyhackvip/risk_engine/blob/master/docs/api.md

▌代码结构

├── api  http接口逻辑├── configs  配置文件├── docs 文档├── core 决策引擎解析核心目录├── service 执行逻辑├── cmd 启动文件├── global 全局配置├── demo 测试yaml文件├── internal│  ├── dto 数据传输对象│  ├── errcode 错误异常定义│  ├── util 工具包│  └── operator 操作算子├── test 测试用例

▌DSL 语法详解

规则表述 Rule

type Rule struct {    Name       string      `yaml:"name"`    Tag        string      `yaml:"tag"`    label      string      `yaml:"label"`    Conditions []Condition `yaml:"conditions,flow"`    Decision   Decision    `yaml:"decision"`    Depends    []string    `yaml:"depends"`}

对应 Yaml DSL

- rule:name: rule_4tag: rule_4label: 规则4depends: [feature_2, feature_3]conditions:- condition:  name: c4  feature: feature_2  operator: LT  value: 8- condition:  name: c5  feature: feature_3  operator: GT  value: 9decision:  depends: [c4, c5]  logic: c4 || c5  output:    name:    value: record    kind: string  assign:    feat1: aa    feat2: bb

规则解释：

如果：    feature_2 < 8  || feature_3 > 9那么：     输出结果：record     变量赋值：feat1 = aa   feat2 = bb

特征表述 Feature

type Feature struct {  Id    int    `yaml:"id"`  Name  string `yaml:"name"`  Tag   string `yaml:"tag"`  Label string `yaml:"label"`  Kind  string `yaml:"kind"`}

对应 Yaml DSL

features:  - feature:    id: 1    name: num_feature    tag: aa    label: 数值特征    kind: int  - feature:    id: 2    name: str_feature    tag: aa    label: 字符串特征    kind: string  - feature:    id: 3    name: bool_feature    tag: aa    label: 布尔特征    kind: bool  - feature:    id: 4    name: date_feature    tag: aa    label: 日期特征    kind: date  - feature:    id: 5    name: array_feature    tag: aa    label: 数组特征    kind: array  - feature:    id: 6    name: map_feature    tag: aa    label: 字典特征    kind: map

不同特征支持不同的操作符：

var OperatorMap = map[string]string{  GT:         ">",  LT:         "<",  GE:         ">=",  LE:         "<=",  EQ:         "==",  NEQ:        "!=",  BETWEEN:    "between",  LIKE:       "like",  IN:         "in",  CONTAIN:    "contain",  BEFORE:     "before",  AFTER:      "after",  KEYEXIST:   "keyexist",  VALUEEXIST: "valueexist",}

数值型支持：> < >= <= == != between in
字符串支持：== != like in
布尔型支持：== !=
日期型支持：== != before after between
数组型支持：== != contain in
字典型支持：keyexist valueexist

参考文章：规则实现方式

更多语法参考：

https://github.com/skyhackvip/risk_engine/blob/master/docs/dsl.md

欢迎访问并下载体验，如果觉得不错也请 Star 支持。

https://github.com/skyhackvip/risk_engine
