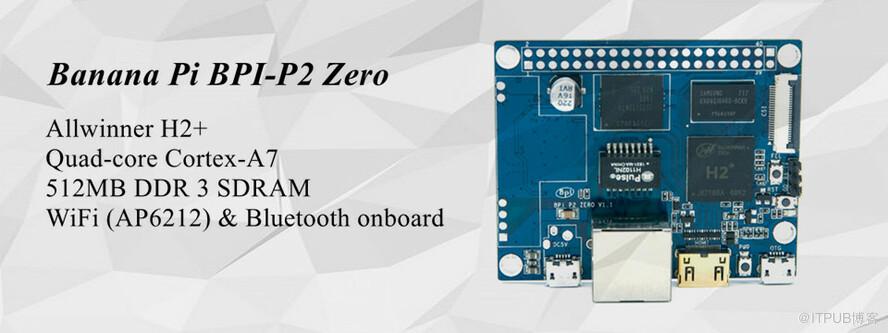

香蕉派 BPI-P2 Zero 四核开源物联网开发板，采用全志H2+芯片设计，也可以直接用在H3,H5芯片方案。Banana Pi BPI-P2 Zero 是一种小巧的物联网开发板，板子尺寸只有65毫米52.5毫米。它使用四核 H2+处理器（也可以选择全志H3和H5），有512 MB内存。8 G eMMC，100兆网口，支持PoE功能，wifi无线支持，它支持linux和android操作系统。
关键特性 [ edit ]
- CPU: Allwinner H2+, Quad-core Cortex-A7.
- 512MB DDR 3 SDRAM.
- WiFi (AP6212) & Bluetooth onboard.
- Mini HDMI.
- 40 PIN GPIO,It includes UART, SPI, I2C, IO etc
- 100M LAN
- IEEE 802.3af PoE standard PoE module support
- 8G eMMC flash onboard.
硬件接口：
硬件规格
| HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W | |||
| 型号 | Banana Pi BPI-P2 Zero | Banana Pi BPI-M2 Zero | Raspberry Pi Zero W |
| CPU主控 | H2+ Quad-core Cortex-A7 H265/HEVC 1080P | H2+ Quad-core Cortex-A7 H265/HEVC 1080P | Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core |
| GPU | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 | VideoCore IV |
| Memory \(SDRAM\) | 512M DDR3(shared with GPU) | 512M DDR3(shared with GPU) | 512 MB DDR2 |
| Onboard Storage | TF card \(Max. 64GB\) | TF card \(Max. 64GB\) | TF card \(Max. 64GB\) |
| 有线网络 | 100M LAN | NOPE (but can extension with PIN define) | NOPE |
| PoE 网线供电 | PoE function support | NOPE | NOPE |
| Onboard flash | 8G eMMC | NOPE | NOPE |
| WIFI无线 | SDIO AP6212（option AP6181、AP6335） | SDIO AP6212（option AP6181、AP6335） | 802.11n wireless, Bluetooth 4.1 |
| Video decoding | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 | 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder |
| Video input | A CSI input connector Camera | A CSI input connector Camera | CSI camera connector |
| Video Outputs | mini HDMI 1.4,1080P@30fps, DHCP | mini HDMI 1.4,1080P@30fps, DHCP | Mini HDMI and USB On-The-Go ports |
| Audio Output | Mini HDMI | Mini HDMI | Mini HDMI |
| 供电 | Micro USB with 5V/2A or PoE power | Micro USB with 5V/2A | 5V/2A |
| USB 2.0 Ports | one USB 2.0 OTG | one USB 2.0 OTG | one USB 2.0 OTG |
| 按键 | Power Button, Reset Button | Power Button, Reset Button | Composite video and reset headers |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi 3 | 40 Pins Header,compatible with Raspberry Pi 3 | 40 PIN |
| uart GPIO\(1x3\) pin | UART, ground | UART, ground | UART |
| LED灯 | Power led & Status led | Power led & Status led | Power Status LED |
| IR红外控制 | N/A | N/A | N/A |
| 支持系统 | android linux | android linx | Linux |
| 产品尺寸 | 65mm X 52.5mm | 65mm × 30mm | 65mm x 30mm |
| 重量 | 30g | 15g | 9g |
支持POE网络供电：
在线wiki文档：
