1.前言

Oracle中有ASH(Active Session History)，ASH通过每秒钟抽取活动会话样本，为分析在最近时刻的性能问题提供最直接有效的依据。

在PostgreSQL中，一般出现性能问题，都会结合pg_stat_activity和操作系统提供的命令，如top、iostat观察，不幸的是，pg_stat_activity该视图只能看到当前运行着的Postgres进程列表，为该时间点的快照，只能大致告诉我们，此刻数据库的运行状况，好在PostgreSQL有一个插件：pgSentinel(the sampling approach for PostgreSQL)，类似Oracle中的ASH，可以让我们追本溯源，什么妖魔SQL都会有记录。pgSentinel支持9.6及9.6以后的版本。

2.实操

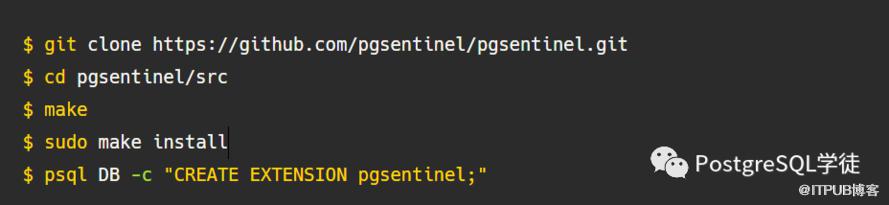

安装extension很快，同时需要在postgresql.conf中指定shared_preload_libraries来加载该插件。https://github.com/pgsentinel/pgsentinel

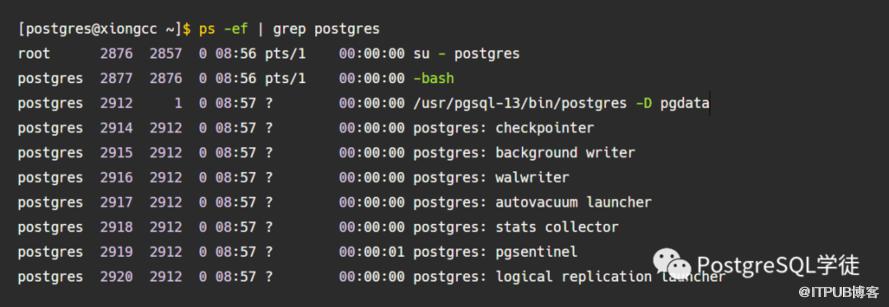

安装好之后，会fork一个pgsentinel的后台进程

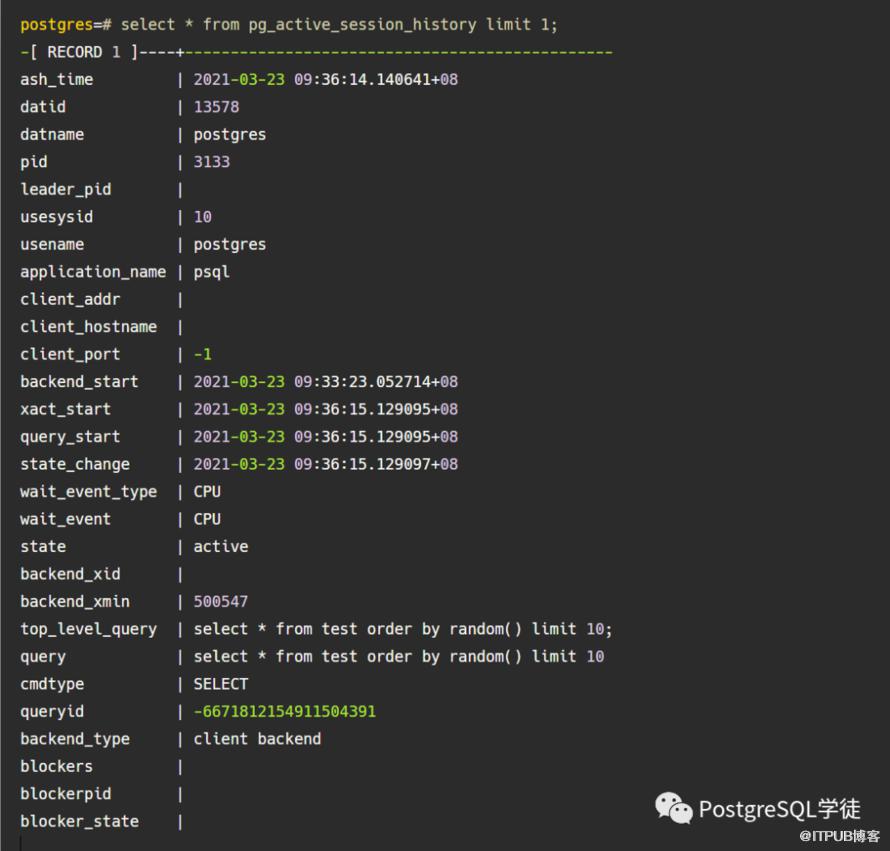

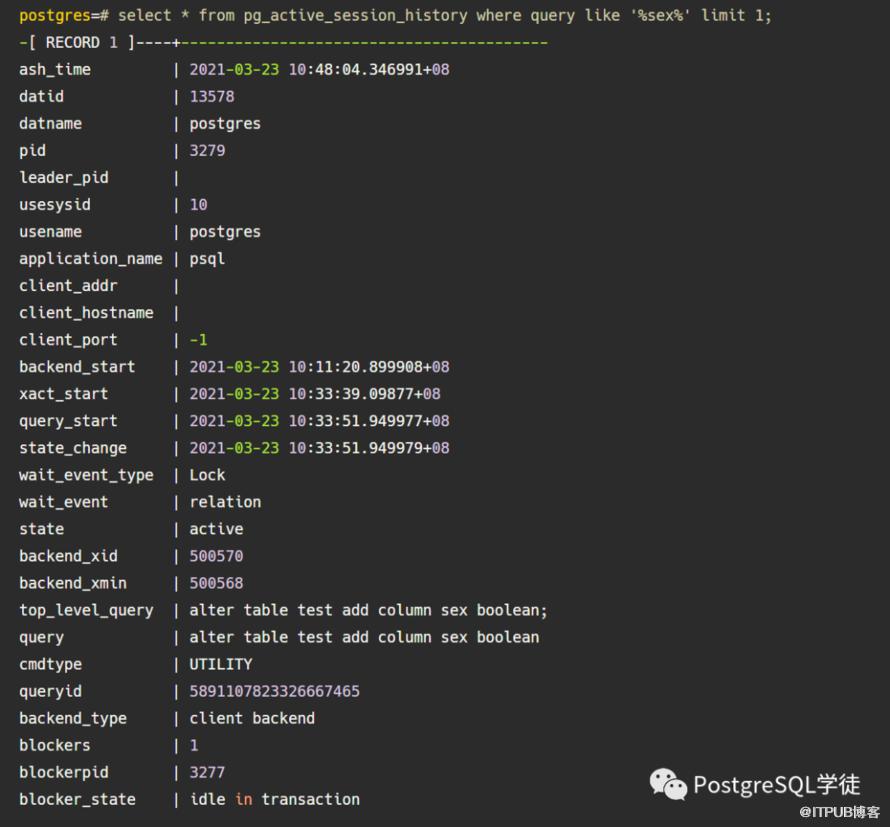

同时为了获取更多细粒度的查询，pgsentinel还会对pg_stat_statements视图进行采样。可以看一下pg_active_session_history，十分眼熟，就是在pg_stat_activity的基础上额外添加了一些字段，其中blockers、blockpid、blocker_state很好用。

所以这就大大方便了我们，历史执行会话的状态快照会保存在该视图中，可以用来审计、溯源等等。

1)ash_time: the sampling time，采样的时间

2)top_level_query: the top level statement (in case PL/pgSQL is used)，最顶层调用的SQL，比如执行一个function，select * from mypgio('pgio4', 50, 3000, 131072, 255, 8);就会出现在这里。

3)query: the statement being executed (not normalised, as it is in pg_stat_statements, means you see the values)

4)cmdtype: the statement type (SELECT,UPDATE,INSERT,DELETE,UTILITY,UNKNOWN,NOTHING)

5)queryid: the queryid of the statement which links to pg_stat_statements

6)blockers: the number of blockers

7)blockerpid: the pid of the blocker (if blockers = 1), the pid of one blocker (if blockers > 1)

8)blocker_state: state of the blocker (state of the blockerpid)

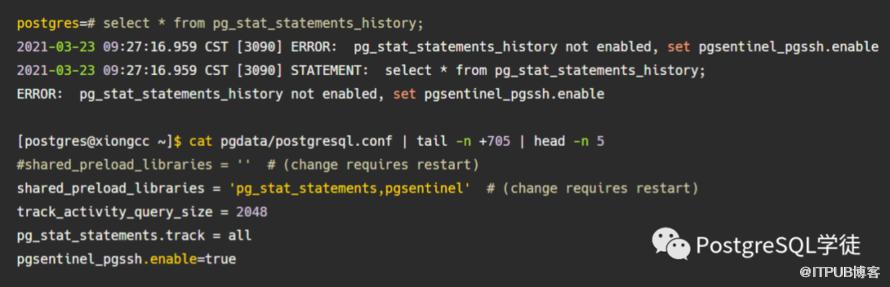

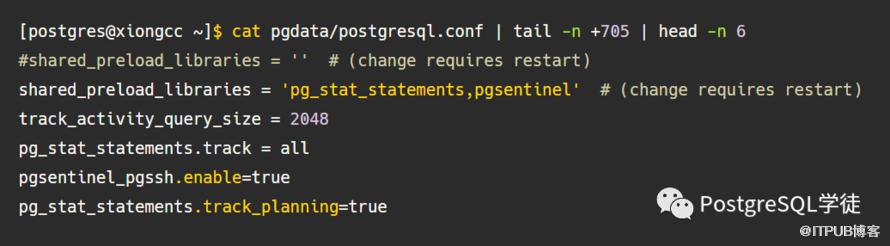

另外，还多了一个pg_stat_statements_history视图(通过周期采样pg_stat_statements而来)，需要先添加一下GUC参数pgsentinel_pgssh.enable=true

GUC参数总共如下：

1)pgsentinel_ash.sampling_period：采样周期，默认为1s

2)pgsentinel_ash.max_entries：pg_active_session_history视图在内存中的环形缓冲区的大小，这个和shared_buffers中的环形缓冲区(默认256KB)类似，如果没有环形缓冲区直接批量读取写入等，那么所有存储在缓冲区的页面都会被置换掉，导致后续的缓存命中率降低。

3)pgsentinel.db_name：要连接的数据库

4)pgsentinel_ash.track_idle_trans：在idle in transaction的状态下跟踪会话

5)pgsentinel_pgssh.max_entries：pg_stat_statements_history视图在内存中的环形缓冲区的大小

6)pgsentinel_pgssh.enable：是否允许pg_stat_statements_history视图进行采样

然后模拟一下进行增删改，视图里就可以采样到数据了，同时根据queryid，可以和pg_stat_statements/pg_stat_statements_history进行join

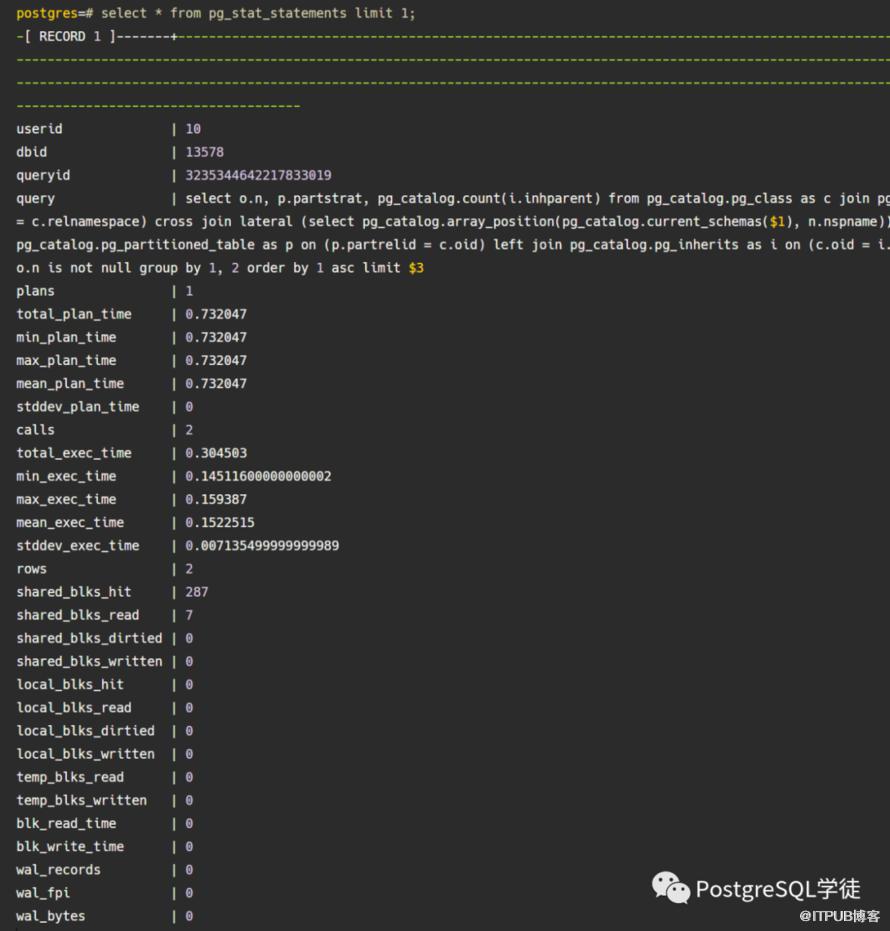

最新版本的pg_stat_statements丰富了很多：如planning的时间、真正execute的时间，以及该语句生成了多少wal，多少次FPI全页写等

3.充分利用

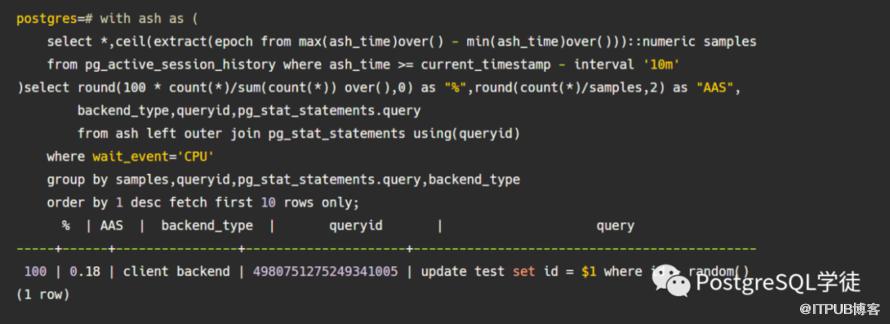

获取最消耗CPU的SQL

with ash as (

select *,ceil(extract(epoch from max(ash_time)over() - min(ash_time)over()))::numeric samples

from pg_active_session_history where ash_time >= current_timestamp - interval '10m'

)select round(100 * count(*)/sum(count(*)) over(),0) as "%",round(count(*)/samples,2) as "AAS",

backend_type,queryid,pg_stat_statements.query

from ash left outer join pg_stat_statements using(queryid)

where wait_event='CPU'

group by samples,queryid,pg_stat_statements.query,backend_type

order by 1 desc fetch first 10 rows only;

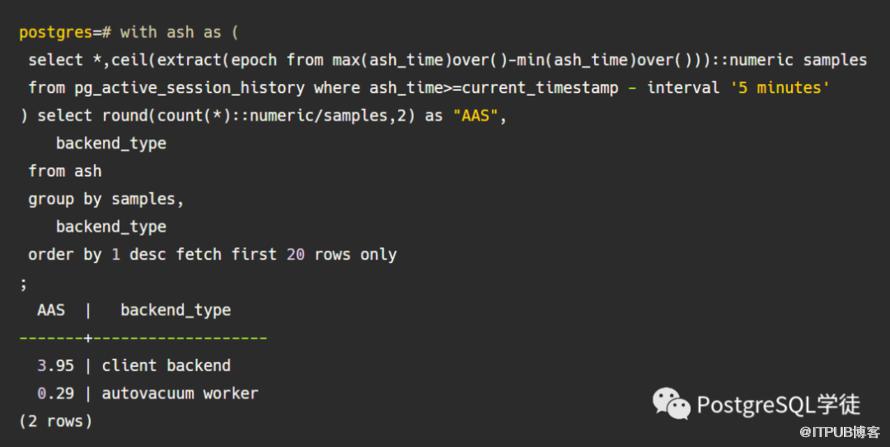

获取平均活跃会话AAS (Average Active Sessions)

with ash as (

select *,ceil(extract(epoch from max(ash_time)over()-min(ash_time)over()))::numeric samples

from pg_active_session_history where ash_time>=current_timestamp - interval '5 minutes'

) select round(count(*)::numeric/samples,2) as "AAS",

backend_type

from ash

group by samples,

backend_type

order by 1 desc fetch first 20 rows only;

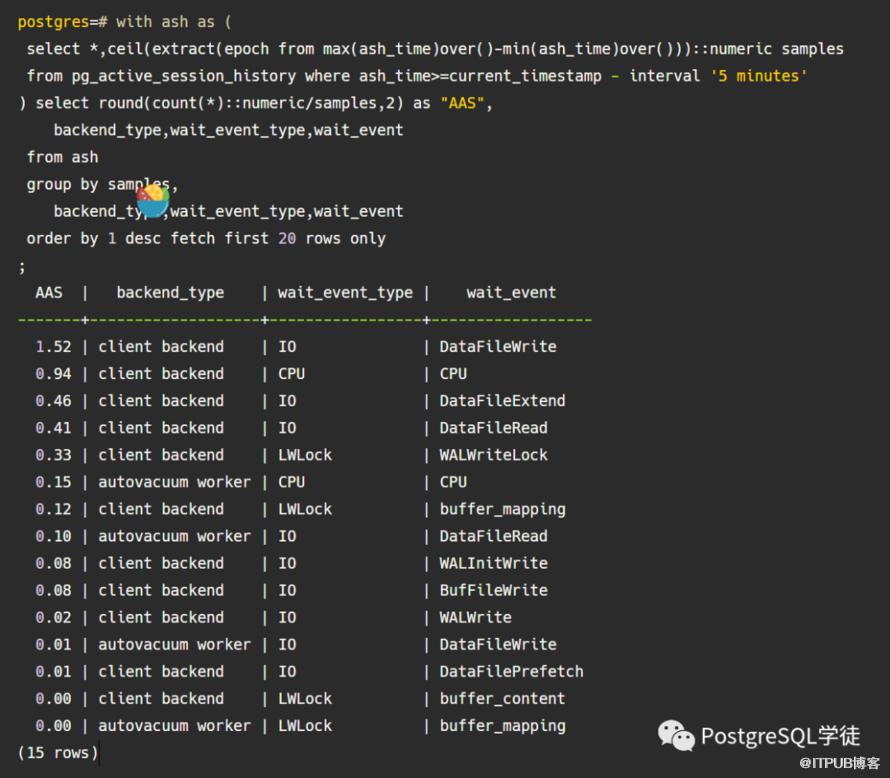

获取等待事件

with ash as (

select *,ceil(extract(epoch from max(ash_time)over()-min(ash_time)over()))::numeric samples

from pg_active_session_history where ash_time>=current_timestamp - interval '5 minutes'

) select round(count(*)::numeric/samples,2) as "AAS",

backend_type,wait_event_type,wait_event

from ash

group by samples,

backend_type,wait_event_type,wait_event

order by 1 desc fetch first 20 rows only;

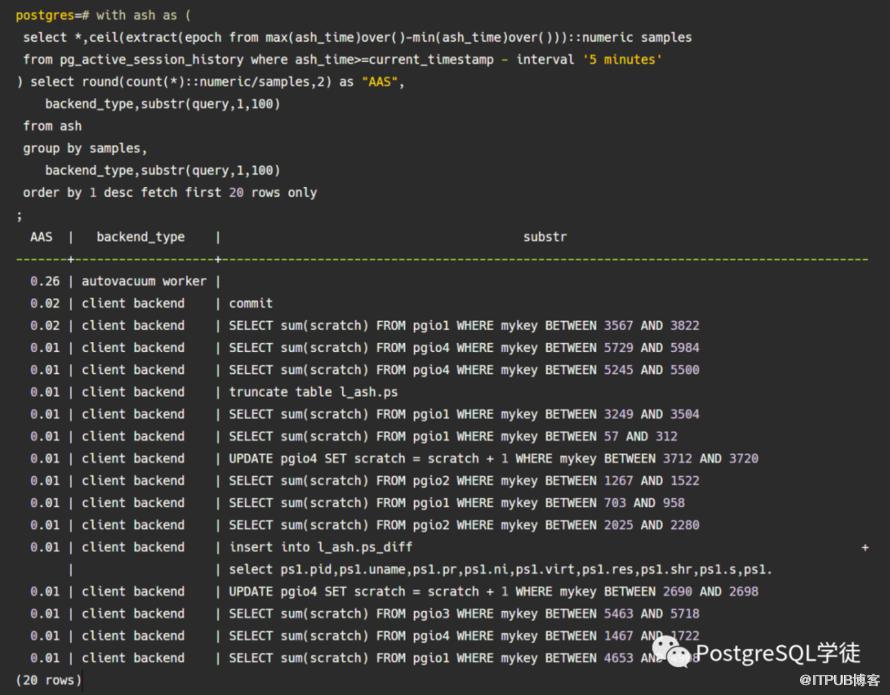

获取等待SQL

with ash as (

select *,ceil(extract(epoch from max(ash_time)over()-min(ash_time)over()))::numeric samples

from pg_active_session_history where ash_time>=current_timestamp - interval '30 minutes'

) select round(count(*)::numeric/samples,2) as "AAS",

backend_type,substr(query,1,100)

from ash

group by samples,

backend_type,substr(query,1,100)

order by 1 desc fetch first 20 rows only;

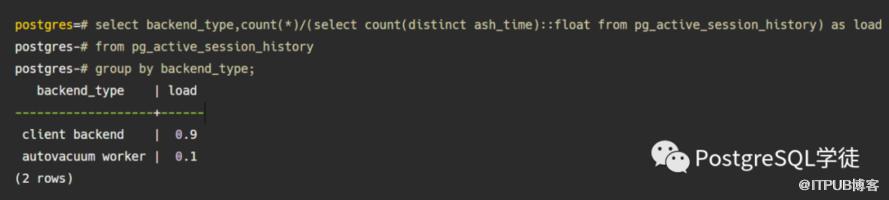

查询负载分布

select backend_type,count(*)/(select count(distinct ash_time)::float from pg_active_session_history) as load

from pg_active_session_history

group by backend_type;

更多用法请参照：https://www.youtube.com/channel/UCGVciSS2YwnPhtHHGB3Ep3A

4.小结

pg_stat_statements视图可以用来记录和追溯慢SQL，而pgSentinel的好处就是，通过采样，将最近一段时间的性能指标和运行状态记录下来，比如过去30分钟有应用明显变慢，那么就可以根据pg_active_session_history的backend_start或query_start等时间戳字段来过滤，找到当时的运行状态信息，再结合pg_stat_statements找到元凶SQL，追本溯源。

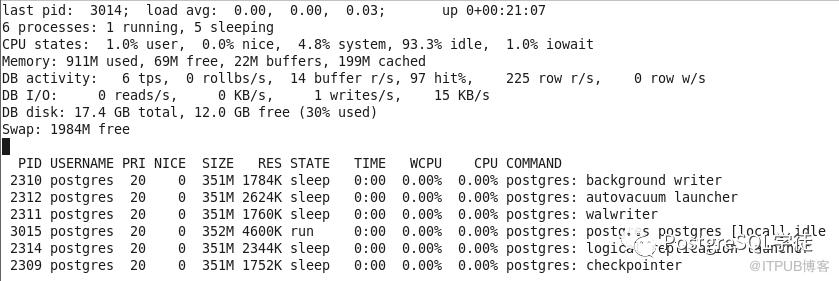

而对于观察某一个时刻的状态，除了pg_stat_activity，还推荐pg_top这个工具，专门为postgresql定制的top。https://github.com/markwkm/pg_top
