package com.anryg.hive_cdc
import org.apache.flink.configuration.Configuration
import org.apache.flink.table.api.{EnvironmentSettings, SqlDialect, TableEnvironment}
import org.apache.flink.table.catalog.hive.HiveCatalog
/**
* @DESC: Flink读取kafka写hive动态分区表
* @Auther: Anryg
* @Date: 2022/12/19 10:36
*/
object FlinkReadKafka2Hive {
def main(args: Array[String]): Unit = {
val settings = EnvironmentSettings.newInstance().inStreamingMode()
.withConfiguration(setConf())
.build() //读设置
val tableEnv = TableEnvironment.create(settings) //获取table env
setHive(tableEnv)
/**读取kafka source*/
getDataSource(tableEnv)
tableEnv.getConfig.setSqlDialect(SqlDialect.HIVE) //设置当前SQL语法为hive方言，该方言可以在整个上下文过程中来回切换
/**创建hive表*/
createHiveTable(tableEnv)
tableEnv.getConfig.setSqlDialect(SqlDialect.DEFAULT) //设置当前SQL语法为flink方言，
/**将数据Sink到*/
sinkData(tableEnv)
}
/**
* @DESC: 设置Flink相关配置
* */
private def setConf(): Configuration ={
val config = new Configuration() //设置checkpoint
config.setString("execution.checkpointing.interval","10000")
config.setString("state.backend", "filesystem")
config.setString("state.checkpoints.dir","hdfs://${name_node}:8020/tmp/checkpoint/FlinkWithHive")
config
}
/**
* @DESC: 设置hive catalog
* */

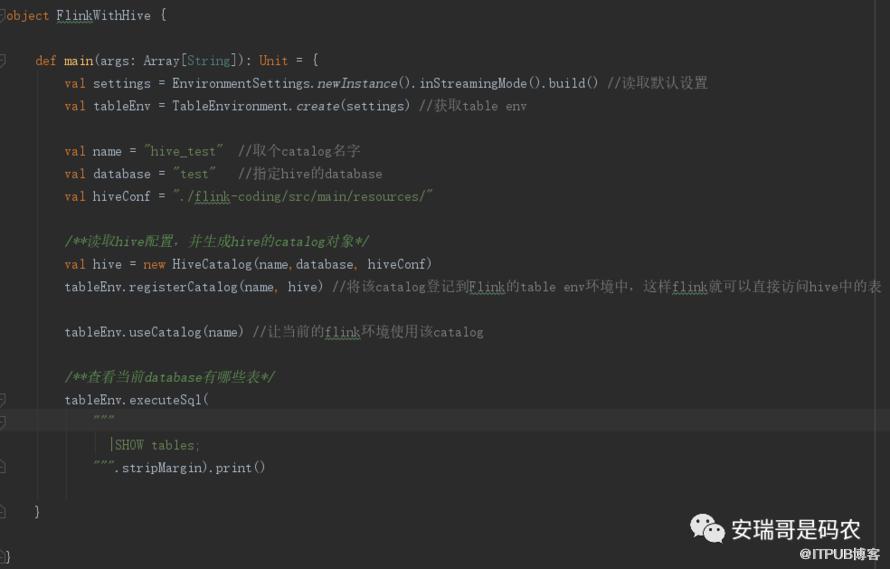

private def setHive(tableEnv: TableEnvironment): Unit ={
val name = "hive_test" //取个catalog名字
val database = "test" //指定hive的database
//val hiveConf = "./flink-coding/src/main/resources/" //指定hive-site.xml配置文件所在的地方
/**读取hive配置，并生成hive的catalog对象*/

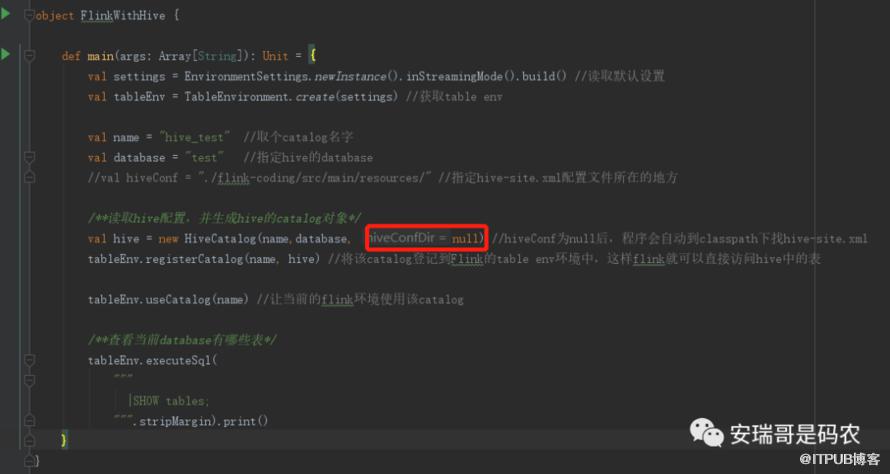

val hive = new HiveCatalog(name,database, null) //hiveConf为null后，程序会自动到classpath下找hive-site.xml
tableEnv.registerCatalog(name, hive) //将该catalog登记到Flink的table env环境中，这样flink就可以直接访问hive中的表
tableEnv.useCatalog(name) //让当前的flink环境使用该catalog
}
/**
* @DESC: 读取Kafka数据源
* */
private def getDataSource(tableEnv: TableEnvironment): Unit ={
tableEnv.executeSql(
"""
|Create table test.kafkaTable(
|client_ip STRING,
|domain STRING,
|`time` STRING,
|target_ip STRING,
|rcode STRING,
|query_type STRING,
|authority_record STRING,
|add_msg STRING,
|dns_ip STRING
|)
|with(
|'connector' = 'kafka',
|'topic' = '${your_topic}',
|'properties.bootstrap.servers' = '${kafka_broker}:6667',
|'properties.group.id' = 'FlinkWithHive',
|'scan.startup.mode' = 'latest-offset',
|'value.format'='csv', //确定数据源为文本格式
|'value.csv.field-delimiter'='|' //确定文本数据源的分隔符
|);
""".stripMargin)
}
/**
* @DESC: 创建hive目标数据表
* */
private def createHiveTable(tableEnv: TableEnvironment): Unit ={
tableEnv.executeSql(
"""
|CREATE TABLE if not exists test.kafka_flink_hive (
|client_ip STRING,
|domain STRING,
|target_ip STRING,
|rcode STRING,
|query_type STRING,
|authority_record STRING,
|add_msg STRING,
|dns_ip STRING
|)
|PARTITIONED BY (`time` STRING)
|STORED AS textfile TBLPROPERTIES (
| 'partition.time-extractor.timestamp-pattern'='$time',
| 'sink.partition-commit.trigger'='partition-time',
| 'sink.partition-commit.delay'='1 h',
| 'sink.partition-commit.policy.kind'='metastore,success-file'
|);
""".stripMargin)
}
/**
* @DESC: 将数据写入到目标表中
* */
private def sinkData(tableEnv: TableEnvironment): Unit ={
tableEnv.executeSql(
"""
|INSERT INTO test.kafka_flink_hive
|SELECT client_ip,domain,target_ip,rcode,query_type,authority_record,add_msg,dns_ip,`time`
|FROM test.kafkaTable;
""".stripMargin)
}
}
