        延迟消息在业务场景中使用的非常多，订单失效，过期通知等功能都可以借助延迟消息机制来实现。本文将从源码层面来分析Rocketmq的延迟消息实现原理机制。

一、延迟消息的使用

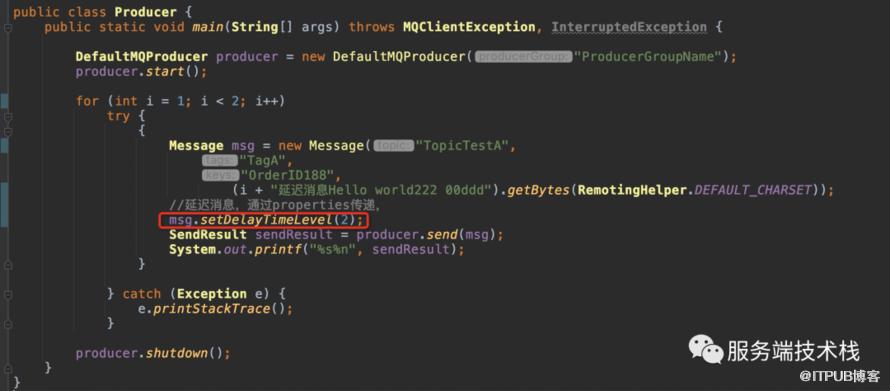

         先看下延迟消息的使用，发送消息逻辑和普通消息一样，只要在生产者端将Message对象中设置延迟消息的等级，Rocketmq的开源版本支持18个等级，每个等级代表一个延迟时间。

Rocketmq有18个延迟等级分别对应如下延迟时间，最小1s,最大2h,客户端从等级从1开始，上面设置为2，代表延迟5s。

private String messageDelayLevel = "1s 5s 10s 30s 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 20m 30m 1h 2h";

二、broker端原理解析

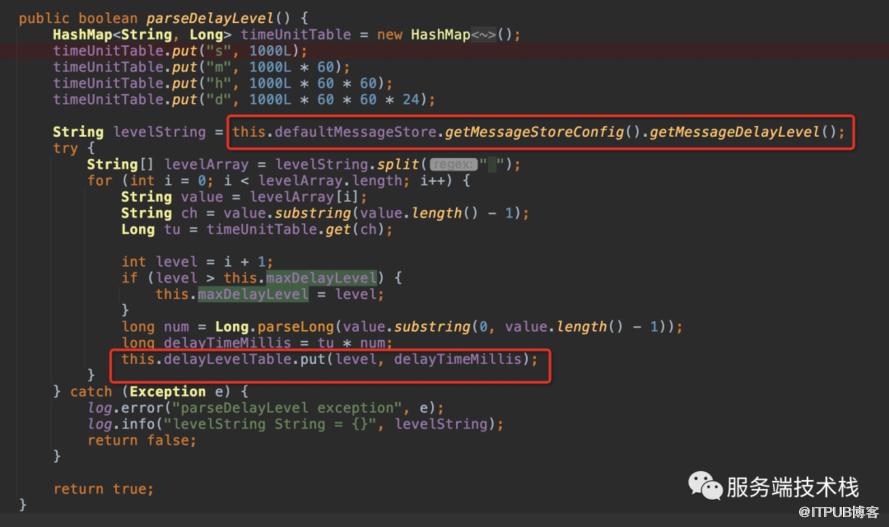

实现原理分析，broker端分析，在Broker服务启动的时候，会初始化延迟消息的配置解析和对延迟消息处理的定时任务的开启。

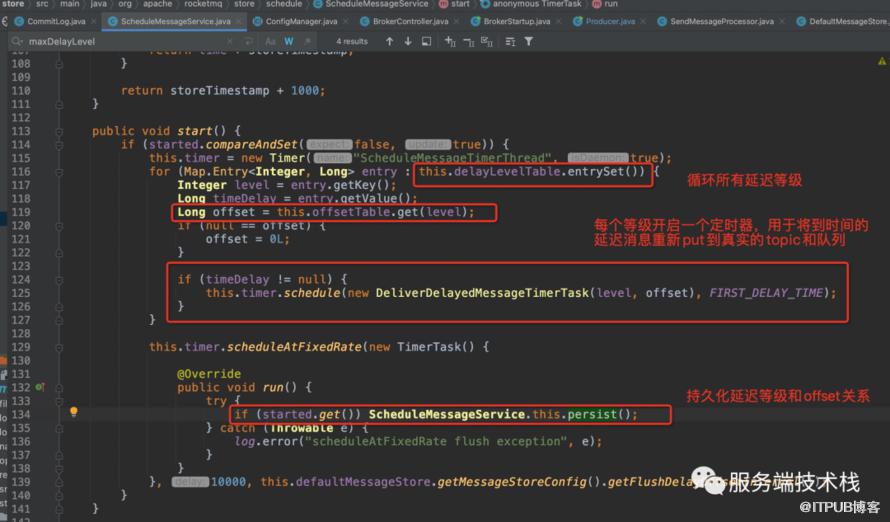

brocker启动时，根据不同等级开启定时器，即分别对每个延迟等级都开启一个定时器，rocketmq是基于java.util.Timer的定时器。

源码中单独开启了一个定时任务来持久化对延迟等级和offset的关系，为什么需要持久化延迟等级和offset的关系呢？offset是每次写入消息都会实时更新，下次直接在新的offset写消息即可，持久化可以保证brocker重启后offset不丢失，实现高可用机制，并且高性能（避免重新计算）。


下面broker接收到延迟消息的处理逻辑。会将生产者提供的真实的topic和队列进行备份暂存，然后将消息存储到内置的一个延迟消息topic队列中。

public PutMessageResult putMessage(final MessageExtBrokerInner msg) {        // Set the storage time        msg.setStoreTimestamp(System.currentTimeMillis());        // Set the message body BODY CRC (consider the most appropriate setting        // on the client)        msg.setBodyCRC(UtilAll.crc32(msg.getBody()));        // Back to Results        AppendMessageResult result = null;
        StoreStatsService storeStatsService = this.defaultMessageStore.getStoreStatsService();
        String topic = msg.getTopic();        int queueId = msg.getQueueId();
        final int tranType = MessageSysFlag.getTransactionValue(msg.getSysFlag());        if (tranType == MessageSysFlag.TRANSACTION_NOT_TYPE            || tranType == MessageSysFlag.TRANSACTION_COMMIT_TYPE) {            // Delay Delivery 处理延迟消息发送            if (msg.getDelayTimeLevel() > 0) {                if (msg.getDelayTimeLevel() > this.defaultMessageStore.getScheduleMessageService().getMaxDelayLevel()) {                    msg.setDelayTimeLevel(this.defaultMessageStore.getScheduleMessageService().getMaxDelayLevel());                }                //专门用来处理延迟消息的topic SCHEDULE_TOPIC_XXXX                topic = ScheduleMessageService.SCHEDULE_TOPIC;                //队列id为 默认延迟等级-1                queueId = ScheduleMessageService.delayLevel2QueueId(msg.getDelayTimeLevel());
                // Backup real topic, queueId 备份原始topic和队列                MessageAccessor.putProperty(msg, MessageConst.PROPERTY_REAL_TOPIC, msg.getTopic());                MessageAccessor.putProperty(msg, MessageConst.PROPERTY_REAL_QUEUE_ID, String.valueOf(msg.getQueueId()));                msg.setPropertiesString(MessageDecoder.messageProperties2String(msg.getProperties()));                //设置成内置的延迟消息topic和队列，这个topic消息不会被消费者接收处理                msg.setTopic(topic);                msg.setQueueId(queueId);            }        }   //...    }      //获取延迟队列id public static int delayLevel2QueueId(final int delayLevel) {        return delayLevel - 1; }

定时器检测消息到时间了，将消息存储到真实topic和队列。


延迟消息处理定时任务，每次都将当前延迟等级对应的消息，写入真实的topic和队列，并维护新的offset,然后重新开启定时任务，等下次再重新处理该延迟等级的消息。

    class DeliverDelayedMessageTimerTask extends TimerTask {        private final int delayLevel;        private final long offset;
        public DeliverDelayedMessageTimerTask(int delayLevel, long offset) {            this.delayLevel = delayLevel;            this.offset = offset;        }
        @Override        public void run() {            try {                if (isStarted()) {                    this.executeOnTimeup();                }            } catch (Exception e) {                // XXX: warn and notify me                log.error("ScheduleMessageService, executeOnTimeup exception", e);                ScheduleMessageService.this.timer.schedule(new DeliverDelayedMessageTimerTask(                    this.delayLevel, this.offset), DELAY_FOR_A_PERIOD);            }        }
        /**         * @return         */        private long correctDeliverTimestamp(final long now, final long deliverTimestamp) {
            long result = deliverTimestamp;
            long maxTimestamp = now + ScheduleMessageService.this.delayLevelTable.get(this.delayLevel);            if (deliverTimestamp > maxTimestamp) {                result = now;            }
            return result;        }
        public void executeOnTimeup() {            ConsumeQueue cq =                ScheduleMessageService.this.defaultMessageStore.findConsumeQueue(SCHEDULE_TOPIC,                    delayLevel2QueueId(delayLevel));
            long failScheduleOffset = offset;
            if (cq != null) {                SelectMappedBufferResult bufferCQ = cq.getIndexBuffer(this.offset);                if (bufferCQ != null) {                    try {                        long nextOffset = offset;                        int i = 0;                        ConsumeQueueExt.CqExtUnit cqExtUnit = new ConsumeQueueExt.CqExtUnit();                        for (; i < bufferCQ.getSize(); i += ConsumeQueue.CQ_STORE_UNIT_SIZE) {                            long offsetPy = bufferCQ.getByteBuffer().getLong();                            int sizePy = bufferCQ.getByteBuffer().getInt();                            long tagsCode = bufferCQ.getByteBuffer().getLong();
                            if (cq.isExtAddr(tagsCode)) {                                if (cq.getExt(tagsCode, cqExtUnit)) {                                    tagsCode = cqExtUnit.getTagsCode();                                } else {                                    //can't find ext content.So re compute tags code.                                    log.error("[BUG] can't find consume queue extend file content!addr={}, offsetPy={}, sizePy={}",                                        tagsCode, offsetPy, sizePy);                                    long msgStoreTime = defaultMessageStore.getCommitLog().pickupStoreTimestamp(offsetPy, sizePy);                                    tagsCode = computeDeliverTimestamp(delayLevel, msgStoreTime);                                }                            }
                            long now = System.currentTimeMillis();                            long deliverTimestamp = this.correctDeliverTimestamp(now, tagsCode);
                            nextOffset = offset + (i / ConsumeQueue.CQ_STORE_UNIT_SIZE);
                            long countdown = deliverTimestamp - now;
                            if (countdown <= 0) {                                MessageExt msgExt =                                    ScheduleMessageService.this.defaultMessageStore.lookMessageByOffset(                                        offsetPy, sizePy);
                                if (msgExt != null) {                                    try {                                        //还原消息的topic和队列                                        MessageExtBrokerInner msgInner = this.messageTimeup(msgExt);                                        //将消息写入真实的topic和队列                                        PutMessageResult putMessageResult =                                            ScheduleMessageService.this.writeMessageStore                                                .putMessage(msgInner);
                                        if (putMessageResult != null                                            && putMessageResult.getPutMessageStatus() == PutMessageStatus.PUT_OK) {                                            continue;                                        } else {                                            // XXX: warn and notify me                                            log.error(                                                "ScheduleMessageService, a message time up, but reput it failed, topic: {} msgId {}",                                                msgExt.getTopic(), msgExt.getMsgId());                                            //重新开启一个定时任务，10s后重新处理这个延迟等级的消息                                            ScheduleMessageService.this.timer.schedule(                                                new DeliverDelayedMessageTimerTask(this.delayLevel,                                                    nextOffset), DELAY_FOR_A_PERIOD);                                            //延迟消息处理完了，更新新的offset                                            ScheduleMessageService.this.updateOffset(this.delayLevel,                                                nextOffset);                                            return;                                        }                                    } catch (Exception e) {                                        /*                                         * XXX: warn and notify me                                         */                                        log.error(                                            "ScheduleMessageService, messageTimeup execute error, drop it. msgExt="                                                + msgExt + ", nextOffset=" + nextOffset + ",offsetPy="                                                + offsetPy + ",sizePy=" + sizePy, e);                                    }                                }                            } else {                                ScheduleMessageService.this.timer.schedule(                                    new DeliverDelayedMessageTimerTask(this.delayLevel, nextOffset),                                    countdown);                                ScheduleMessageService.this.updateOffset(this.delayLevel, nextOffset);                                return;                            }                        } // end of for
                        nextOffset = offset + (i / ConsumeQueue.CQ_STORE_UNIT_SIZE);                        ScheduleMessageService.this.timer.schedule(new DeliverDelayedMessageTimerTask(                            this.delayLevel, nextOffset), DELAY_FOR_A_WHILE);                        ScheduleMessageService.this.updateOffset(this.delayLevel, nextOffset);                        return;                    } finally {                        bufferCQ.release();                    }                } // end of if (bufferCQ != null)                else {                    long cqMinOffset = cq.getMinOffsetInQueue();                    if (offset < cqMinOffset) {                        failScheduleOffset = cqMinOffset;                        log.error("schedule CQ offset invalid. offset=" + offset + ", cqMinOffset="                            + cqMinOffset + ", queueId=" + cq.getQueueId());                    }                }            } // end of if (cq != null)            ScheduleMessageService.this.timer.schedule(new DeliverDelayedMessageTimerTask(this.delayLevel,                failScheduleOffset), DELAY_FOR_A_WHILE);        }
        private MessageExtBrokerInner messageTimeup(MessageExt msgExt) {            MessageExtBrokerInner msgInner = new MessageExtBrokerInner();            msgInner.setBody(msgExt.getBody());            msgInner.setFlag(msgExt.getFlag());            MessageAccessor.setProperties(msgInner, msgExt.getProperties());
            TopicFilterType topicFilterType = MessageExt.parseTopicFilterType(msgInner.getSysFlag());            long tagsCodeValue =                MessageExtBrokerInner.tagsString2tagsCode(topicFilterType, msgInner.getTags());            msgInner.setTagsCode(tagsCodeValue);            msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgExt.getProperties()));
            msgInner.setSysFlag(msgExt.getSysFlag());            msgInner.setBornTimestamp(msgExt.getBornTimestamp());            msgInner.setBornHost(msgExt.getBornHost());            msgInner.setStoreHost(msgExt.getStoreHost());            msgInner.setReconsumeTimes(msgExt.getReconsumeTimes());
            msgInner.setWaitStoreMsgOK(false);            MessageAccessor.clearProperty(msgInner, MessageConst.PROPERTY_DELAY_TIME_LEVEL);
            msgInner.setTopic(msgInner.getProperty(MessageConst.PROPERTY_REAL_TOPIC));
            String queueIdStr = msgInner.getProperty(MessageConst.PROPERTY_REAL_QUEUE_ID);            int queueId = Integer.parseInt(queueIdStr);            msgInner.setQueueId(queueId);
            return msgInner;        }    }

当消息写入真实的topic和队列中后，消费者就可以正常的消费到消息了。

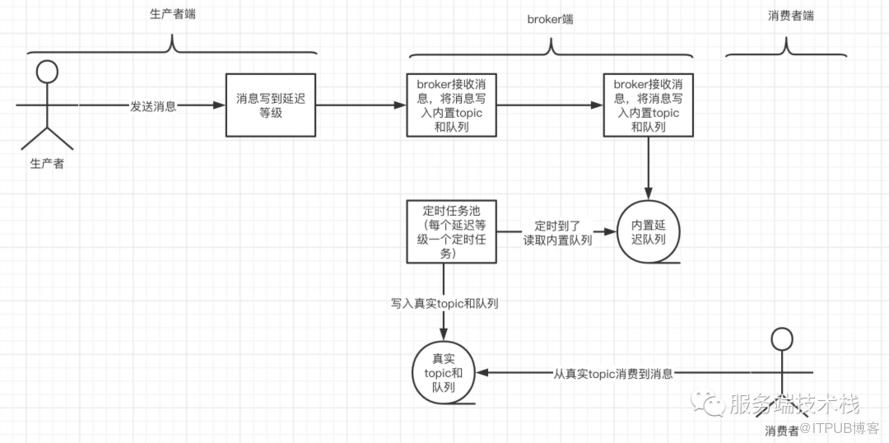

总的流程如下：



写到这里，Rocketmq延迟消息实现已经全部清楚了，他的还是比较容易理解的。
