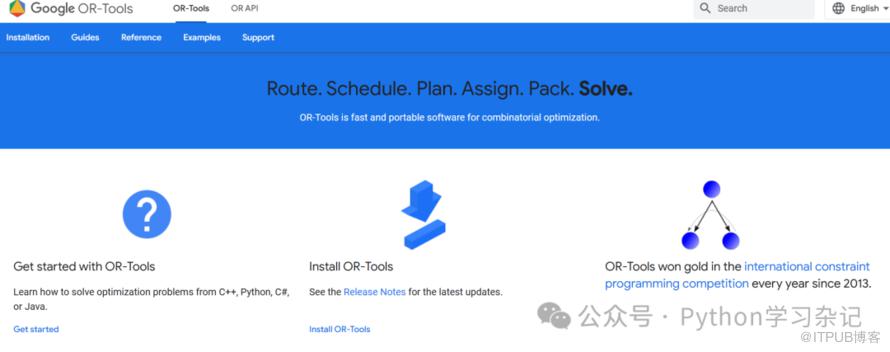

OR-Tools是谷歌的一个标准的运筹优化库，该运筹优化库封装了解决vrp问题的模型。
本文介绍使用OR-Tools解决多种类型的vrp问题，并给出源代码供大家学习参考。
vrp（最基础的vrp）
多辆车配送数个网点，目标为总距离最短，这是大家很不满的一个设定，因为很多人希望修改目标函数。
在实际操作中，可以通过增加惩罚函数来改变目标（如果大家感兴趣，可以后期文章中继续写这方面的）。
from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp
import pandas as pd
def create_data_model():
"""Stores the data for the problem."""
data = {}
data['distance_matrix'] = [
[
0, 548, 776, 696, 582, 274, 502, 194, 308, 194, 536, 502, 388, 354,
468, 776, 662
],
[
548, 0, 684, 308, 194, 502, 730, 354, 696, 742, 1084, 594, 480, 674,
1016, 868, 1210
],
[
776, 684, 0, 992, 878, 502, 274, 810, 468, 742, 400, 1278, 1164,
1130, 788, 1552, 754
],
[
696, 308, 992, 0, 114, 650, 878, 502, 844, 890, 1232, 514, 628, 822,
1164, 560, 1358
],
[
582, 194, 878, 114, 0, 536, 764, 388, 730, 776, 1118, 400, 514, 708,
1050, 674, 1244
],
[
274, 502, 502, 650, 536, 0, 228, 308, 194, 240, 582, 776, 662, 628,
514, 1050, 708
],
[
502, 730, 274, 878, 764, 228, 0, 536, 194, 468, 354, 1004, 890, 856,
514, 1278, 480
],
[
194, 354, 810, 502, 388, 308, 536, 0, 342, 388, 730, 468, 354, 320,
662, 742, 856
],
[
308, 696, 468, 844, 730, 194, 194, 342, 0, 274, 388, 810, 696, 662,
320, 1084, 514
],
[
194, 742, 742, 890, 776, 240, 468, 388, 274, 0, 342, 536, 422, 388,
274, 810, 468
],
[
536, 1084, 400, 1232, 1118, 582, 354, 730, 388, 342, 0, 878, 764,
730, 388, 1152, 354
],
[
502, 594, 1278, 514, 400, 776, 1004, 468, 810, 536, 878, 0, 114,
308, 650, 274, 844
],
[
388, 480, 1164, 628, 514, 662, 890, 354, 696, 422, 764, 114, 0, 194,
536, 388, 730
],
[
354, 674, 1130, 822, 708, 628, 856, 320, 662, 388, 730, 308, 194, 0,
342, 422, 536
],
[
468, 1016, 788, 1164, 1050, 514, 514, 662, 320, 274, 388, 650, 536,
342, 0, 764, 194
],
[
776, 868, 1552, 560, 674, 1050, 1278, 742, 1084, 810, 1152, 274,
388, 422, 764, 0, 798
],
[
662, 1210, 754, 1358, 1244, 708, 480, 856, 514, 468, 354, 844, 730,
536, 194, 798, 0
],
]
data['num_vehicles'] = 4
data['depot'] = 0
return data
def print_solution(data, manager, routing, solution):
"""Prints solution on console."""
max_route_distance = 0
list_vehicle_id = []
list_node = []
list_distance = []
for vehicle_id in range(data['num_vehicles']):
index = routing.Start(vehicle_id)
plan_output = 'Route for vehicle {}:\n'.format(vehicle_id)
route_distance = 0
while not routing.IsEnd(index):
list_vehicle_id.append(vehicle_id)
plan_output += ' {} -> '.format(manager.IndexToNode(index))
list_node.append(int(manager.IndexToNode(index)))
previous_index = index
index = solution.Value(routing.NextVar(index))
route_distance += routing.GetArcCostForVehicle(
previous_index, index, vehicle_id)
list_distance.append(int(routing.GetArcCostForVehicle(previous_index, index, vehicle_id)))
plan_output += '{}\n'.format(manager.IndexToNode(index))
plan_output += 'Distance of the route: {}m\n'.format(route_distance)
print(plan_output)
max_route_distance = max(route_distance, max_route_distance)
print('Maximum of the route distances: {}m'.format(max_route_distance))
data = pd.DataFrame()
data['index'] = list_vehicle_id
data['node'] = list_node
data['distance'] = list_distance
print(data)
return data
def main():
"""Solve the CVRP problem."""
# Instantiate the data problem.
data = create_data_model()
# Create the routing index manager.
manager = pywrapcp.RoutingIndexManager(len(data['distance_matrix']),
data['num_vehicles'], data['depot'])
# Create Routing Model.
routing = pywrapcp.RoutingModel(manager)
# Create and register a transit callback.
def distance_callback(from_index, to_index):
"""Returns the distance between the two nodes."""
# Convert from routing variable Index to distance matrix NodeIndex.
from_node = manager.IndexToNode(from_index)
to_node = manager.IndexToNode(to_index)
return data['distance_matrix'][from_node][to_node]
transit_callback_index = routing.RegisterTransitCallback(distance_callback)
# Define cost of each arc.
routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)
# Add Distance constraint.
dimension_name = 'Distance'
routing.AddDimension(
transit_callback_index,
0, # no slack
3000, # vehicle maximum travel distance
True, # start cumul to zero
dimension_name)
print(transit_callback_index)
distance_dimension = routing.GetDimensionOrDie(dimension_name)
distance_dimension.SetGlobalSpanCostCoefficient(100)
# Setting first solution heuristic.
search_parameters = pywrapcp.DefaultRoutingSearchParameters()
search_parameters.first_solution_strategy = (
routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC)
# Solve the problem.
solution = routing.SolveWithParameters(search_parameters)
# Print solution on console.
if solution:
data = print_solution(data, manager, routing, solution)
if __name__ == '__main__':
main()在搜索最优方案时，可以选择算法及搜索的时间，在之前or-tools的文章中有介绍，不在本文重复。感兴趣的朋友可以查阅之前的文章。
cvrp（带装载容量的vrp）
每辆车都有自己的装载容量，这种约束很常见。
from __future__ import print_function
from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp
def create_data_model():
"""Stores the data for the problem."""
data = {}
data['distance_matrix'] = [
[
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
],
[
0, 0, 684, 308, 194, 502, 730, 354, 696, 742, 1084, 594, 480, 674,
1016, 868, 1210
],
[
0, 684, 0, 992, 878, 502, 274, 810, 468, 742, 400, 1278, 1164,
1130, 788, 1552, 754
],
[
0, 308, 992, 0, 114, 650, 878, 502, 844, 890, 1232, 514, 628, 822,
1164, 560, 1358
],
[
0, 194, 878, 114, 0, 536, 764, 388, 730, 776, 1118, 400, 514, 708,
1050, 674, 1244
],
[
0, 502, 502, 650, 536, 0, 228, 308, 194, 240, 582, 776, 662, 628,
514, 1050, 708
],
[
0, 730, 274, 878, 764, 228, 0, 536, 194, 468, 354, 1004, 890, 856,
514, 1278, 480
],
[
0, 354, 810, 502, 388, 308, 536, 0, 342, 388, 730, 468, 354, 320,
662, 742, 856
],
[
0, 696, 468, 844, 730, 194, 194, 342, 0, 274, 388, 810, 696, 662,
0, 1084, 514
],
[
0, 742, 742, 890, 776, 240, 468, 388, 274, 0, 342, 536, 422, 388,
0, 810, 468
],
[
0, 1084, 400, 1232, 1118, 582, 354, 730, 388, 342, 0, 878, 764,
730, 388, 1152, 354
],
[
0, 594, 1278, 514, 400, 776, 1004, 468, 810, 536, 878, 0, 114,
308, 650, 274, 844
],
[
0, 480, 1164, 628, 514, 662, 890, 354, 696, 422, 764, 114, 0, 194,
536, 388, 730
],
[
0, 674, 1130, 822, 708, 628, 856, 320, 662, 388, 730, 308, 194, 0,
342, 422, 536
],
[
0, 1016, 788, 1164, 1050, 514, 514, 662, 320, 274, 388, 650, 536,
342, 0, 764, 194
],
[
0, 868, 1552, 560, 674, 1050, 1278, 742, 1084, 810, 1152, 274,
388, 422, 764, 0, 798
],
[
0, 1210, 754, 1358, 1244, 708, 480, 856, 514, 468, 354, 844, 730,
536, 194, 798, 0
],
]
data['demands'] = [0, 1, 1, 2, 4, 2, 4, 8, 8, 1, 2, 1, 2, 4, 4, 8, 8]
data['vehicle_capacities'] = [15, 15, 15, 15]
data['num_vehicles'] = 4
data['depot'] = 0
return data
def print_solution(data, manager, routing, solution):
"""Prints solution on console."""
total_distance = 0
total_load = 0
for vehicle_id in range(data['num_vehicles']):
index = routing.Start(vehicle_id)
plan_output = 'Route for vehicle {}:\n'.format(vehicle_id)
route_distance = 0
route_load = 0
while not routing.IsEnd(index):
node_index = manager.IndexToNode(index)
route_load += data['demands'][node_index]
plan_output += ' {0} Load({1}) -> '.format(node_index, route_load)
previous_index = index
index = solution.Value(routing.NextVar(index))
route_distance += routing.GetArcCostForVehicle(
previous_index, index, vehicle_id)
plan_output += ' {0} Load({1})\n'.format(manager.IndexToNode(index),
route_load)
plan_output += 'Distance of the route: {}m\n'.format(route_distance)
plan_output += 'Load of the route: {}\n'.format(route_load)
print(plan_output)
total_distance += route_distance
total_load += route_load
print('Total distance of all routes: {}m'.format(total_distance))
print('Total load of all routes: {}'.format(total_load))
def main():
"""Solve the CVRP problem."""
# Instantiate the data problem.
data = create_data_model()
# Create the routing index manager.
manager = pywrapcp.RoutingIndexManager(len(data['distance_matrix']),
data['num_vehicles'], data['depot'])
# Create Routing Model.
routing = pywrapcp.RoutingModel(manager)
# Create and register a transit callback.
def distance_callback(from_index, to_index):
"""Returns the distance between the two nodes."""
# Convert from routing variable Index to distance matrix NodeIndex.
from_node = manager.IndexToNode(from_index)
to_node = manager.IndexToNode(to_index)
return data['distance_matrix'][from_node][to_node]
transit_callback_index = routing.RegisterTransitCallback(distance_callback)
# Define cost of each arc.
routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)
# Add Capacity constraint.
def demand_callback(from_index):
"""Returns the demand of the node."""
# Convert from routing variable Index to demands NodeIndex.
from_node = manager.IndexToNode(from_index)
return data['demands'][from_node]
demand_callback_index = routing.RegisterUnaryTransitCallback(
demand_callback)
routing.AddDimensionWithVehicleCapacity(
demand_callback_index,
0, # null capacity slack
data['vehicle_capacities'], # vehicle maximum capacities
True, # start cumul to zero
'Capacity')
# Setting first solution heuristic.
search_parameters = pywrapcp.DefaultRoutingSearchParameters()
search_parameters.first_solution_strategy = (
routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC)
# Solve the problem.
solution = routing.SolveWithParameters(search_parameters)
# Print solution on console.
if solution:
print_solution(data, manager, routing, solution)
if __name__ == '__main__':
main()vrptw(带时间窗的vrp问题）
每个网点都有配送时间要求，都有对应车辆访问的时间窗。
from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp
def create_data_model():
"""Stores the data for the problem."""
data = {}
data['time_matrix'] = [
[0, 6, 9, 8, 7, 3, 6, 2, 3, 2, 6, 6, 4, 4, 5, 9, 7],
[6, 0, 8, 3, 2, 6, 8, 4, 8, 8, 13, 7, 5, 8, 12, 10, 14],
[9, 8, 0, 11, 10, 6, 3, 9, 5, 8, 4, 15, 14, 13, 9, 18, 9],
[8, 3, 11, 0, 1, 7, 10, 6, 10, 10, 14, 6, 7, 9, 14, 6, 16],
[7, 2, 10, 1, 0, 6, 9, 4, 8, 9, 13, 4, 6, 8, 12, 8, 14],
[3, 6, 6, 7, 6, 0, 2, 3, 2, 2, 7, 9, 7, 7, 6, 12, 8],
[6, 8, 3, 10, 9, 2, 0, 6, 2, 5, 4, 12, 10, 10, 6, 15, 5],
[2, 4, 9, 6, 4, 3, 6, 0, 4, 4, 8, 5, 4, 3, 7, 8, 10],
[3, 8, 5, 10, 8, 2, 2, 4, 0, 3, 4, 9, 8, 7, 3, 13, 6],
[2, 8, 8, 10, 9, 2, 5, 4, 3, 0, 4, 6, 5, 4, 3, 9, 5],
[6, 13, 4, 14, 13, 7, 4, 8, 4, 4, 0, 10, 9, 8, 4, 13, 4],
[6, 7, 15, 6, 4, 9, 12, 5, 9, 6, 10, 0, 1, 3, 7, 3, 10],
[4, 5, 14, 7, 6, 7, 10, 4, 8, 5, 9, 1, 0, 2, 6, 4, 8],
[4, 8, 13, 9, 8, 7, 10, 3, 7, 4, 8, 3, 2, 0, 4, 5, 6],
[5, 12, 9, 14, 12, 6, 6, 7, 3, 3, 4, 7, 6, 4, 0, 9, 2],
[9, 10, 18, 6, 8, 12, 15, 8, 13, 9, 13, 3, 4, 5, 9, 0, 9],
[7, 14, 9, 16, 14, 8, 5, 10, 6, 5, 4, 10, 8, 6, 2, 9, 0],
]
data['time_windows'] = [
(0, 10), # depot
(7, 12), # 1
(10, 15), # 2
(16, 18), # 3
(10, 13), # 4
(0, 5), # 5
(5, 10), # 6
(0, 4), # 7
(5, 10), # 8
(0, 3), # 9
(10, 16), # 10
(10, 15), # 11
(0, 5), # 12
(5, 10), # 13
(7, 8), # 14
(10, 15), # 15
(11, 15), # 16
]
data['num_vehicles'] = 4
data['depot'] = 0
return data
def print_solution(data, manager, routing, assignment):
"""Prints assignment on console."""
time_dimension: pywrapcp.RoutingDimension = routing.GetDimensionOrDie('Time')
total_time = 0
for vehicle_id in range(data['num_vehicles']):
index = routing.Start(vehicle_id)
plan_output = 'Route for vehicle {}:\n'.format(vehicle_id)
while not routing.IsEnd(index):
plan_output += f'{manager.IndexToNode(index)}: '
cumul_var = time_dimension.CumulVar(index)
plan_output +=f'Cumul[{assignment.Min(cumul_var)},{assignment.Max(cumul_var)}] {assignment.Value(cumul_var)}'
# if not routing.IsStart(index):
# trans_var = time_dimension.TransitVar(index)
# plan_output +=f'; Transit[{assignment.Min(trans_var)},{assignment.Max(trans_var)}] {assignment.Value(trans_var)}'
# slack_var = time_dimension.SlackVar(index)
# plan_output +=f'; Slack[{assignment.Min(slack_var)},{assignment.Max(slack_var)}] {assignment.Value(slack_var)}'
plan_output+= ' -> '
index = assignment.Value(routing.NextVar(index))
cumul_var = time_dimension.CumulVar(index)
plan_output += '{0}\t(Time[{1},{2}])\n'.format(manager.IndexToNode(index),
assignment.Min(cumul_var),
assignment.Max(cumul_var))
plan_output += 'Time of the route: {}min\n'.format(
assignment.Min(cumul_var))
print(plan_output)
total_time += assignment.Min(cumul_var)
print('Total time of all routes: {}min'.format(total_time))
def main():
"""Solve the VRP with time windows."""
data = create_data_model()
manager = pywrapcp.RoutingIndexManager(len(data['time_matrix']),
data['num_vehicles'], data['depot'])
routing = pywrapcp.RoutingModel(manager)
def time_callback(from_index, to_index):
"""Returns the travel time between the two nodes."""
# Convert from routing variable Index to time matrix NodeIndex.
from_node = manager.IndexToNode(from_index)
to_node = manager.IndexToNode(to_index)
return data['time_matrix'][from_node][to_node]
transit_callback_index = routing.RegisterTransitCallback(time_callback)
routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)
time = 'Time'
routing.AddDimension(
transit_callback_index,
30, # allow waiting time
30, # maximum time per vehicle
False, # Don't force start cumul to zero.
time)
time_dimension: pywrapcp.RoutingDimension = routing.GetDimensionOrDie(time)
# Add time window constraints for each location except depot.
for location_idx, time_window in enumerate(data['time_windows']):
if location_idx == 0:
continue
index = manager.NodeToIndex(location_idx)
time_dimension.CumulVar(index).SetRange(time_window[0], time_window[1])
# Add time window constraints for each vehicle start node.
for vehicle_id in range(data['num_vehicles']):
index = routing.Start(vehicle_id)
time_dimension.CumulVar(index).SetRange(data['time_windows'][0][0],
data['time_windows'][0][1])
# Add trans and slack var to assignment for every node but the end nodes
for location_index in range(routing.nodes()):
index = manager.NodeToIndex(location_index)
if routing.IsEnd(index) or routing.IsStart(index):
continue
routing.AddToAssignment(time_dimension.TransitVar(index))
routing.AddToAssignment(time_dimension.SlackVar(index))
# solver = routing.solver()
# for location_index in range(routing.nodes()):
# index = manager.NodeToIndex(location_index)
# solver.AddConstraint(
# solver.NotMemberCt(
# time_dimension.CumulVar(index),
# [3], [4]
# )
# )
for i in range(data['num_vehicles']):
routing.AddVariableMinimizedByFinalizer(time_dimension.CumulVar(routing.Start(i)))
routing.AddVariableMinimizedByFinalizer(time_dimension.CumulVar(routing.End(i)))
search_parameters = pywrapcp.DefaultRoutingSearchParameters()
search_parameters.first_solution_strategy = routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC
assignment = routing.SolveWithParameters(search_parameters)
if assignment:
print_solution(data, manager, routing, assignment)
if __name__ == '__main__':
main()pdvrp（包含取货和送货的vrp模型）
#from __future__ import print_function
from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp
def create_data_model():
"""Stores the data for the problem."""
data = {}
data['distance_matrix'] = [
[
0, 548, 776, 696, 582, 274, 502, 194, 308, 194, 536, 502, 388, 354,
468, 776, 662
],
[
548, 0, 684, 308, 194, 502, 730, 354, 696, 742, 1084, 594, 480, 674,
1016, 868, 1210
],
[
776, 684, 0, 992, 878, 502, 274, 810, 468, 742, 400, 1278, 1164,
1130, 788, 1552, 754
],
[
696, 308, 992, 0, 114, 650, 878, 502, 844, 890, 1232, 514, 628, 822,
1164, 560, 1358
],
[
582, 194, 878, 114, 0, 536, 764, 388, 730, 776, 1118, 400, 514, 708,
1050, 674, 1244
],
[
274, 502, 502, 650, 536, 0, 228, 308, 194, 240, 582, 776, 662, 628,
514, 1050, 708
],
[
502, 730, 274, 878, 764, 228, 0, 536, 194, 468, 354, 1004, 890, 856,
514, 1278, 480
],
[
194, 354, 810, 502, 388, 308, 536, 0, 342, 388, 730, 468, 354, 320,
662, 742, 856
],
[
308, 696, 468, 844, 730, 194, 194, 342, 0, 274, 388, 810, 696, 662,
320, 1084, 514
],
[
194, 742, 742, 890, 776, 240, 468, 388, 274, 0, 342, 536, 422, 388,
274, 810, 468
],
[
536, 1084, 400, 1232, 1118, 582, 354, 730, 388, 342, 0, 878, 764,
730, 388, 1152, 354
],
[
502, 594, 1278, 514, 400, 776, 1004, 468, 810, 536, 878, 0, 114,
308, 650, 274, 844
],
[
388, 480, 1164, 628, 514, 662, 890, 354, 696, 422, 764, 114, 0, 194,
536, 388, 730
],
[
354, 674, 1130, 822, 708, 628, 856, 320, 662, 388, 730, 308, 194, 0,
342, 422, 536
],
[
468, 1016, 788, 1164, 1050, 514, 514, 662, 320, 274, 388, 650, 536,
342, 0, 764, 194
],
[
776, 868, 1552, 560, 674, 1050, 1278, 742, 1084, 810, 1152, 274,
388, 422, 764, 0, 798
],
[
662, 1210, 754, 1358, 1244, 708, 480, 856, 514, 468, 354, 844, 730,
536, 194, 798, 0
],
]
data['pickups_deliveries'] = [
[1, 6],
[2, 10],
[4, 3],
[5, 9],
[7, 8],
[15, 11],
[13, 12],
[16, 14],
]
data['num_vehicles'] = 2
data['depot'] = 0
return data
def print_solution(data, manager, routing, assignment):
"""Prints assignment on console."""
total_distance = 0
for vehicle_id in range(data['num_vehicles']):
index = routing.Start(vehicle_id)
plan_output = 'Route for vehicle {}:\n'.format(vehicle_id)
route_distance = 0
while not routing.IsEnd(index):
plan_output += ' {} -> '.format(manager.IndexToNode(index))
previous_index = index
index = assignment.Value(routing.NextVar(index))
route_distance += routing.GetArcCostForVehicle(
previous_index, index, vehicle_id)
plan_output += '{}\n'.format(manager.IndexToNode(index))
plan_output += 'Distance of the route: {}m\n'.format(route_distance)
print(plan_output)
total_distance += route_distance
print('Total Distance of all routes: {}m'.format(total_distance))
def main():
"""Entry point of the program."""
# Instantiate the data problem.
data = create_data_model()
# Create the routing index manager.
manager = pywrapcp.RoutingIndexManager(len(data['distance_matrix']),
data['num_vehicles'], data['depot'])
# Create Routing Model.
routing = pywrapcp.RoutingModel(manager)
# Define cost of each arc.
def distance_callback(from_index, to_index):
"""Returns the manhattan distance between the two nodes."""
# Convert from routing variable Index to distance matrix NodeIndex.
from_node = manager.IndexToNode(from_index)
to_node = manager.IndexToNode(to_index)
return data['distance_matrix'][from_node][to_node]
transit_callback_index = routing.RegisterTransitCallback(distance_callback)
routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)
# Add Distance constraint.
dimension_name = 'Distance'
routing.AddDimension(
transit_callback_index,
0, # no slack
10000, # vehicle maximum travel distance
True, # start cumul to zero
dimension_name)
distance_dimension = routing.GetDimensionOrDie(dimension_name)
distance_dimension.SetGlobalSpanCostCoefficient(100)
# Define Transportation Requests.
for request in data['pickups_deliveries']:
pickup_index = manager.NodeToIndex(request[0])
delivery_index = manager.NodeToIndex(request[1])
routing.AddPickupAndDelivery(pickup_index, delivery_index)
routing.solver().Add(
routing.VehicleVar(pickup_index) == routing.VehicleVar(
delivery_index))
routing.solver().Add(
distance_dimension.CumulVar(pickup_index) <=
distance_dimension.CumulVar(delivery_index))
# Setting first solution heuristic.
search_parameters = pywrapcp.DefaultRoutingSearchParameters()
search_parameters.first_solution_strategy = (
routing_enums_pb2.FirstSolutionStrategy.PARALLEL_CHEAPEST_INSERTION)
# Solve the problem.
print(search_parameters)
assignment = routing.SolveWithParameters(search_parameters)
print(assignment)
# Print solution on console.
if assignment:
print_solution(data, manager, routing, assignment)
if __name__ == '__main__':
main()VRPMD(多个终点的vrp问题）
有时候会出现不同车最后要回去的车场不一样的问题。
from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp
def create_data_model():
"""Stores the data for the problem."""
data = {}
data['time_matrix'] = [
[0, 6, 7, 9, 7, 3, 6, 2, 3, 2, 6, 6, 4, 4, 5, 9, 7, 0],
[6, 0, 8, 3, 2, 6, 8, 4, 8, 8, 13, 7, 5, 8, 12, 12, 14, 6],
[7, 8, 0, 11, 10, 6, 3, 9, 5, 8, 4, 15, 14, 13, 9, 18, 9, 15],
[9, 3, 11, 0, 3, 7, 10, 6, 10, 10, 14, 6, 7, 9, 14, 6, 16, 14],
[7, 2, 10, 3, 0, 6, 9, 4, 8, 9, 13, 4, 6, 8, 12, 8, 14, 9],
[3, 6, 6, 7, 6, 0, 2, 8, 2, 2, 7, 9, 7, 7, 6, 12, 8, 3],
[6, 8, 3, 10, 9, 2, 0, 6, 2, 5, 4, 12, 10, 10, 6, 11, 5, 10],
[2, 4, 9, 6, 4, 8, 6, 0, 4, 4, 8, 5, 4, 13, 7, 8, 10, 12],
[3, 8, 5, 10, 8, 2, 2, 4, 0, 3, 4, 9, 8, 7, 3, 13, 6, 5],
[2, 8, 8, 10, 9, 2, 5, 4, 3, 0, 4, 6, 5, 4, 3, 9, 5, 8],
[6, 13, 4, 14, 13, 7, 4, 8, 4, 4, 0, 10, 9, 8, 4, 13, 4, 9],
[6, 7, 15, 6, 4, 9, 12, 5, 9, 6, 10, 0, 1, 3, 7, 13, 10, 11],
[4, 5, 14, 7, 6, 7, 10, 4, 8, 5, 9, 1, 0, 2, 16, 4, 8, 1],
[4, 8, 13, 9, 8, 7, 10, 13, 7, 4, 8, 3, 2, 0, 4, 5, 6, 2],
[5, 12, 9, 14, 12, 6, 6, 7, 3, 3, 4, 7, 16, 4, 0, 9, 12, 4],
[9, 12, 18, 6, 8, 12, 11, 8, 13, 9, 13, 13, 4, 5, 9, 0, 9, 10],
[7, 14, 9, 16, 14, 8, 5, 10, 6, 5, 4, 10, 8, 6, 12, 9, 0, 13],
[0, 6, 15, 14, 9, 3, 10, 12, 5, 8, 9, 11, 1, 2, 4, 10, 13, 0]
]
data['time_windows'] = [
(0, 22), # depot
(7, 12), # 1
(10, 15), # 2
(6, 8), # 3
(10, 13), # 4
(0, 5), # 5
(5, 10), # 6
(0, 4), # 7
(5, 7), # 8
(0, 3), # 9
(10, 16), # 10
(10, 15), # 11
(0, 9), # 12
(5, 10), # 13
(7, 10), # 14
(10, 15), # 15
(11, 15), # 16
(18, 25) # 17
]
data['num_days'] = 4
data['start'] = [0, 0, 0, 0] # ,17,0,17]
data['end'] = [17, 16, 17, 17]
return data
def print_solution(data, manager, routing, solution):
"""Prints solution on console."""
time_dimension = routing.GetDimensionOrDie('time')
max_route_distance = 0
for vehicle_id in range(data['num_days']):
index = routing.Start(vehicle_id)
plan_output = 'Route for vehicle {}:\n'.format(vehicle_id)
route_distance = 0
while not routing.IsEnd(index):
time_var = time_dimension.CumulVar(index)
plan_output += ' {0} ({1}-{2})'.format(manager.IndexToNode(index),
solution.Min(time_var),
solution.Max(time_var))
previous_index = index
index = solution.Value(routing.NextVar(index))
route_distance += routing.GetArcCostForVehicle(
previous_index, index, vehicle_id)
plan_output += '{0} ({1}-{2}) \n'.format(manager.IndexToNode(index),
solution.Min(time_var),
solution.Max(time_var))
plan_output += 'Distance of the route: {}m\n'.format(route_distance)
print(plan_output)
max_route_distance = max(route_distance, max_route_distance)
print('Maximum of the route distances: {}m'.format(max_route_distance))
def main():
"""Entry point of the program."""
# Instantiate the data problem.
data = create_data_model()
# Create the routing index manager.
manager = pywrapcp.RoutingIndexManager(len(data['time_matrix']), data['num_days'], data['start'], data['end'])
# Create Routing Model.
routing = pywrapcp.RoutingModel(manager)
# Create and register a transit callback.
def time_callback(from_index, to_index):
"""Returns the distance between the two nodes."""
# Convert from routing variable Index to distance matrix NodeIndex.
from_node = manager.IndexToNode(from_index)
to_node = manager.IndexToNode(to_index)
return data['time_matrix'][from_node][to_node]
transit_callback_index = routing.RegisterTransitCallback(time_callback)
# Define cost of each arc.
routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)
# Add time constraint.
dimension_name = 'time'
routing.AddDimension(
transit_callback_index,
20, # no slack
300, # vehicle maximum travel distance
True, # start cumul to zero
dimension_name)
time_dimension = routing.GetDimensionOrDie(dimension_name)
# add time window constraints
time_dimension.SetGlobalSpanCostCoefficient(100)
# Setting first solution heuristic.
search_parameters = pywrapcp.DefaultRoutingSearchParameters()
search_parameters.first_solution_strategy = (
routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC)
# Solve the problem.
solution = routing.SolveWithParameters(search_parameters)
# Print solution on console.
if solution:
print_solution(data, manager, routing, solution)
if __name__ == '__main__':
main()vrpno（有新订单的vrp问题）
from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp
def print_solution(manager, routing, solution):
"""Prints solution on console."""
#objective
print(f'Objective: {solution.ObjectiveValue()}')
# Display dropped nodes.
dropped_nodes = 'Dropped nodes:'
for node in range(routing.Size()):
if routing.IsStart(node) or routing.IsEnd(node):
continue
if solution.Value(routing.NextVar(node)) == node:
dropped_nodes += f'{manager.IndexToNode(node)} '
print(dropped_nodes)
# Display routes
capacity_dimension = routing.GetDimensionOrDie('Capacity')
for vehicle_id in range(manager.GetNumberOfVehicles()):
index = routing.Start(vehicle_id)
plan_output = f'Route for vehicle {vehicle_id}:\n'
route_distance = 0
while not routing.IsEnd(index):
node_index = manager.IndexToNode(index)
load_var = capacity_dimension.CumulVar(index)
route_load = solution.Value(load_var)
plan_output += f' {node_index} Load({route_load}) -> '
previous_index = index
index = solution.Value(routing.NextVar(index))
route_distance += routing.GetArcCostForVehicle(previous_index, index, vehicle_id)
node_index = manager.IndexToNode(index)
load_var = capacity_dimension.CumulVar(index)
route_load = solution.Value(load_var)
plan_output += f' {node_index} Load({route_load})\n'
plan_output += f'Distance of the route: {route_distance}m\n'
print(plan_output)
def main():
"""Solve the CVRP problem."""
distance_matrix = [
[ 1, 1, 1, 1, 1, 1, 1 ],
[ 1, 1, 1, 1, 1, 1, 1 ],
[ 1, 1, 1, 1, 1, 1, 1 ],
[ 1, 1, 1, 1, 1, 1, 1 ],
[ 1, 1, 1, 1, 1, 1, 1 ],
[ 1, 1, 1, 1, 1, 1, 1 ],
[ 1, 1, 1, 1, 1, 1, 1 ],
]
demands = [
0, # Start position
-1, # order 1
-1, # order 2
-1, # order 3
-1, # order 4
1, # new order pickup location
-1 # new order delivery location
]
assert len(distance_matrix) == len(demands)
# Create the routing index manager.
manager = pywrapcp.RoutingIndexManager(
len(demands), # number of locations (start, order, depots)
1, # number of vehicle
0) # start location idx
# Create Routing Model.
routing = pywrapcp.RoutingModel(manager)
# Create and register a transit callback.
def distance_callback(from_index, to_index):
"""Returns the distance between the two nodes."""
# Convert from routing variable Index to distance matrix NodeIndex.
from_node = manager.IndexToNode(from_index)
to_node = manager.IndexToNode(to_index)
return distance_matrix[from_node][to_node]
transit_callback_index = routing.RegisterTransitCallback(distance_callback)
# Define cost of each arc.
routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)
# Add Distance constraint.
distance = 'Distance'
routing.AddDimension(
transit_callback_index,
0, # no slack
100, # vehicle maximum travel distance
True, # start cumul to zero
distance)
distance_dimension = routing.GetDimensionOrDie(distance)
#distance_dimension.SetGlobalSpanCostCoefficient(100)
#------------------- CAPACITY ----------
# Add Capacity constraint.
def demand_callback(from_index):
"""Returns the demand of the node."""
# Convert from routing variable Index to demands NodeIndex.
from_node = manager.IndexToNode(from_index)
return demands[from_node]
demand_callback_index = routing.RegisterUnaryTransitCallback(demand_callback)
capacity = 'Capacity'
routing.AddDimensionWithVehicleCapacity(
demand_callback_index,
0, # null capacity slack
[8], # vehicle maximum capacities
False, # start cumul to zero
capacity)
capacity_dimension = routing.GetDimensionOrDie(capacity)
# 4 Orders already loaded
index = routing.Start(0)
capacity_dimension.CumulVar(index).SetValue(4)
# Add new pickup and delivery order (5 -> 6)
pickup_index = manager.NodeToIndex(5)
delivery_index = manager.NodeToIndex(6)
routing.AddPickupAndDelivery(pickup_index, delivery_index)
routing.solver().Add(
routing.VehicleVar(pickup_index) == routing.VehicleVar(delivery_index))
routing.solver().Add(
distance_dimension.CumulVar(pickup_index) <=
distance_dimension.CumulVar(delivery_index))
routing.AddDisjunction(
[5,6],
100_000, # high penalty so solver has strong incentive to add it
2) # max cardinality
# Initial route (Without start and end)
# notice new pickup and delivery are dropped
initial_routes = [[1, 2, 3, 4]]
# Setting first solution heuristic.
search_parameters = pywrapcp.DefaultRoutingSearchParameters()
search_parameters.first_solution_strategy = (
routing_enums_pb2.FirstSolutionStrategy.PARALLEL_CHEAPEST_INSERTION)
#search_parameters.first_solution_strategy = (
# routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC)
search_parameters.local_search_metaheuristic = (
routing_enums_pb2.LocalSearchMetaheuristic.GUIDED_LOCAL_SEARCH)
search_parameters.time_limit.FromSeconds(2)
# search_parameters.log_search = True
routing.CloseModelWithParameters(search_parameters)
# ReadAssignmentFromRoutes will close the model...
initial_solution = routing.ReadAssignmentFromRoutes(initial_routes, True)
print('Initial solution:')
print_solution(manager, routing, initial_solution)
# Solve the problem.
solution = routing.SolveFromAssignmentWithParameters(initial_solution, search_parameters)
#solution = routing.SolveWithParameters(search_parameters)
# Print solution on console.
if solution:
print_solution(manager, routing, solution)
else:
print(solution)
if __name__ == '__main__':
main()有时候会有临时订单，以上5和6是新增的取货和送货订单。该订单增加后，会生成新的线路；不增加放在dropped项目中，不进行编排。
总结
实际业务场景往往是多种场景的集合体，很难用某一个特定的模型去解决业务问题。
因此实际业务落地需要算法工程师对业务场景有较深的理解、并把业务模型融合成一个整体、再进行建模求解。
