1.什么是impala？

Impala是Cloudera公司主导开发的新型查询系统，它提供SQL语义，能查询存储在Hadoop的HDFS和HBase中的PB级大数据。已有的Hive系统虽然也提供了SQL语义，但由于Hive底层执行使用的是MapReduce引擎，仍然是一个批处理过程，难以满足查询的交互性。相比之下，Impala的最大特点也是最大卖点就是它的快速。

Impala组成

客户端：包括JDBC、ODBC、Hue、Impala Shell等，用于执行查询或完成管理任务；
Hive Metastore：存储可用于Impala数据的信息，包括可用数据库及其结构。当执行Impala Sql语句进行schema对象的创建、修改及删除，或加载数据到表中等操作时，相关元数据的变化，通过单独的catalog服务自动广播到所有Impala节点；
Cloudera Impala（Impalad进程）：运行于数据节点的Impala程序，用于协调和执行查询。每一个Impala的实例可以获取、解析以及协调Impala客户端传来的查询。查询是被分布到各Impala节点间，这些节点作为workers，并行执行查询片段；
HDFS、HBase、kudu：数据的实际存储位置。

impala查询执处理过程

用户程序通过JDBC、ODBC、Impala Shell等Impala 客户端发送Sql语句给Impala；
用户程序连接到集群中任意Impalad进程，这一进程作为整个查询的协调器；
Impala解析、分析查询，确定哪些任务由集群中哪一Impalad实例执行，并生成最优执行计划；
Impalad实例访问对应HDFS、HBase服务，获取数据；
每一个Impalad实例将数据返回给协调器Impalad，由其发送结果给客户端。

2.环境准备

install kudu

详见代码仓库kudu模块里面的docker目录

install impala

docker run -d --name kudu-impala --add-host  kudu-master-1:{ip} --add-host  kudu-master-2:{ip} --add-host  kudu-master-3:{ip} -p 21000:21000 -p 21050:21050 -p 25000:25000 -p 25010:25010 -p 25020:25020   --memory=4096m apache/kudu:impala-latest impala

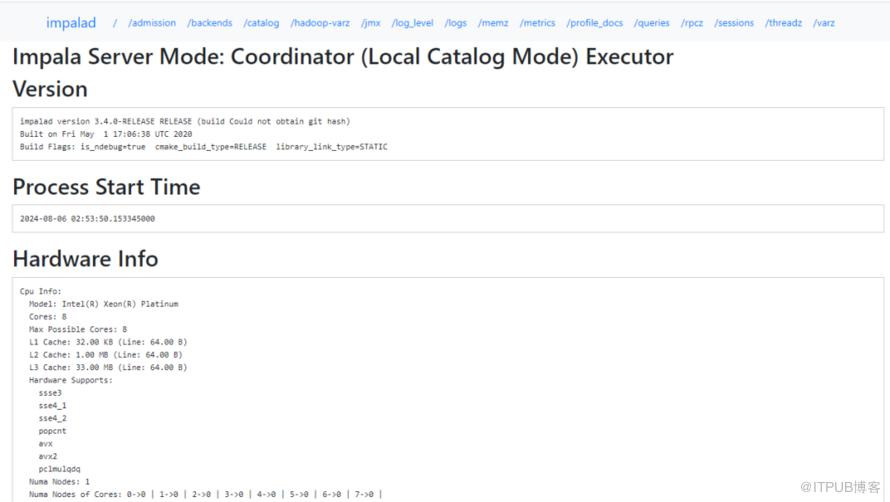

需要注意增加主机映射关系，不然impala找不带kudu的机器。访问http://127.0.0.1:25000/

run impala-shell

docker exec -it kudu-impala impala-shell

Create a Kudu Table

Now that you are in an impala-shell that is connected to Impala you can use an Impala DDL statement to create a Kudu table.

CREATE TABLE my_first_table(id BIGINT,name STRING,PRIMARY KEY(id))PARTITION BY HASH PARTITIONS 4STORED AS KUDU;
DESCRIBE my_first_table;

Insert and Modify Data

With my_first_table created you can now use Impala DML statements to INSERT, UPDATE, UPSERT, and DELETE data.


-- Insert a row.INSERT INTO my_first_table VALUES (99, "sarah");SELECT * FROM my_first_table;
-- Insert multiple rows.INSERT INTO my_first_table VALUES (1, "john"), (2, "jane"), (3, "jim");SELECT * FROM my_first_table;
-- Update a row.UPDATE my_first_table SET name="bob" where id = 3;SELECT * FROM my_first_table;
-- Use upsert to insert a new row and update another.UPSERT INTO my_first_table VALUES (3, "bobby"), (4, "grant");SELECT * FROM my_first_table;
-- Delete a row.DELETE FROM my_first_table WHERE id = 99;SELECT * FROM my_first_table;
-- Delete multiple rows.DELETE FROM my_first_table WHERE id < 3;SELECT * FROM my_first_table;

install hue

docker run -it -p 8888:8888 gethue/hue:latest

拷贝配置文件出来

docker cpb72dfc588c76:/usr/share/hue/desktop/conf/z-hue-overrides.ini ./z-hue-overrides.ini

编辑文件内容

[[database]]engine=mysqlhost=xxx.xxx.xxx.xxxport=3306user=xxxpassword=xxxname=database
[impala]server_host=xxx.xxx.xxx.xxxserver_port=21050

将修改好的文件放回去

docker cp./z-hue-overrides.ini b72dfc588c76:/usr/share/hue/desktop/conf/z-hue-overrides.ini

重启

docker stop ${container_id}docker start ${container_id}

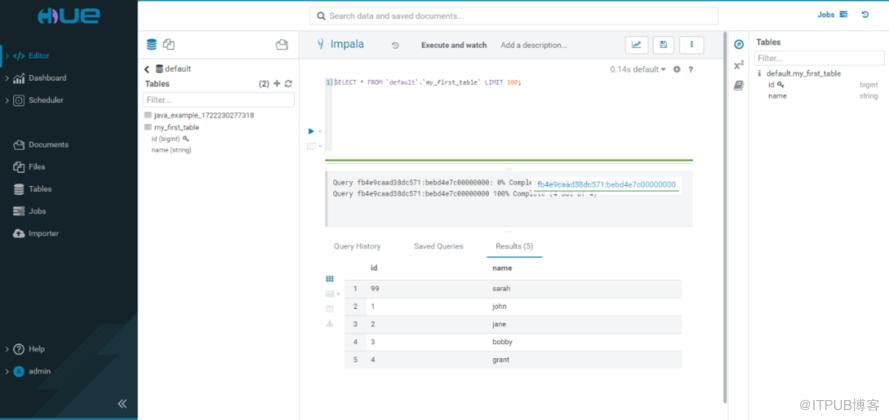

访问http://127.0.0.1:8888/

3.代码工程

实验目标

实现JDBC访问impala

pom.xml

因为ImpalaJDBC41是由Cloudera维护的，而且包并没有上传到maven仓库，所以只能去他官网下载 Cloudera’s official Connector site.然后本地引入


xml version="1.0" encoding="UTF-8"?>         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">            org.springframework.boot        spring-boot-starter-parent        3.2.1        4.0.0
    impala
            17        17                            org.springframework.boot            spring-boot-starter-web
                    org.springframework.boot            spring-boot-autoconfigure                            org.springframework.boot            spring-boot-starter-test            test                            com.cloudera.impala.jdbc            ImpalaJDBC41            2.6.4.1005            system            ${project.basedir}/src/lib/ImpalaJDBC41.jar

测试类

使用datasource方法

DataSource ds =new com.cloudera.impala.jdbc41.DataSource();ds.setURL(<CONNECTION_URL>);connection = ds.getConnection();

直连方式

String IMPALA_URL="jdbc:impala://:21050/"Connection connection = DriverManager.getConnection(IMPALA_URL);

详细类

package com.et.impala;
import com.cloudera.impala.jdbc41.DataSource;
import java.sql.Connection;import java.sql.DriverManager;import java.sql.ResultSet;import java.sql.Statement;import java.util.Properties;
public class ImpalaTest {    public static void main(String[] args) {        Connection connection = null;        Statement statement = null;        ResultSet resultSet = null;
        try {            Class.forName("com.cloudera.impala.jdbc41.Driver");            Properties p = new Properties();            p.setProperty( "user", "System" );            p.setProperty( "password", "Hyd20240531" );            p.setProperty( "latency", "0" );            p.setProperty( "communicationtimeout", "0" );            String currentschema = "default";            String url = "jdbc:impala://172.24.4.35:21050/"+currentschema;            //DataSource            DataSource ds = new com.cloudera.impala.jdbc41.DataSource();            ds.setURL(url);            connection = ds.getConnection();            //don't use DataSource            //connection = DriverManager.getConnection( url, p );
            System.out.println("Schema: " + connection.getSchema());
            String sqlQuery = "SELECT * FROM my_first_table";
            statement = connection.createStatement();
            resultSet = statement.executeQuery(sqlQuery);
            while (resultSet.next()) {                int column1 = resultSet.getInt("id");                String column2 = resultSet.getString("name");                System.out.println("id: " + column1 + ", name: " + column2);            }        } catch (Exception e) {            e.printStackTrace();        } finally {            try {                if (resultSet != null) {                    resultSet.close();                }                if (statement != null) {                    statement.close();                }                if (connection != null) {                    connection.close();                }            } catch (Exception e) {                e.printStackTrace();            }        }    }}

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo(impala）

4.测试

运行测试类main方法

Schema: id: 99, name: sarahid: 1, name: johnid: 2, name: janeid: 3, name: bobbyid: 4, name: grant

5.引用

https://tech-spaghetti.com/2019/01/27/jdbc-connection-to-impala/
https://www.cloudera.com/downloads/connectors/impala/jdbc/2-6-4.html
